Connecting to a Home Theater System with
Component (YPbPr) Connectors

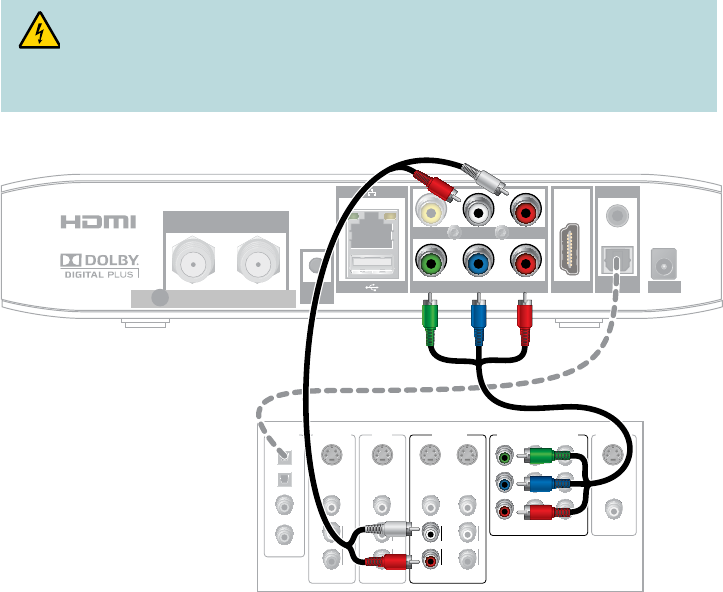

Cables Used in this Conguration
• 1ComponentVideoCable(YPbPr)
• 1AudioLeft/RightCable(Youcanalsouseanopticalcable[indicatedbythedotted
line]insteadoftheAudioLeft/RightCableasshowninthediagram.)
Notes:
•Thisconnectionrequiresthataudioisprovidedbythehometheatersystem.
•Consulttheuserguidethatcamewithyourhometheatersystemforinformationon
connecting your other video and audio devices.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
