User's Manual

18

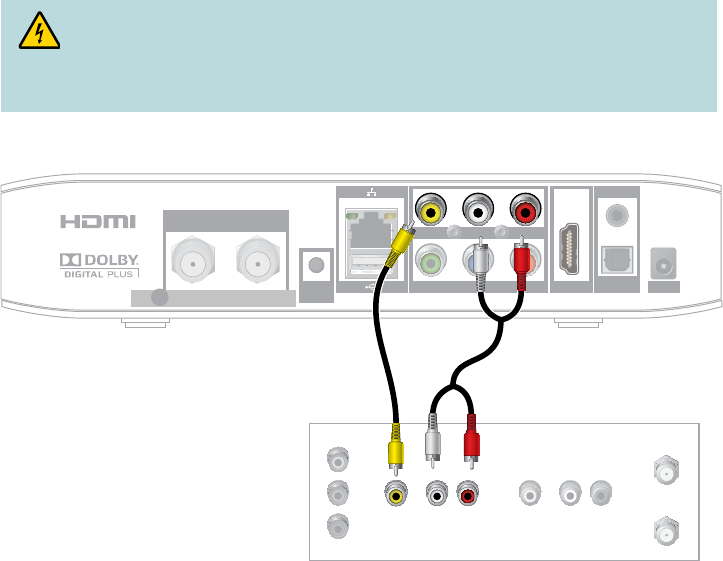

Connecting to an SDTV with an RCA-Type Connector
Cables Used in this Conguration
• 1RCA-typeVideoCable
• 1AudioLeft/RightCable
T16507
Back of Set-Top
HIGH DEFINITION MULTIMEDIA INTERFACE
TM
CABLE IN CABLE OUT
CABLE IN
VIDEO OUT
Y
AUDIO LEFT
Pb
HDMI POWER
AUDIO RIGHT
Pr
IR REMOTE INPUT
OPTICAL
AUDIO OUT
Back of
SDTV
CABLE OUT/
ANT OUT
RL
AUDIO
IN
VIDEO
IN
RL
AUDIO
OUT
VIDEO
OUT
Y
PB
PR
CABLE IN/
ANT IN
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
