User's Manual

16

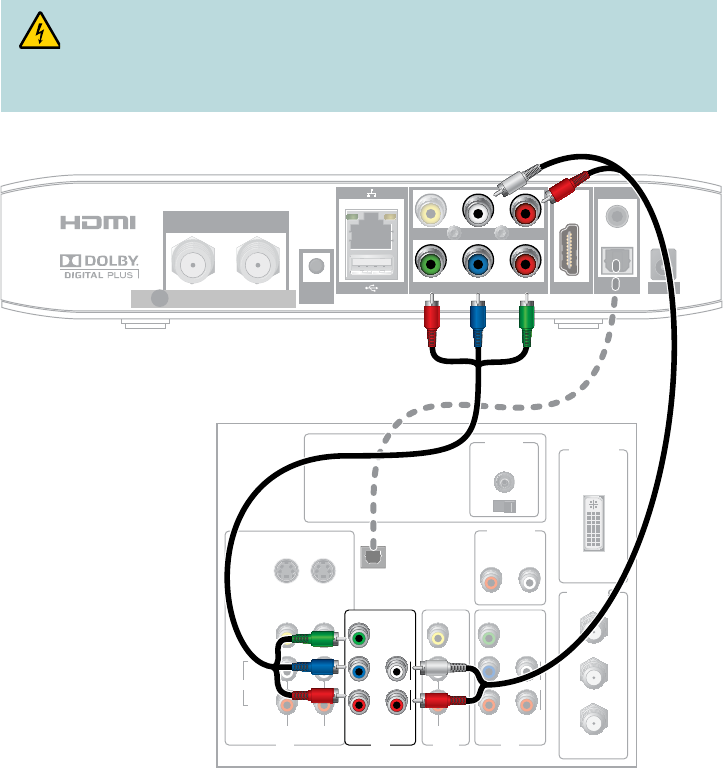

Connecting to an HDTV with Component (YPbPr)
Connectors
Cables Used in this Conguration
• 1ComponentVideoCable(YPbPr)
• 1AudioLeft/RightCable(Youcanalsouseanopticalcable[indicatedbythedotted
line]insteadoftheAudioLeft/RightCableasshowninthediagram,dependentupon
your TV’s capabilities.)
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
T16505
Back of Set-Top
HIGH DEFINITION MULTIMEDIA INTERFACE
TM
CABLE IN CABLE OUT
CABLE IN
VIDEO OUT
Y
AUDIO LEFT
Pb
HDMI POWER
AUDIO RIGHT
Pr
IR REMOTE INPUT
OPTICAL
AUDIO OUT
Back of
HDTV
OPTICAL
INPUT
DVI/HDCP
IN
AUDIO
CENTER
CHANNEL IN
AUDIO IN
DVI/HDCP
ANT (75 )
INOUT
LR
ANT-1
HD 2
Y
OUT
ANT-2
PB
PR
L
R
VIDEO
L/
MONO
R
L/
MONO
R
AUDIO
IN
ON OFF
IN
HD 1
S-VIDEO
VIDEO
Y
PB
PR
L
R
AUDIOAUDIO
OR
