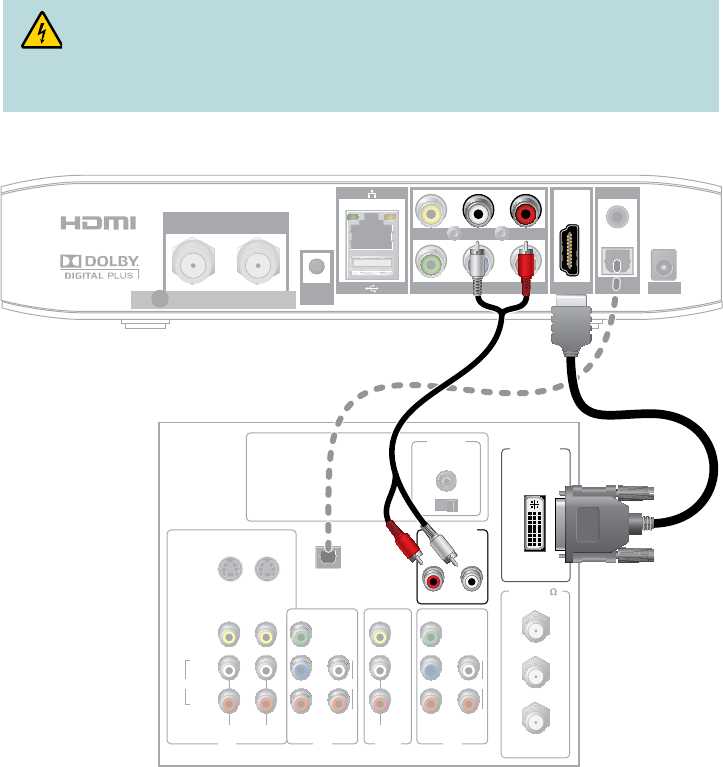

Connecting to an HDTV with a DVI Connector
Cables Used in this Conguration
• 1HDMI-to-DVICableor 1 HDMI Cable and 1 HDMI-to-DVI Adapter
• 1AudioLeft/RightCable(Youcanalsouseanopticalcable[indicatedbythedotted
line]insteadoftheAudioLeft/RightCableasshowninthediagram,dependentupon
your TV’s capabilities.)
Notes:
• TheDVIportontheTVmustsupporthigh-bandwidthdigitalcontentprotection(HDCP).
• WhenyouconnecttheHDMIconnectortotheDVIconnectoronyourHDTV,youneed
an HDMI-to-DVI adapter and a separate audio connection.
WARNING:
Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the receiver.
