3 of 38
ISSUED: 11-26-07 SHEET #: 202-9256-6 04-05-11
EE
FF
DD
AA BB CC

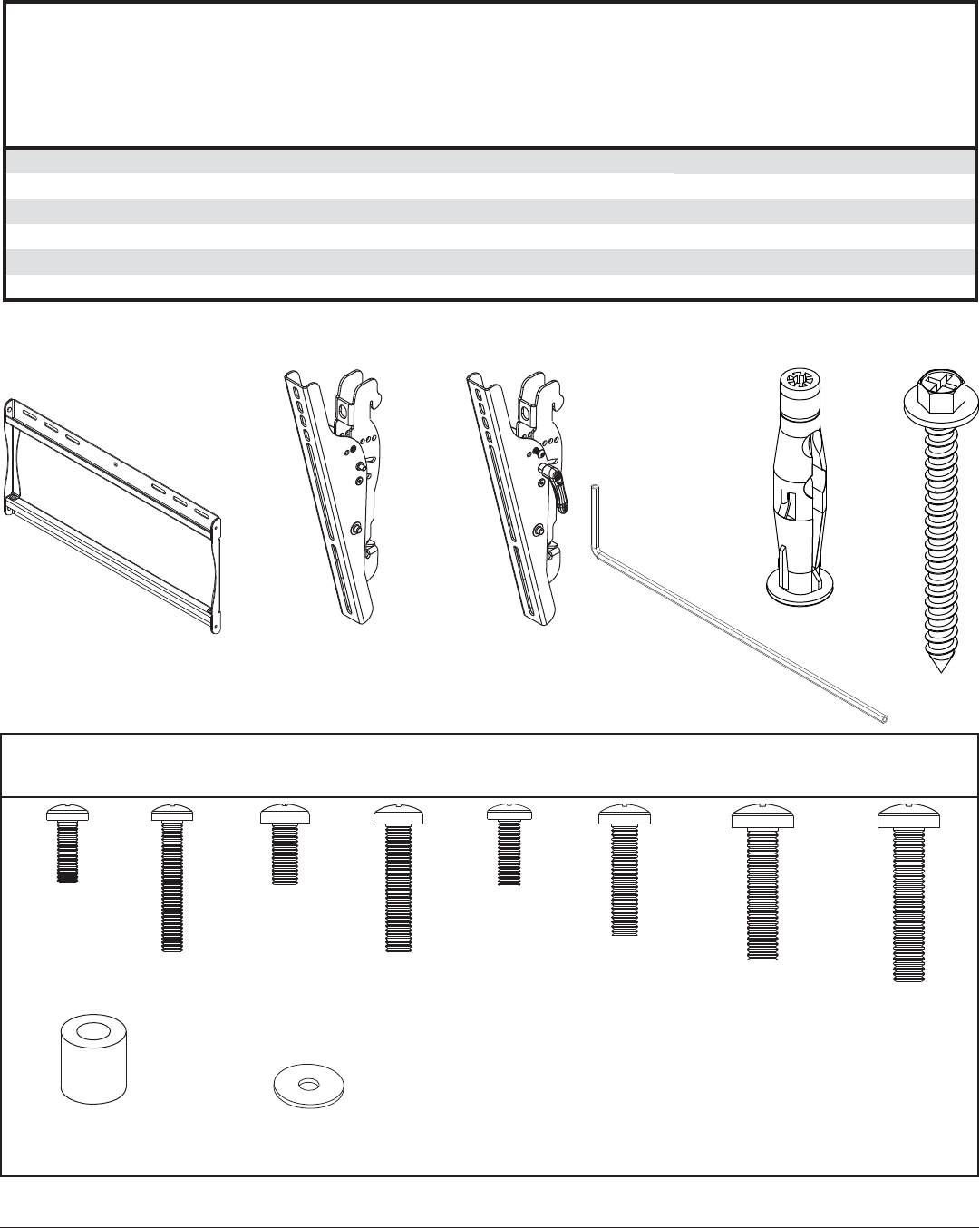

Parts may appear slightly different than illustrated.
Before you begin, make sure all parts shown are included with your product.
Non-Security Tilt Bracket Fasteners
Parts List
ST640
ST640-S
SWS221/BK
D-FPT-220
RTFPT-220
RTFPT-220I
ST640P
SWS221/SI
D-FPT-220S
RTFPT-220S
RTFPT-220SI
ST640P-S
Description Qty.
Part Number Part Number Part Number Part Number
AA wall plate 1
201-1505 201-4505 201-1505 201-4505
BB right tilt bracket 1 201-1468 201-4468 201-1467 201-4467
CC left tilt bracket 1 201-1466 201-4466 201-1465 201-4465
DD #14 x 2.5" wood screw 4 5S1-015-C03 5S1-015-C03 5S1-015-C03 5S1-015-C03
EE concrete anchor 4 590-0320 590-0320 590-0320 590-0320
FF 4 mm allen wrench 1 560-1131 560-1131 (not included) (not included)
M4 x 12mm (4)
(504-9013)
M6 x 25mm (4)
(520-1208)
M4 x 25mm (4)
(504-1015)
M5 x 25mm (4)
(520-9543)
M6 x 12mm (4)
(520-1128)
M5 x 12mm (4)
(520-1027)
M6 x 20mm (4)
(520-9402)
M6 x 30mm (4)
(510-9109)
.048" washer (4)
(540-1040)
.5" spacer (4)
(540-1058)
