manual

4
2014-01-29 #:120-9185-2 (2014-04-08)
Parts (Before beginning, make sure you have all parts shown below).
Piezas (antes de iniciar, asegúrese de tener todas las piezas siguientes).
Pièces (avant de commencer, assurez-vous d’avoir toutes les pièces illustrées ci-dessous).
Teile (Achten Sie vor Beginn der Arbeiten darauf, dass alle unten abgebildeten Teile vorhanden sind).
Onderdelen (hoort u zich ervan te overtuigen dat u alle onderdelen hebt, die hieronder te zien zijn).
Parti (prima di iniziare, accertarsi di disporre tutte le parti sotto indicate).
Díly (předtím, než začnete, připravte si všechny díly zobrazené níže).
Diely (predtým, ako začnete, pripravte si všetky diely zobrazené nižšie).
Peças (antes de iniciar, certifi que-se de que tem todas as peças apresentadas em baixo).
Parçalar (Başlamadan önce, aşağıda gösterilen bütün parçaların elinizde olduğundan emin olun).
ENG
ESP
FRN
DEU
NEL
ITL
ČEŠ
SLK
POR
TÜR

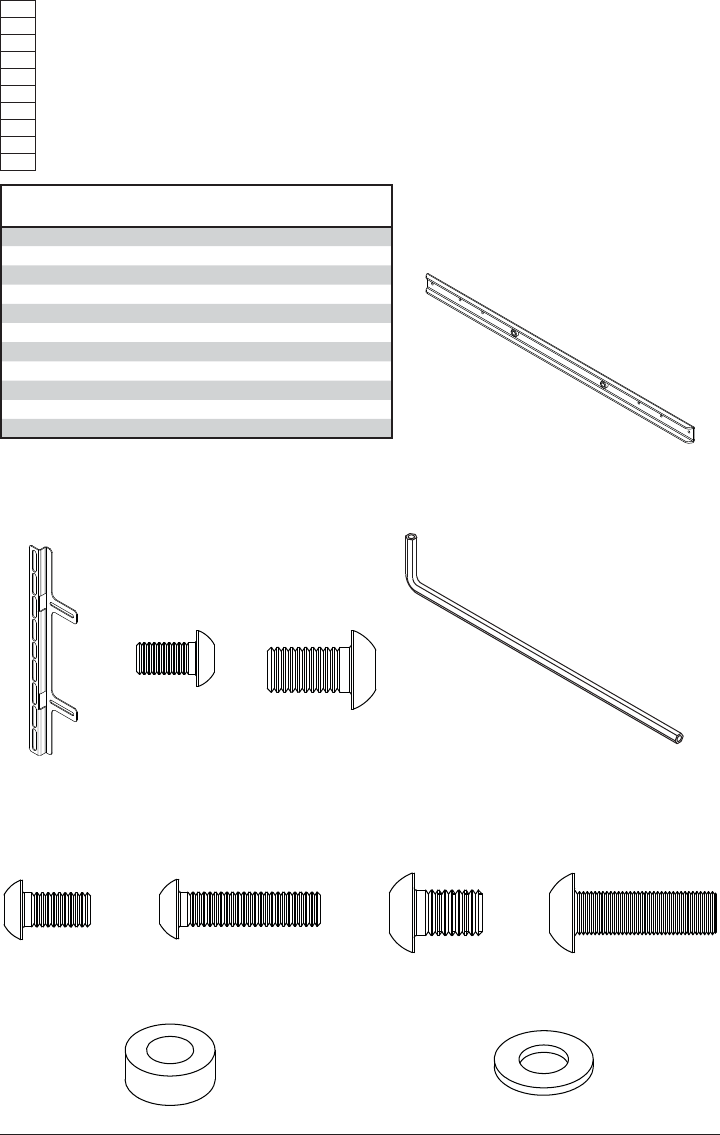

Parts List
MOD-UNL2
Part #Description Qty
A horizontal rail 2 100-1085
B vertical rail 2 100-1087
C M5 x 10mm self-tapping screw 4 520-1164
D M8 x 15mm screw bolt 4 520-1068
E 4mm allen wrench 1 560-9646
AA M6 x 12mm screw 4 520-1050
BB M6 x 25mm screw 4 520-1211
CC M8 x 12mm screw 4 520-1724
DD M8 x 25mm screw 4 520-1101
EE spacer 8 600-1215
FF M6/M8 washer 8 540-9406
A
(
2
)
horizontal rail
B
(
2
)
vertical rail
C
(
4
)
M5 x 10mm
D
(
4
)
M8 x 15mm
E
(
1
)
4mm allen wrench
EE
(
8
)
spacer
FF
(
8
)
M6/M8 washer
AA
(
4
)
M6 x 12mm
DD
(
4
)
M8 x 25mm
BB
(
4
)
M6 x 25mm
CC
(
4
)
M8 x 12mm
