User guide

WL-AU-PST600(-W) Wireless Short Throw Projector AV System with arm length up to 24.93" (633mm)
WL-AU-PST1200(-W) Wireless Short Throw Projector AV System with arm length up to 48.55" (1233mm)
WL-AU-PST1600(-W) Wireless Short Throw Projector AV System with arm length up to 64.31" (1633mm)
Wireless Range 131ft (40m)
Video Input (Transmitter) 2 x HDMI up to 1080p (60Hz), 1920x1080
1 x Composite
1 x YPbPr Component
Video Output (Receiver) 1 x HDMI up to 1080p (60Hz), 1920x1080
1 x Composite
1 x YPbPr Component
Audio 2 Ch. Linear PCM, Analog, 48kHz 16-bit ADC
Audio Input 1 x 3.5mm Audio Jack (Transmitter)
Audio Output 1 x 3.5mm Audio Jack (Receiver)
WiFi Frequency 5.15-5.25GHz
Latency < 30ms Latency
Power Voltage: 120V AC, 60Hz; Consumption: 12V DC, 2A
Part Number WL-AU-PST600(-W)
WL-AU-PST1200(-W)
WL-AU-PST1600(-W)
Product Weight WL-AU-PST600(-W) 43.00lb (19.50kg)
WL-AU-PST1200(-W) 46.50lb (21.09kg)
WL-AU-PST1600(-W) 48.00lb (21.77kg)

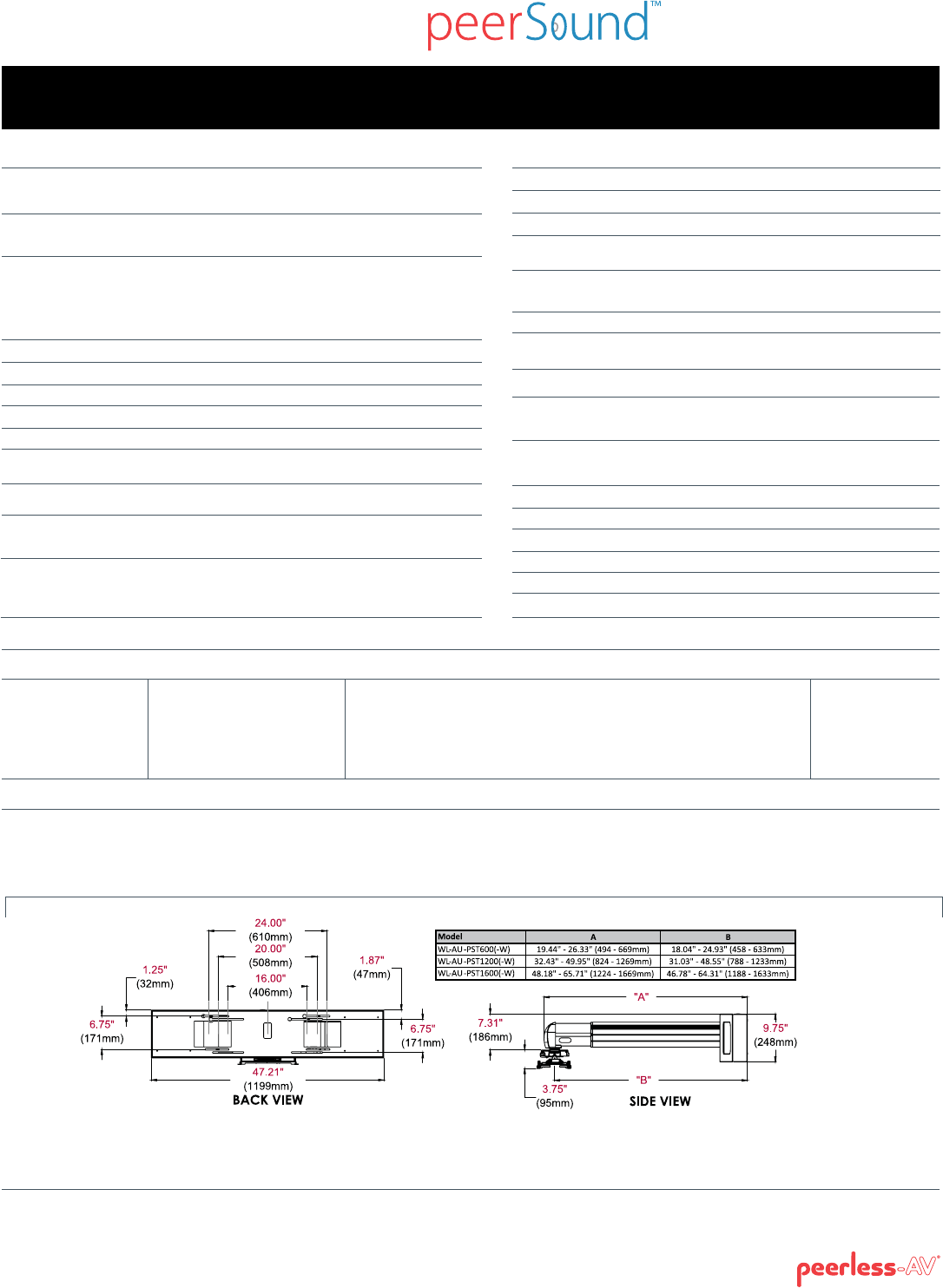

Dimensions (W x H x D) WL-AU-PST600(-W) 47.21" x 11.06" x 19.44"-26.33"
(1199 x 281 x 494-669mm)
WL-AU-PST1200(-W) 47.21" x 11.06" x 32.43"-49.95"
(1199 x 281 x 824-1269mm)
WL-AU-PST1600(-W) 47.21" x 11.06" x 48.18"-65.71"
(1199 x 281 x 1224-1669mm)
Max Projector Load 25lb (11.3kg)
Universal Projector Mounting Pattern Up to 17.63" (448mm)
Tilt ±20°
Roll ±10°
Swivel 360°
Color WL-AU-PST600/-PST1200/-PST1600 Black
WL-AU-PST600-W/-PST1200-W/-PST1600-W White
Mounting Surfaces Wood stud, metal stud, concrete and other structures
(Other structures require accessory)
Product Specifications
PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
WL-AU-PST600
WL-AU-PST600-W
WL-AU-PST1200
WL-AU-PST1200-W
WL-AU-PST1600
WL-AU-PST1600-W
735029292197
735029292203
735029292210
735029292227
735029292234
735029292241
· Wall enclosure with integrated speakers
· Wall enclosure cover
· Short throw arm
· Short throw arm cover
· PRG-UNV Precision Gear Projector Mount
· HD Flow™ Pro Wireless Multimedia Kit
· Amplier
· 3 x Security brackets for electronics
· Storage cubby cover
· HDMI cable 6.6' (2m)
· 3.5mm audio cable
· 6-plug surge protector
· Assembly and installation hardware
· Assembly and installation instructions
· Installation template
1
Package Specifications
Accessories
LIT-0845 rev.2
HD Flow
TM
Pro Wireless Multimedia Kit Specifications
Power rating 25W x 2 RMS class-D amplier
Inputs 3.5mm Auxiliary jack, 3.5mm microphone jack
Outputs Bridgeable stereo speaker jacks
Volume Control Wireless IR remote control with 3-foot IR extender
Onboard volume control
Audio controls Base, treble, balance adjustments
Input gain adjustment
Stereo / bridge mono switch
Power source Voltage: 120V AC, 60Hz; Consumption: 24V DC, 2A
ACC020: Projector security cable
HDS-ASE: Security Enclosure for HD Flow™ Pro Wireless Transmitter
HDS200-R: HD Flow™ Pro Wireless Multimedia Receiver
DE-HD0075B: Peerless-AV Delta 2.5ft (.75m) Premium High Speed HDMI Cable with Ethernet
DE-HD01B: Peerless-AV Delta 3.3ft (1m) Premium High Speed HDMI Cable with Ethernet
DE-HD02: Peerless-AV Delta 6.6ft (2m) Premium High Speed HDMI Cable with Ethernet
DE-HD03: Peerless-AV Delta 9.8ft (3m) Premium High Speed HDMI Cable with Ethernet
Amplifier Specifications
Speaker 5-1/4" 2-way speakers with 35W maximum power handling
1" post tweeters
60Hz to 20kHz frequency response
86 dB sensitivity
Speaker Specifications
Additional AV and Sound Cable selection available, visit peerless-av.com
Visit peerless-av.com to see the complete line of AV solutions from Peerless-AV, including wireless devices, interactive devices,
at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
© 2012 Peerless Industries, Inc. All rights reserved. Peerless-AV
®
is a registered trademark and PeerSound
TM
is trademark of
Peerless Industries, Inc. HD Flow is a trademark of I Do It, LTD. Other parties’ marks are the property of their respective owners.
A R C H I T E C T S S P E C I F I C A T I O N S
The Wireless Short Throw Projector AV System shall be a Peerless-AV model WL-AU-PSTA600/1200/1600(-W) and shall be located where indicated on the plans.
Assembly and installation shall be done according to instructions provided by the manufacturer.
