User Manual

PACKAGE SIZE (L x W x H) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS
UNITS IN
PACKAGE
KL546-S
51.25" x 32.0" x 11.5"
(1302 x 813 x 292mm)
143lb (65kg) 735029283287
Base, legs, top, adapter
rails and mounting
hardware
One (1)
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
KL546-S
47.0" x 55.58" x 23.98"
(1194 x 1412 x 609mm)
133lb (60kg) 75lb (34kg) Powder Coat Silver
Product Specifications
Model Numbers
WARRANTY: Limited 5-year
A R C H I T E C T S S P E C I F I C A T I O N S
The Indoor Digital Signage/Kiosk Enclosure – Landscape shall be a Peerless-AV model KL546-S and shall be located where indicated on the plans.
Assembly and installation shall be done according to instructions provided by the manufacturer.
All dimensions = inch (mm)
LIT-0807 rev.1
KL546-S Indoor Digital Signage/Kiosk Enclosure – Landscape; Fits most 46" Ultra-thin LCD Displays
Package Specifications
Accessories
ACC-F100: Cooling fan
ACC-MS46: Large media storage attachment
Visit www.peerless-av.com to see the complete line of AV solutions from Peerless-AV, including at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
© 2012 Peerless Industries, Inc. Peerless-AV™ is a trademark of Peerless Industries, Inc. All rights reserved.
Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  [phone]  [phone]  Fax: [phone]  peerless-av.com
7.87"
(200mm)
11.81"
(300mm)

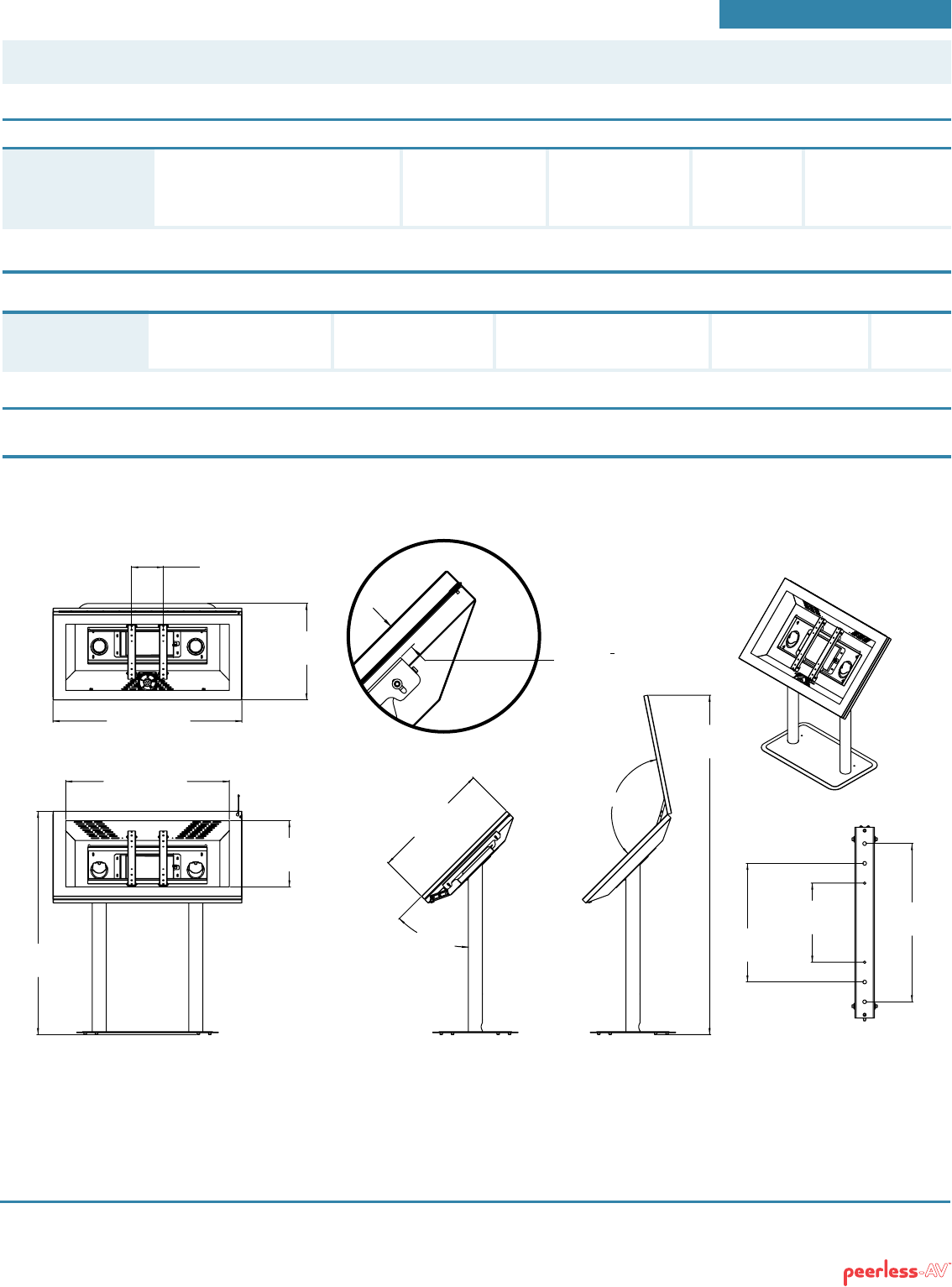

FRONT
