Installation Manual

ISSUED: 03-11-11 SHEET #: 125-9196-1

1 of 3

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112.

Models: HDS-S

Installation and Assembly:

B C D E

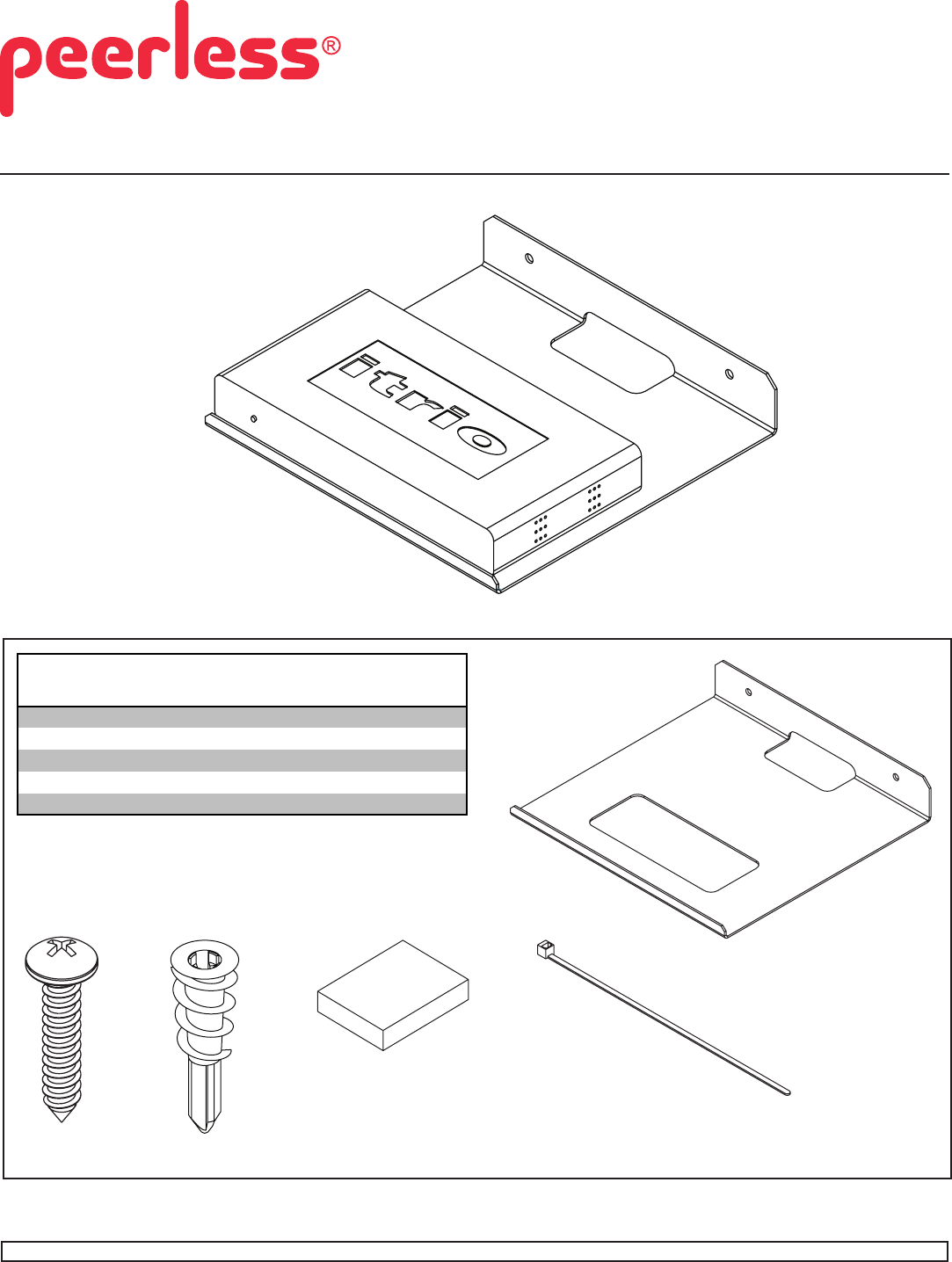

PARTS LIST

Description Qty. Part #

wall shelf 1 009-P1329

B #8 x 1" phillips head screw 2 520-0671

C drywall anchor 2 590-2107

D rubber pad 3 590-1159

E cable tie 2 560-9711

PAGE 1
Installation and Assembly: Models: HDS-S PARTS LIST A B C D E Description wall shelf #8 x 1" phillips head screw drywall anchor rubber pad cable tie B C Qty. 1 2 2 3 2 A Part # 009-P1329 520-0671 590-2107 590-1159 560-9711 D E 1 of 3 Visit the Peerless Web Site at www.peerlessmounts.com ISSUED: 03-11-11 SHEET #: 125-9196-1 For customer care call 1-800-865-2112.
PAGE 2
Installation to Drywall WARNING • Drywall must be 1/2" or thicker. • Make sure that the wall will safely support the combined load of the equipment and all attached hardware and components. • Using a power drill to secure anchors may cause anchors to fail. 1 NOTE: Flange on wall shelf faces upward. Using wall shelf (A) as a template, mark the center of the two mounting holes. Using a phillips screwdriver, install two anchors (C) into drywall as shown below.
PAGE 3
2 NOTE: Rubber pads must be in orientation as shown in detail 1. Place three rubber pads (D) onto top surface of wall shelf in orientation as shown in detail 1. ALIGN RUBBER PADS (D) WITH OPENING IN WALL SHELF (A) D TOP A ALIGN RUBBER PADS (D) WITH OPENING IN WALL SHELF (A) DETAIL 1 3 Place computer on top of rubber pads (D) as shown below. 4 Route computer cables through opening as shown. NOTE: Cable ties (E) can be used as needed.
