Installation

11 of 11

ISSUED: 1-11-08 SHEET #: 055-9495-3 09-18-12

Visit the Peerless Web Site at www.peerless-av.com

For customer care call 1-800-865-2112 or 708-865-8870.

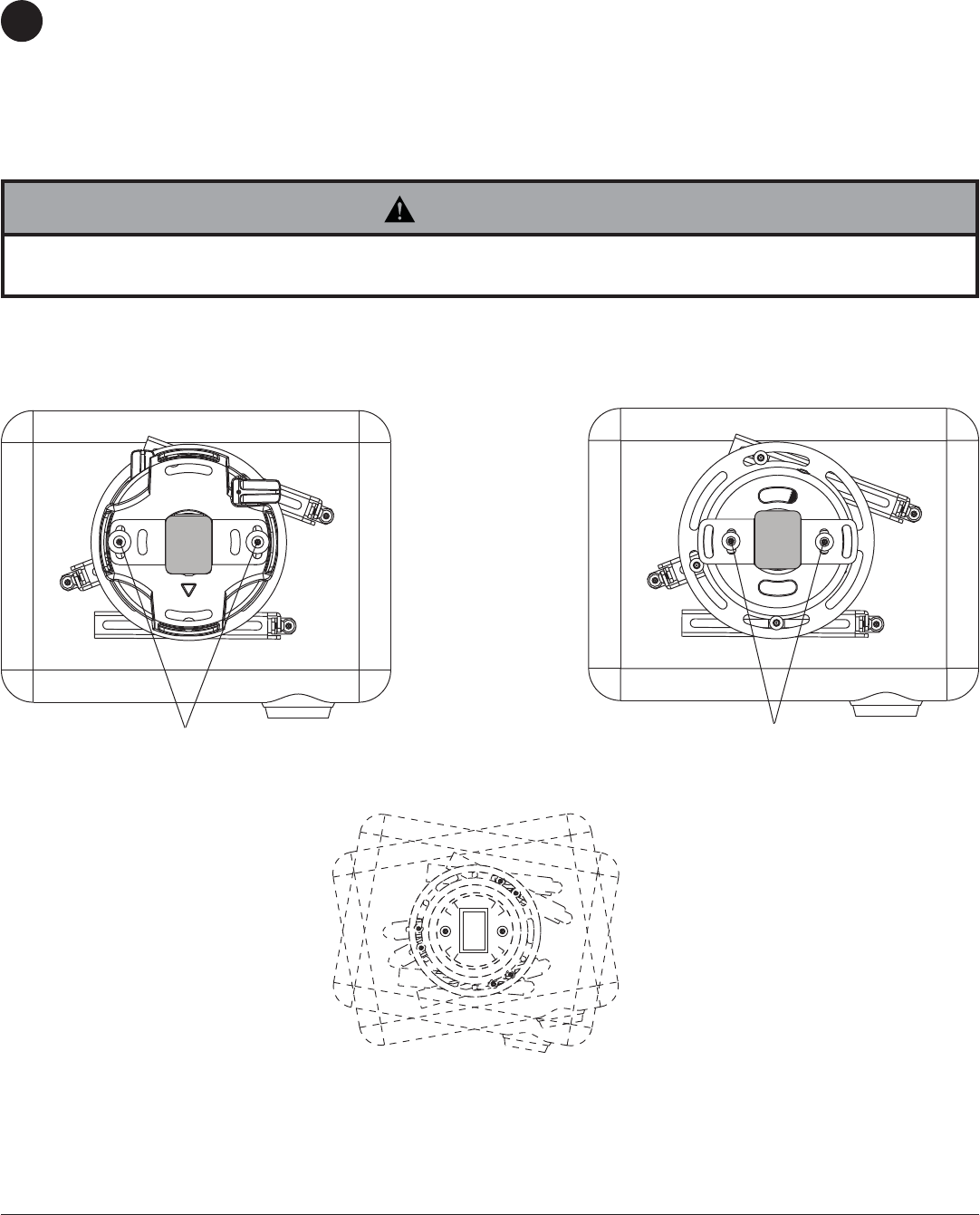

For PRG swivel adjustment: Loosen two screws indicated in ﬁ gure 9.1 half a turn using allen wrench (P) to allow

for adjusting swivel. Align projector to the desired swivel position and fully tighten screws indicated.

For PRS swivel adjustment: Loosen two screws indicated in ﬁ gure 9.1 half a turn using allen wrench (P) to allow

for adjusting swivel. Align projector to the desired swivel position and fully tighten screws indicated.

To adjust tilt and roll, refer to instruction included with projector mount.

Projector Alignment

20° (±10°) SWIVEL

• Do not loosen adjustment screws to the point they become disengaged from the mount. Weight of the projector

should be supported in case of accidental disengagement.

WARNING

SWIVEL ADJUSTMENT

TOP VIEW

All other brand and product names are trademarks or registered trademarks of their respective owners.

SCREWS FOR SWIV-

EL ADJUSTMENT

SWIVEL ADJUSTMENT WITH PRG

ﬁ g. 9.1

SWIVEL ADJUSTMENT WITH PRS

ﬁ g. 9.2

SCREWS FOR SWIV-

EL ADJUSTMENT
