ISSUED: 11-20-10 SHEET #:120-9094-1

Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-865-2112 or 708-865-8870.

1 of 5

Maximum Load Capacity:

50 lb (22.6 kg)

Model: ACC630

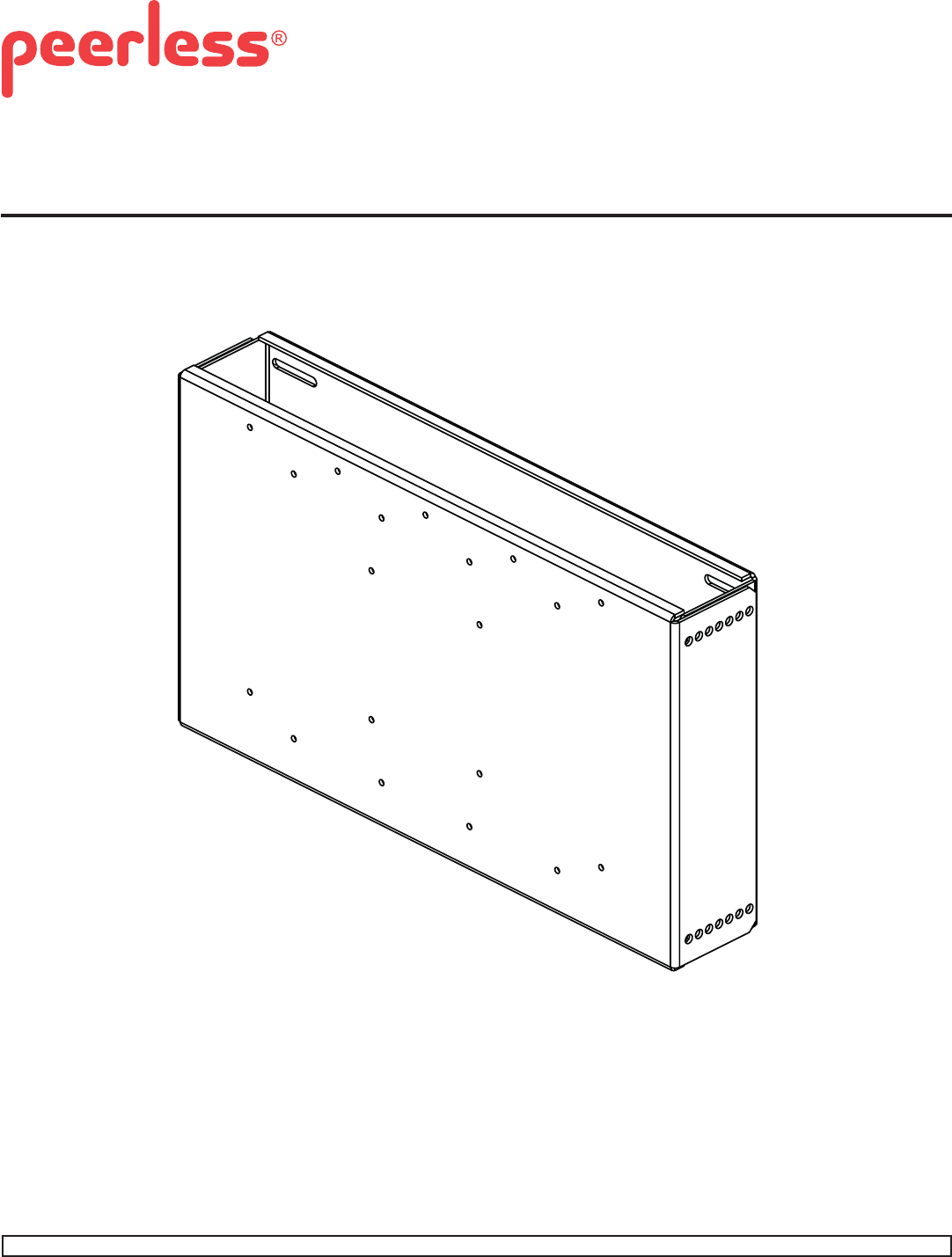

Installation and Assembly:

Wall Adapter Box for Smart 600i, Smart UX60, and

Hitachi A100WALLARM2

Summary of content (5 pages)

PAGE 1
Installation and Assembly: Wall Adapter Box for Smart 600i, Smart UX60, and Hitachi A100WALLARM2 Maximum Load Capacity: 50 lb (22.6 kg) Model: ACC630 1 of 5 Visit the Peerless Web Site at www.peerlessmounts.com ISSUED: 11-20-10 SHEET #:120-9094-1 For customer care call 1-800-865-2112 or 708-865-8870.
PAGE 2
IMPORTANT! Read instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor.
PAGE 3
Installation to Double Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power. • Never tighten in excess of 80 in. • lb (9 N.M.). • Make sure that mounting screws are anchored into the center of the stud.
PAGE 4
2 Secure adapter plate (B) to wall plate (A), setting the desired depth with four 1/4-20 self-tapping screws (D) using a 3/8" socket wrench or #3 phillips screw driver. A D B Installation of Arm Plate to Adapter Pate 3 Hand thread five 10-32 self-tapping screws (E) into adapter plate leaving 1/8" of exposed thread as shown in detail 1 using a #2 phillips screwdriver.
PAGE 5
Installation of A100WALLARM2 3 Secure A100WALLARM2 wall plate to adapter plate (B) using four 10-32 self-tapping screws (E) as shown using a #2 phillips screwdriver. Refer to A100WALLARM2 instruction manual for complete installation. A100WALLARM2 WALL PLATE B E 5 of 5 Visit the Peerless Web Site at www.peerlessmounts.com ISSUED: 11-20-10 SHEET #:120-9094-1 For customer care call 1-800-865-2112 or 708-865-8870. © 2010, Peerless Industries, Inc. All rights reserved.
