User guide

PACKAGE SIZE (W x H x D) PACKAGE SHIP WEIGHT PACKAGE UPC CODE PACKAGE CONTENTS UNITS IN PACKAGE
ACC-SB
7.75" x 3.625" x 19.75"
(196.85 x 90.075 x 501.65mm)
3.5lb (1.59kg)
735029278160
Instructions, Speaker
Mount, Attachment
Hardware
1
Package Specifications
DImENSIONS (W x H x D) PRODUCT WEIGHT LOAD CAPACITy FINISH AVAILABLE COLORS
ACC-SB
12" x 19.52"-31.02" x 0.80"
(305 x 496-788 x 20mm)
2.5lb (1.13kg) 25lb (11kg)*
TGIC Polyester
Powder Coat
Gloss Black
Product Specifications
Model Numbers
WARRANTY: Limited 5-year
A R C H I T E C T S S P E C I F I C A T I O N S
Soundbar/Center Channel Accessory Mount for PeerlessSUA746PU, SUA751PU and SUA765PU models shall be a Peerless model ACC-SB
and shall be installed where indicated on the plans. It shall be constructed of heavy gauge cold rolled steel and nished with scratch resistant black fused epoxy.
Assembly and installation shall be done accord ing to instructions provided by the manufacturer.
All dimensions = inch (mm)
ACC-SB: Soundbar/Center Channel Accessory Mount for Peerless SUA746PU, SUA751PU and SUA765PU Models
LIT-0715 rev.1
Visit www.peerlessmounts.com to see the complete line of AV solutions from Peerless, including at panel mounts, projector mounts, carts/stands, furniture, cables, screen cleaners and a full assortment of accessories.
© 2011 Peerless Industries, Inc. All rights reserved.
Peerless Industries, Inc.  2300 White Oak Circle  Aurora, IL 60502  [phone]  [phone]  Fax: [phone]  www.peerless-av.com
* Load of the soundbar mount, the speaker
and the at panel should not exceed the
recommended weight load for the SUA mount
4.00"
(102mm)
3.54"
(90mm)(597 - 788mm)
23.52" - 31.02"
2.00"
(51mm)
0.50"
(13mm)
1.38"
(35mm)
R0.14"
(4mm)
(178 - 279mm)
7.00" - 11.00"

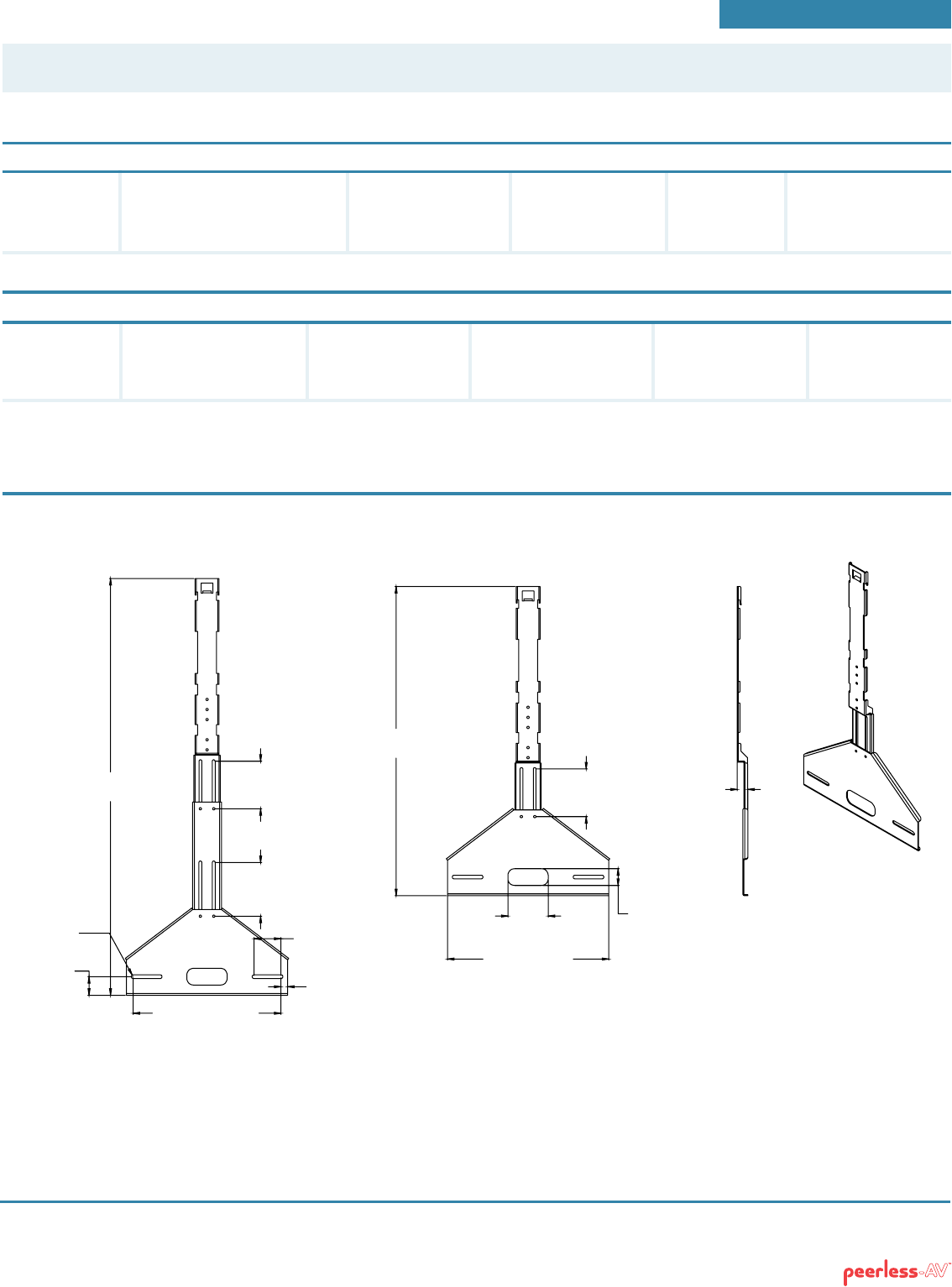

FRONT VIEW
ISOMETRIC VIEW
SIDE VIEW
3.54"
(90mm)
12.00"
(305mm)
(496 - 585mm)
19.52" - 23.02"
3.00"
(76mm)
1.25"
(32mm)
0.80"
(20mm)
FRONT VIEW
WITHOUT EXTENSION BRACKET
