User's Manual

Page 7 of 13

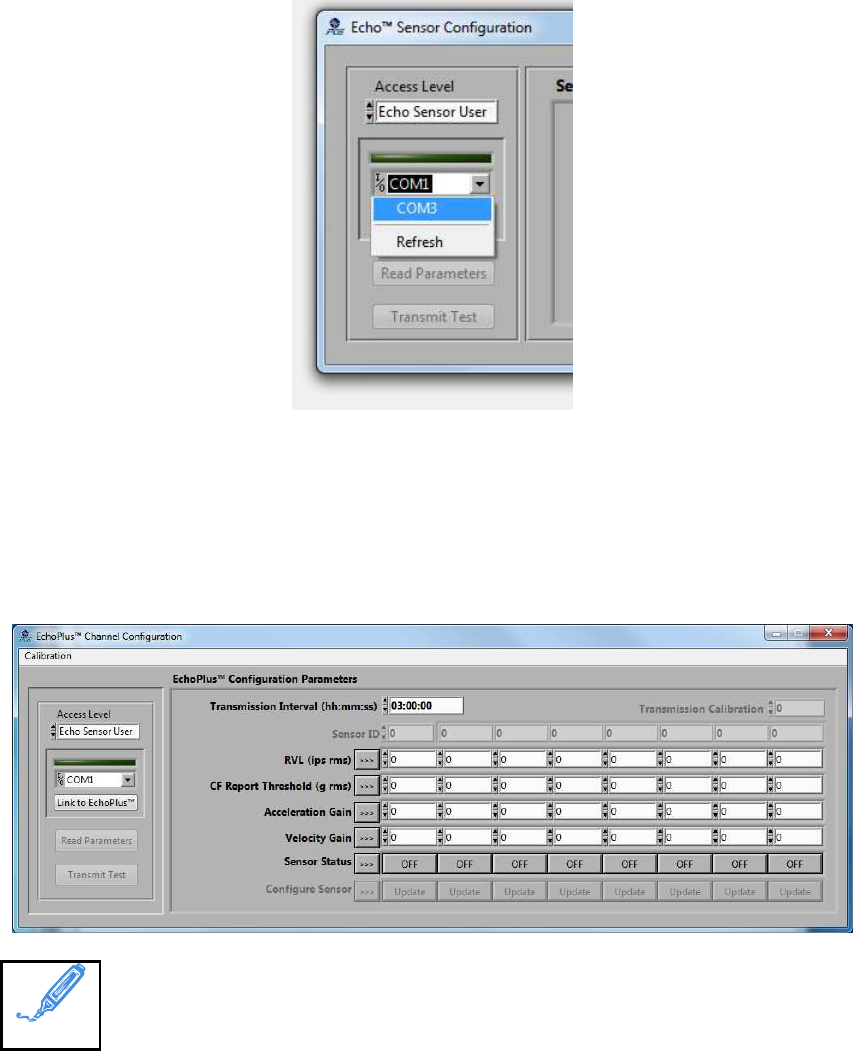

The connection window will appear. Select the appropriate COM port to which the cable
is connected.
Reading the Current Programmed Parameters
Click “Link to EchoPlus
®
and the green light will illuminate indicating the connection
has been made. The fields at the right of the window will populate with the current
programmed parameters.
The Sensor ID is set at the factory and CANNOT be changed. This ID is
unique to each junction box and channel we manufacture. The factory
default the Transmission Interval is 8 hours, RVL is 0 (off), and the CF
Report Threshold is 0.15.
Tip
