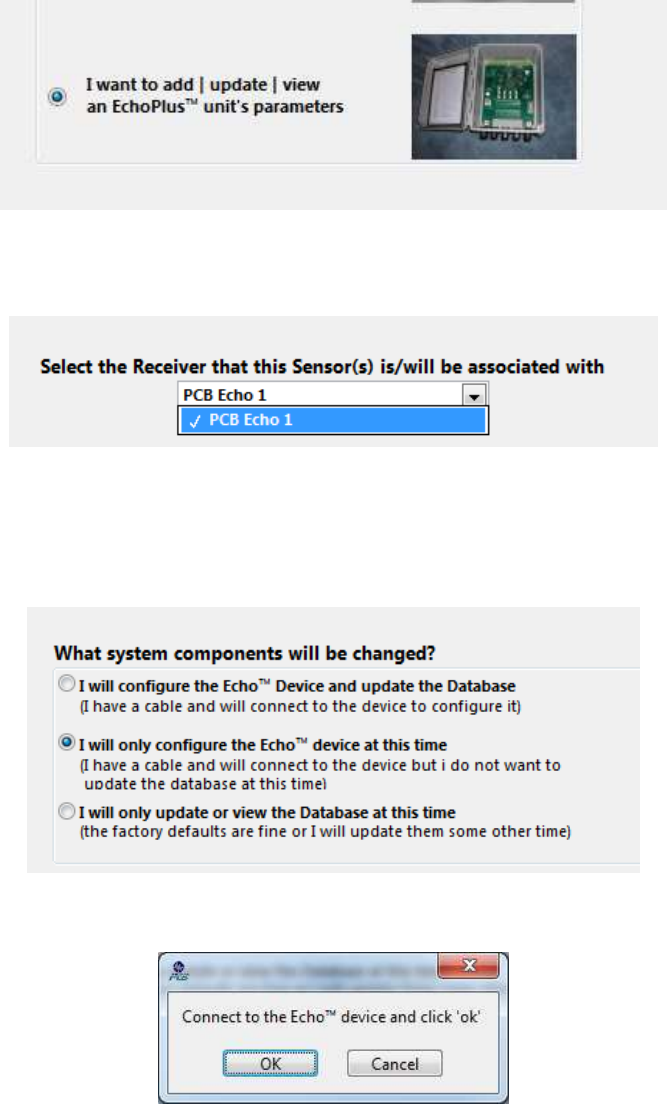

The program will then ask if you wish to set up a Echo
®
Wireless Sensor or an EchoPlus
®
Wireless Junction Box. Select “I want to add, update, or view an EchoPlus
®
unit’s
Parameters”.
Select the receiver that you would like this specific sensor attuned to. If you are using a
single receiver select the default setting.
The software will then ask if you would like to set up the junction box, the database, or
both. If this is the first time you are activating this sensor you must do both. Installing a
new junction box and configuration of the database is covered in the Echo
®
System Setup
Manual. We will continue by only changing the programming of the Echo
®
Sensor.
Select “I will only configure the Echo
®
device at this time” button and click Next.
Make sure the sensor is connected to the computer through the USB to RS232
programming cable and hit OK.
