Introduction 45
Model 6081RC Network Access Server User Manual D • Port pin-outs
Introduction
This section provides pin-out information for the ports of the 6081RC.
Console port
Configuration settings: 9600 bps, 8 bits, no parity, 1 stop bit, no flow control

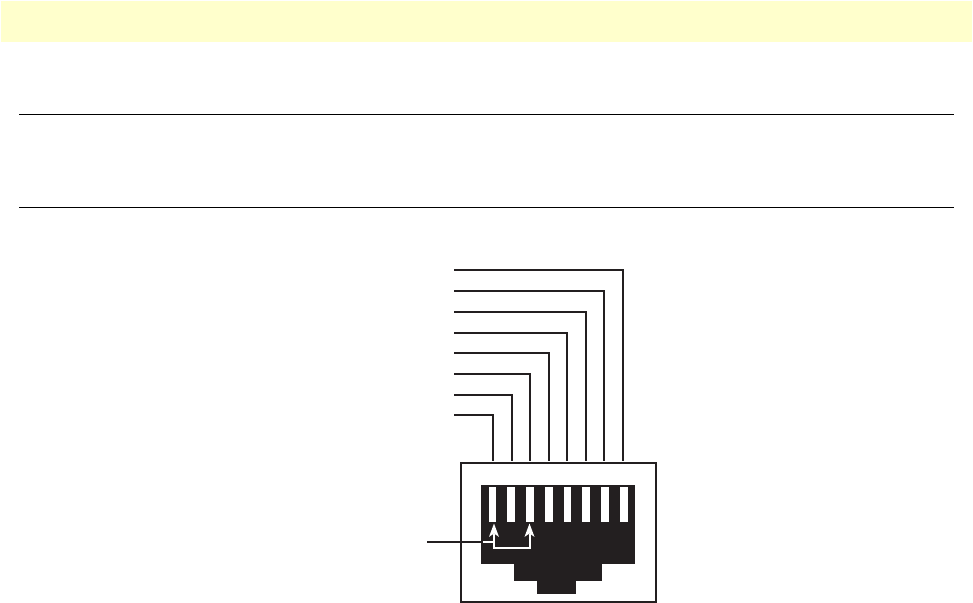

Figure 16. EIA-561 (RJ-45 8-pin) port
Note
N/C means no internal electrical connection.
12345678
8–RTS (N/C)
7–CTS (N/C)
6–TD
5–RD
4–SG
3–DTR
2–CD (N/C)
1–DSR
Pins 1 & 3 are
connected together
