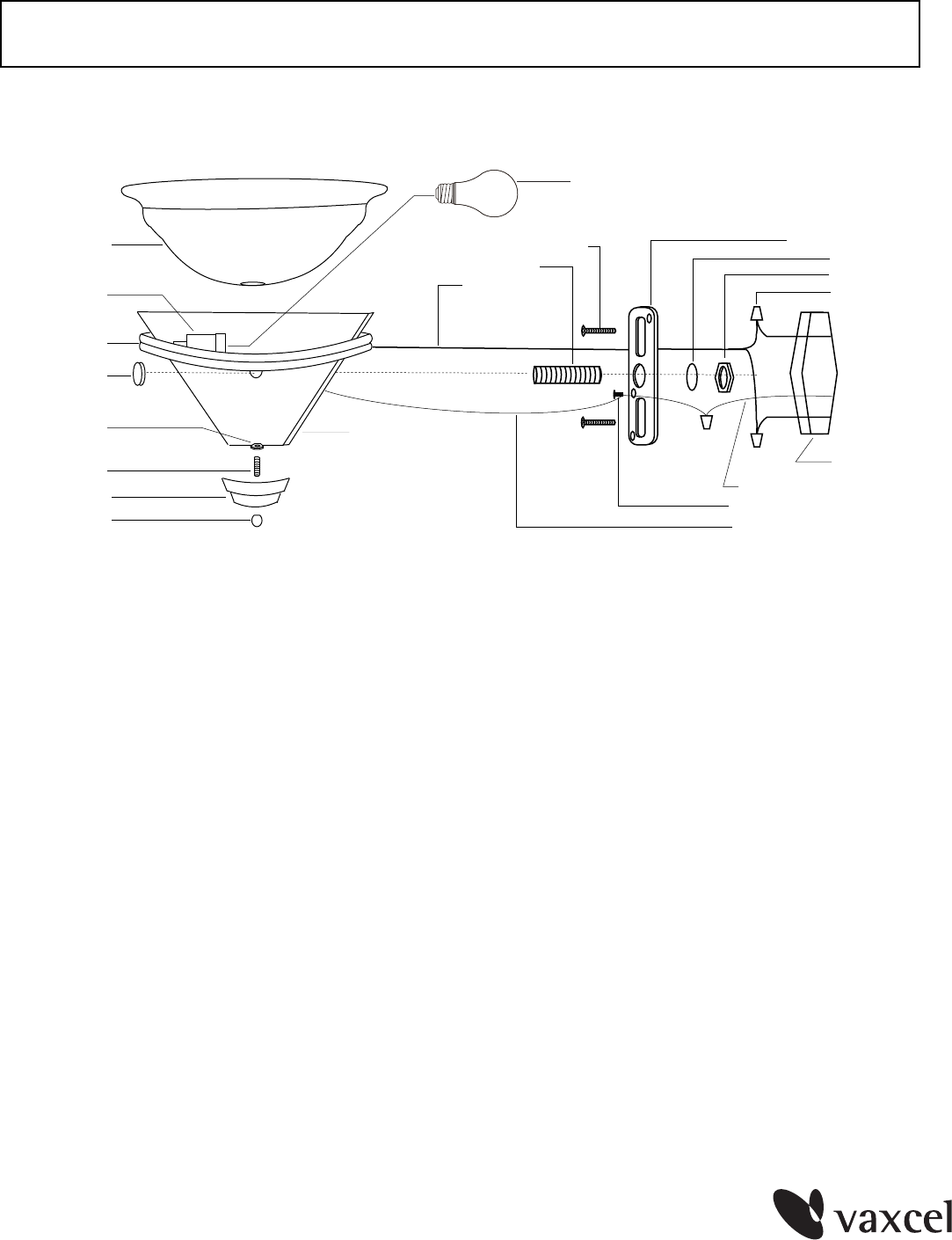

Installation Instructions

Socket
Metal Ring
End Cap
Metal Cap
Hex Nut
Finial
Nipple(-b)
1. Attach nipple(-a) to the mounting strap, then secure it with a washer and hex
nut.
2. Attach the mounting strap to the outlet box by using two mounting screws.
3. Pull out the outlet wires and house grounding wire from the outlet box. Make
wire connections using the wire nuts:
---The black wire from the fixture to the black wire from the power source.
---The white wire from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the mounting strap with the green
grounding screw. Then connect it to the house grounding wire with a
wire nut.
Carefully put the wires back into the outlet box.
4. Attach the back plate to the mounting strap by inserting nipple(-a), then secure
it with the end cap.
5. Place the glass shade to the wall plate, which must be against the metal ring
to avoid wobble.
6. Thread nipple(-b) into the hex nut, attach the metal cap onto nipple(-b), then
secure it with the finial.
7. Install a bulb (not included). See relamping label on socket area or packaging
for maximum allowed wattage.
8. Turn on the power at the main fuse or circuit breaker box.
Fixture Wire
Back Plate
Mounting Screw
Nipple(-a)
Fixture Grounding Wire
Mounting Strap
Green Grounding Screw
Hex Nut
Wire Nut
Washer
Outlet Box
House Grounding Wire
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
WS8171
Glass Shade
Bulb Type A Max.60W
(not included)
100710
