IMPORTANT SAFETY INSTRUCTIONS
ASSEMBLY INSTRUCTIONS
PREPARATION
Please read and understand this entire manual before attempting to assemble,
operate or install the product. Please save this instruction manual.
WARNING
• Turn off electricity at main fuse box (or circuit breaker box) before beginning
installation by removing fuse (or switching off circuit breaker).
• Be careful not to damage or cut the wire insulation (covering) during fixture
installation. Do not permit wires to contact any surface having a sharp edge.
To do so may damage or cut the wire insulation, which could cause serious
injury or death from electric shock.
• This product must be installed in accordance with the applicable installation code by
a person familiar with the construction and operation of the product and the hazards
involved.
• CAUTION – RISK OF FIRE. Consult a qualified electrician to ensure correct
branch circuit conductor.
• Connect the ground wires (bare copper or green) from your fixture to the ground
wire (bare copper or green) or ground screw in the electrical box.
CAUTION
• All electrical connections must be in agreement with local codes, ordinances or
the national electric code (NEC). Contact your municipal building department to
learn about your local codes, permits and/or inspections.
• Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC.
Consult a qualified electrician before installation.
• Do not connect this fixture to an electrical system that does not provide a means for
equipment grounding. Never use a fixture in a two-wire system that is not grounded.
If you are not sure your lighting system has a grounding means, do not attempt to
install this fixture. Contact a qualified, licensed electrician for information with regards
to proper grounding methods as required by the local electrical code in your area.
• If a dimmer control switch is used with this fixture, obtain professional advice to
determine the correct type and electrical rating required.
Before beginning assembly, installation or operation of product, make sure all parts
are present. Compare parts with package contents list and diagram on previous page.
If any part is missing or damaged, do not attempt to assemble, install or operate the
product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers,
Electrical Tape, Wire Cutters, Safety Glasses, Ladder, Wire Stripper
B
B

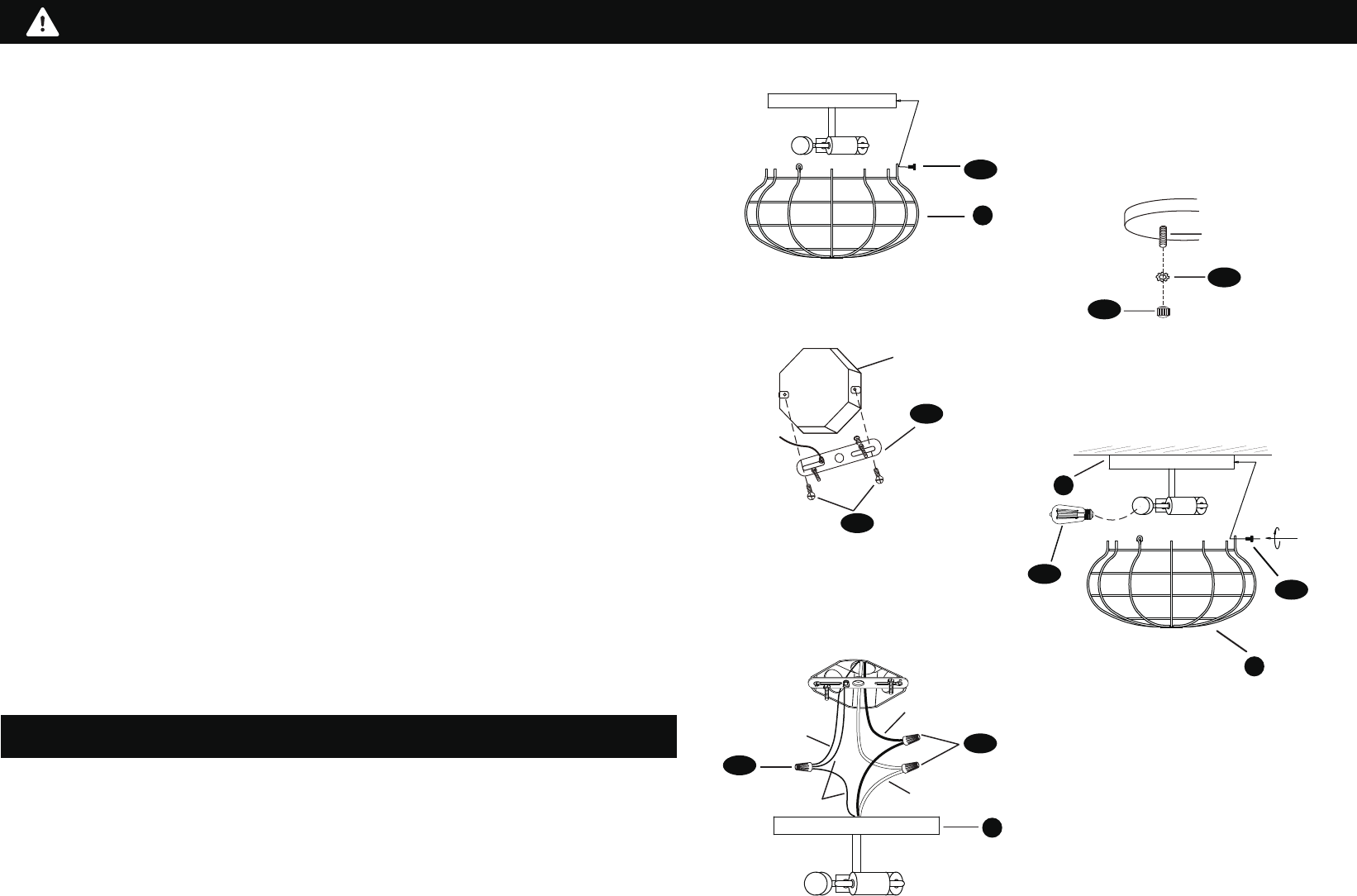

1. Unscrew the thumb screws (FF) to
remove the guard (B).
3. Connect the ground wires (bare copper
or green) from your fixture (A) to the ground
wire (bare copper or green) or ground screw
in the electrical box. Connect the black wires
from the fixture (A) to the black wire in the
electrical box and connect the white wires
from the fixture (A) to the white wire in the
electrical box.
4. Once connections of wires are completed,
carefully tuck wires and wire nuts (AA) into the
electrical box making sure no bare wire (on the
black and white) is visible at the wire nuts (AA).
5. Position fixture over studs on mounting
bracket (BB) assembly. Secure fixture (A) in
place with star washers (DD) and cap nuts (EE).
GG
FF
FF
6. Install proper bulb (GG) type and
wattage.
7. Re-install the guard (B) with the thumb
screws (FF).
A
A
2. Mount the mounting bracket (BB) to
electrical box using electrical box
screws (CC). Make sure the studs on the
mounting bracket (BB) are facing out from
the electrical box.
DD
EE
Stud
BB
CC
Electrical
Box
AA
AA
White
Black
House supply
Ground wire
Fixture
Ground wire
