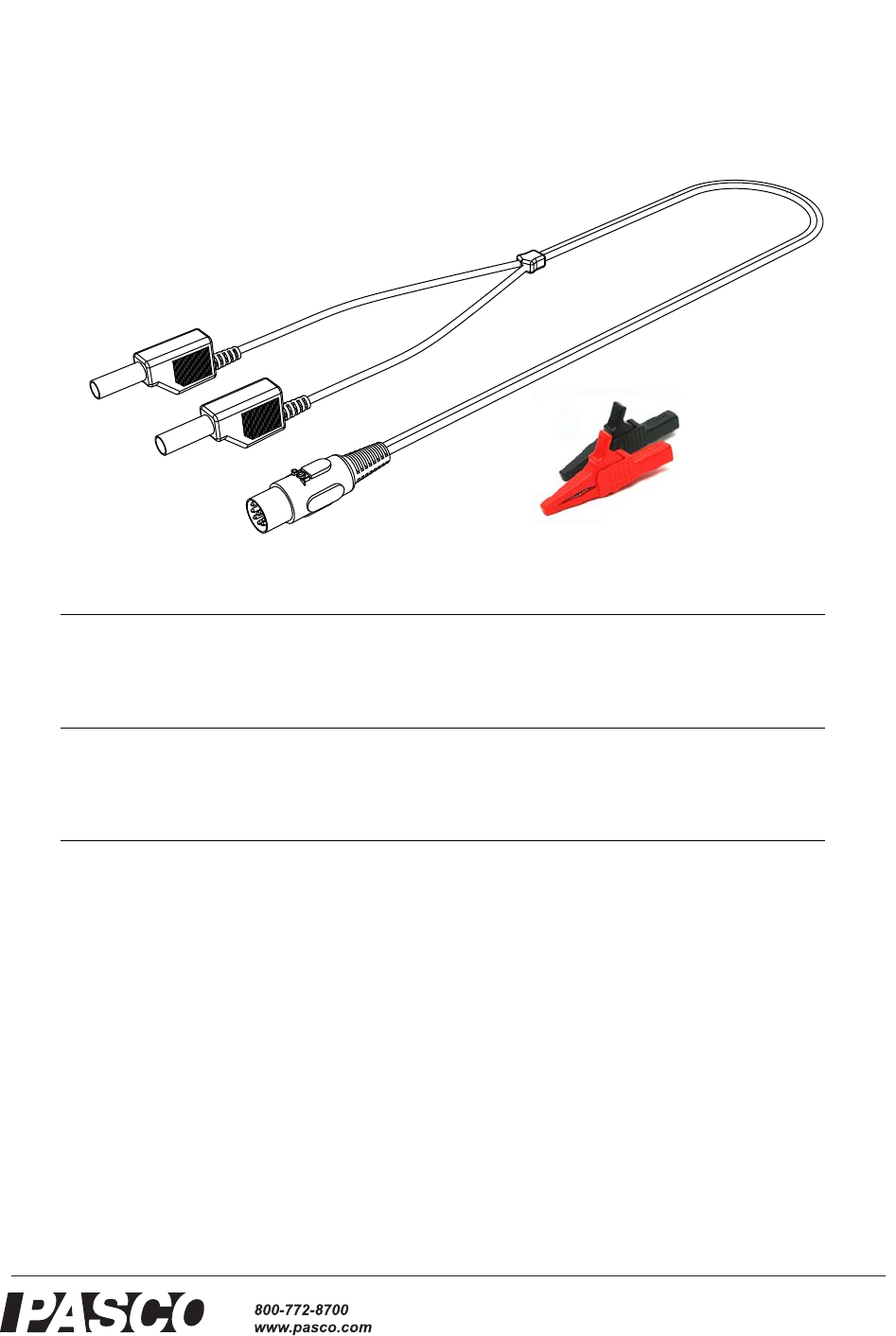

850 UNIVERSAL INTERFACE Instruction Sheet

012-13610A

Voltage Probe, Shrouded

UI-5110

*012-13610*

Introduction

The PASCO UI-5110 Voltage Probe, Shrouded is designed to work with the PASCO 850 Universal Interface. The

1.2 meter (m) cable has an eight pin DIN plug at one end and two shrouded, stackable banana plugs at the other

end. The cable comes with two safety alligator clips that work with shrouded or unshrouded banana plugs. Stu-

dents can measure voltage using a Shrouded Voltage Probe and a compatible PASCO interface such as the 850

Universal Interface with PASCO data acquisition software such as PASCO Capstone. With a PASCO PS-2158

Analog Adapter*, the Shrouded Voltage Probe could also be used with the SPARK Science Learning System* or

a data logger such as the Xplorer GLX*.

*See the PASCO catalog or web site at www.pasco.com for more information.

Included Equipment Part Number

Voltage Probe, Shrouded UI-5110

Large Safety Alligator Clip (one red; one black)

PAGE 1
850 UNIVERSAL INTERFACE Instruction Sheet 012-13610A *012-13610* Voltage Probe, Shrouded UI-5110 Large Safety Alligator Clip (2) Banana Plug Connectors, Shrouded Eight pin DIN connector Included Equipment Part Number Voltage Probe, Shrouded UI-5110 Large Safety Alligator Clip (one red; one black) Recommended Items Part Number PASCO 850 Universal Interface UI-5000 PASCO Capstone Software UI-5400 or UI-5401* Optional Item Part Number Extension Cable (eight pin DIN male-to-eight pin DIN femal
PAGE 2
Model No.UI-5110 Introduction About the Shrouded Voltage Probe The PASCO UI-5110 Shrouded Voltage Probe connects to an eight pin DIN jack such as the ANALOG INPUT ports on the 850 Universal Interface. The probe has a built in automiatic identification (“auto ID”) chip. When connected to the 850 Universal Interface, the PASCO Capstone software automatically determines that the probe has been plugged in.
