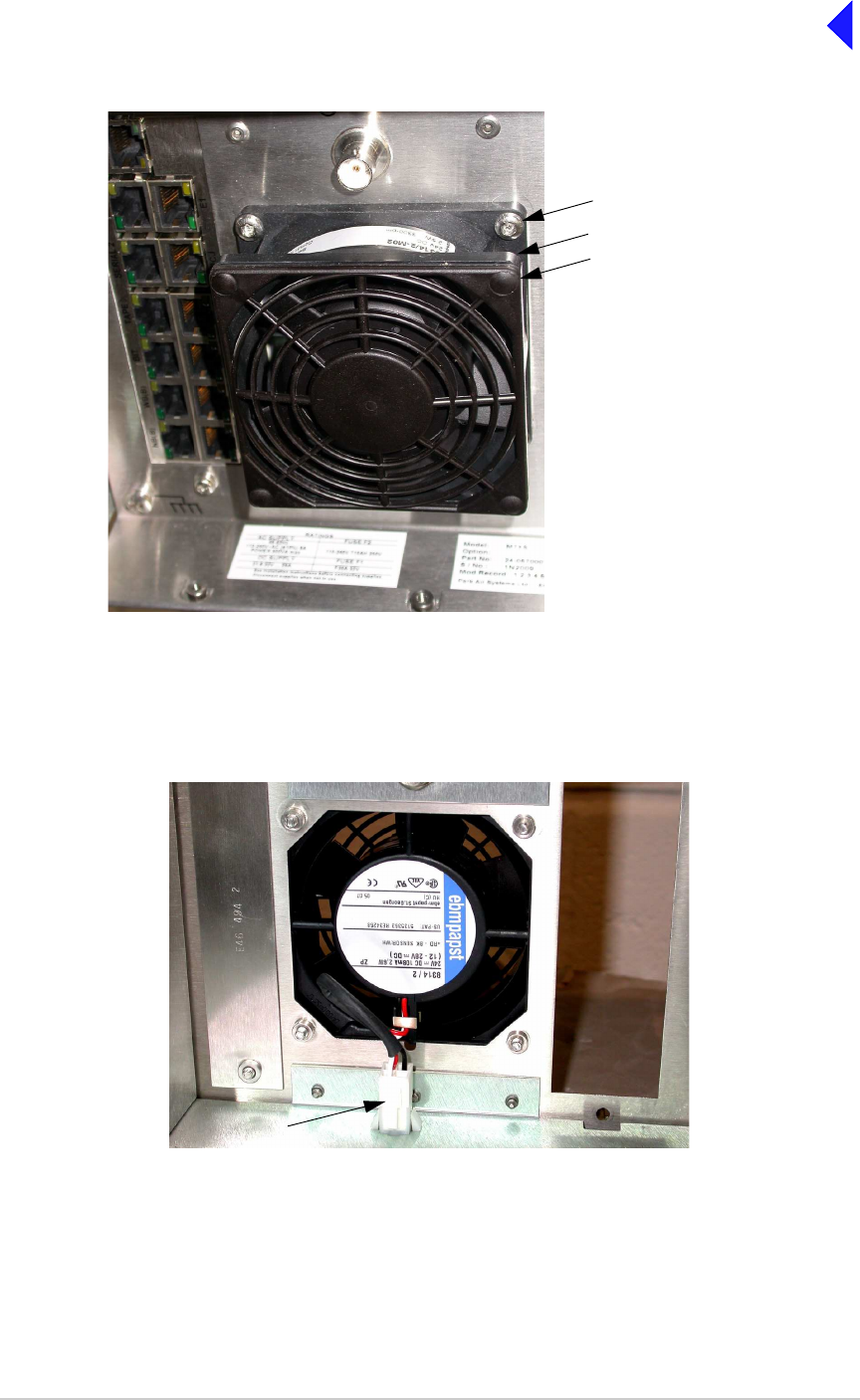

Fig 5-9 Fan with Finger Guard Fitted
(6) Push the finger guard onto the fan’s body.
(7) Reapply power to the radio. Ensure that the fan is operating and that the appropriate BIT
parameter (
Fig 5-8) reads OK.
Fig 5-10 Molex Fan Connector
Securing Screws (4 off)
Fan Body
Finger Guard
Molex Connector
