Installation Manual

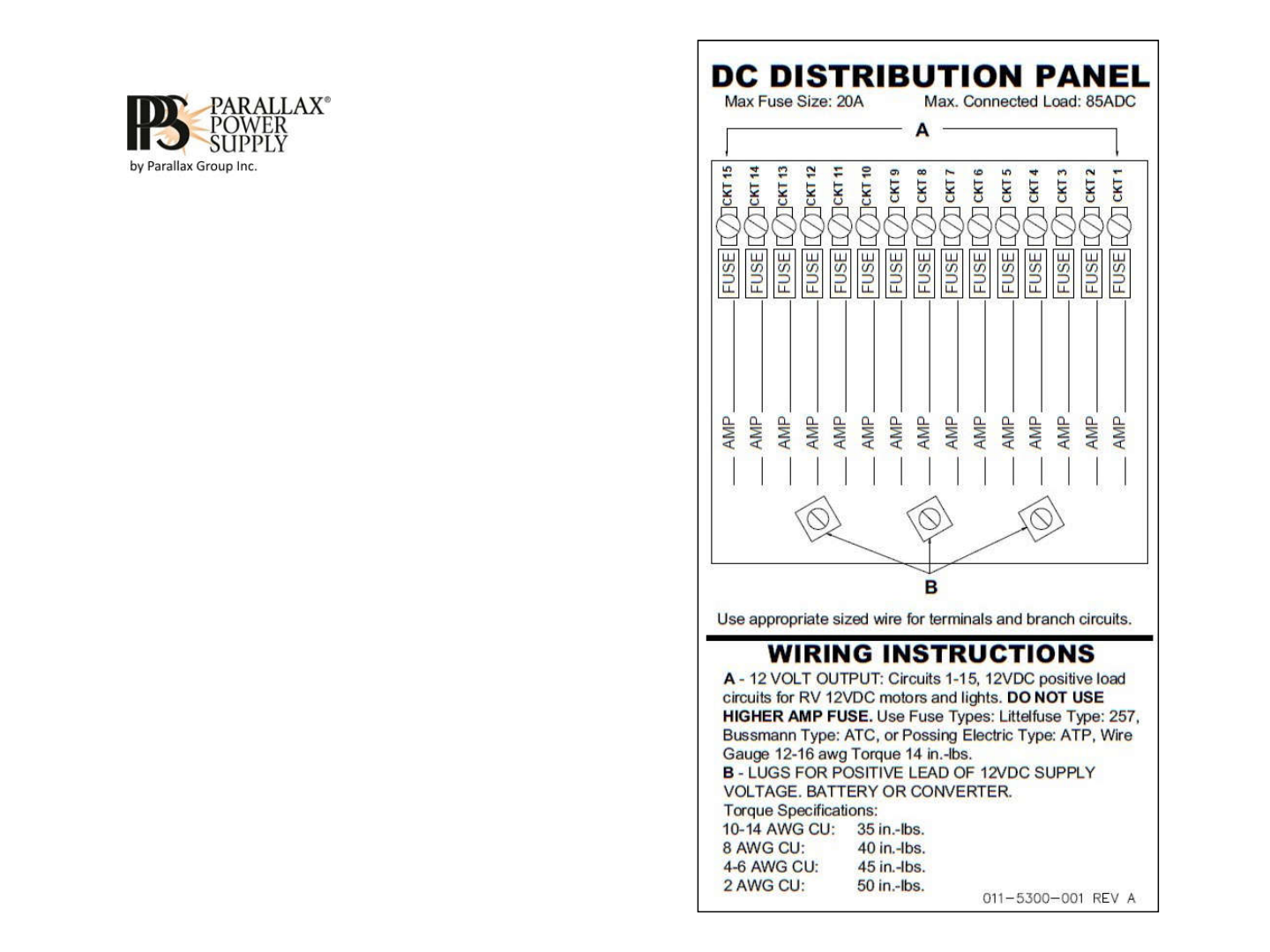

DC Wiring Label
(located inside outer door)
Electrical installation shall comply with the standards and
safety requirements of the ANSI/RVIA 12V Standard for
Low Voltage Systems in Conversion and Recreational
Vehicles, NFPA 70 National Electrical Code and the
NFPA 1192 Standard for Recreational Vehicles.
A. Load circuit fuses should be appropriately rated for the safe
amperage capacity of the load wiring gauge used.
B. DC Positive terminal lugs are electrically connected together
and may be used for source DC input positive connections or
high current DC positive outputs as desired. If used as an output,
an appropriately rated in-line fuse or breaker is required.
Torque fuse panel connections to specifications stated on the
fuse panel wiring label.
90 degree Celsius insulation rating minimum
required for low voltage wiring in the RV
.
DC branch load fuses not supplied with unit.
