Power
When the Power module is selected, the following menu items appear along the left-
hand side of the display.
l Status
l Branch Monitoring (if the unit has breakers)
l Status 3-Phase (if the unit is 3-Phase)
l Thresholds
l Configure
Status Single-Phase

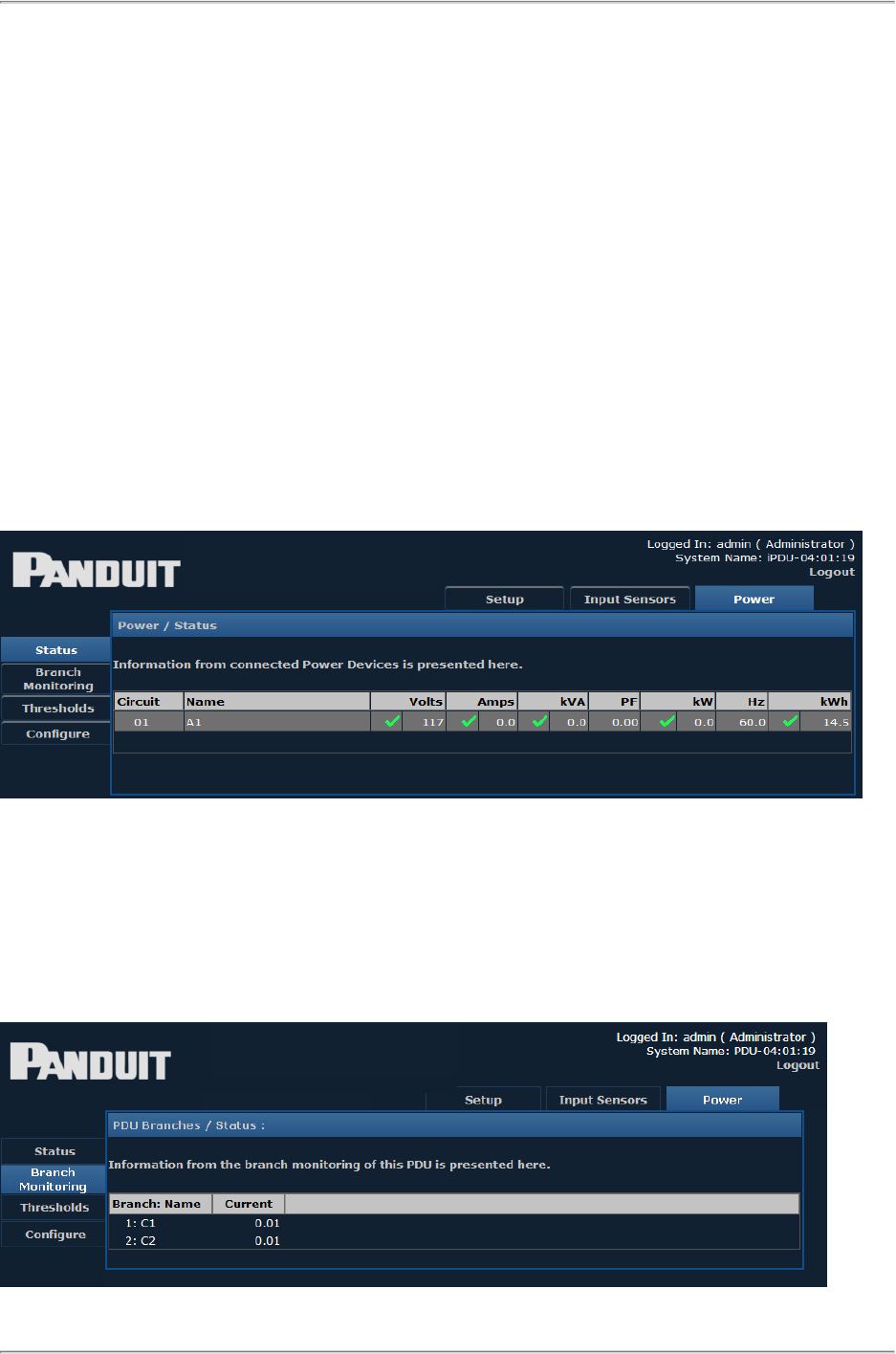

The Status screen displays information from a connected Single-Phase Power Device.
Branch Monitoring
If the power device has breakers, you will see the Branch Monitoring button as shown
below. Clicking the Branch Monitoring button brings up the following screen, dis-
playing information from branch monitoring.
