Installation instructions

INSTRUCTIONS CM598G
For Technical Support: www.panduit.com/resources/install_maintain.asp
131mm
[5.16”]
DIM A
2X 216mm
[8.50”]
291mm
[11.46”]
4X 14mm DIA
[0.55”]
Page 7 of 28

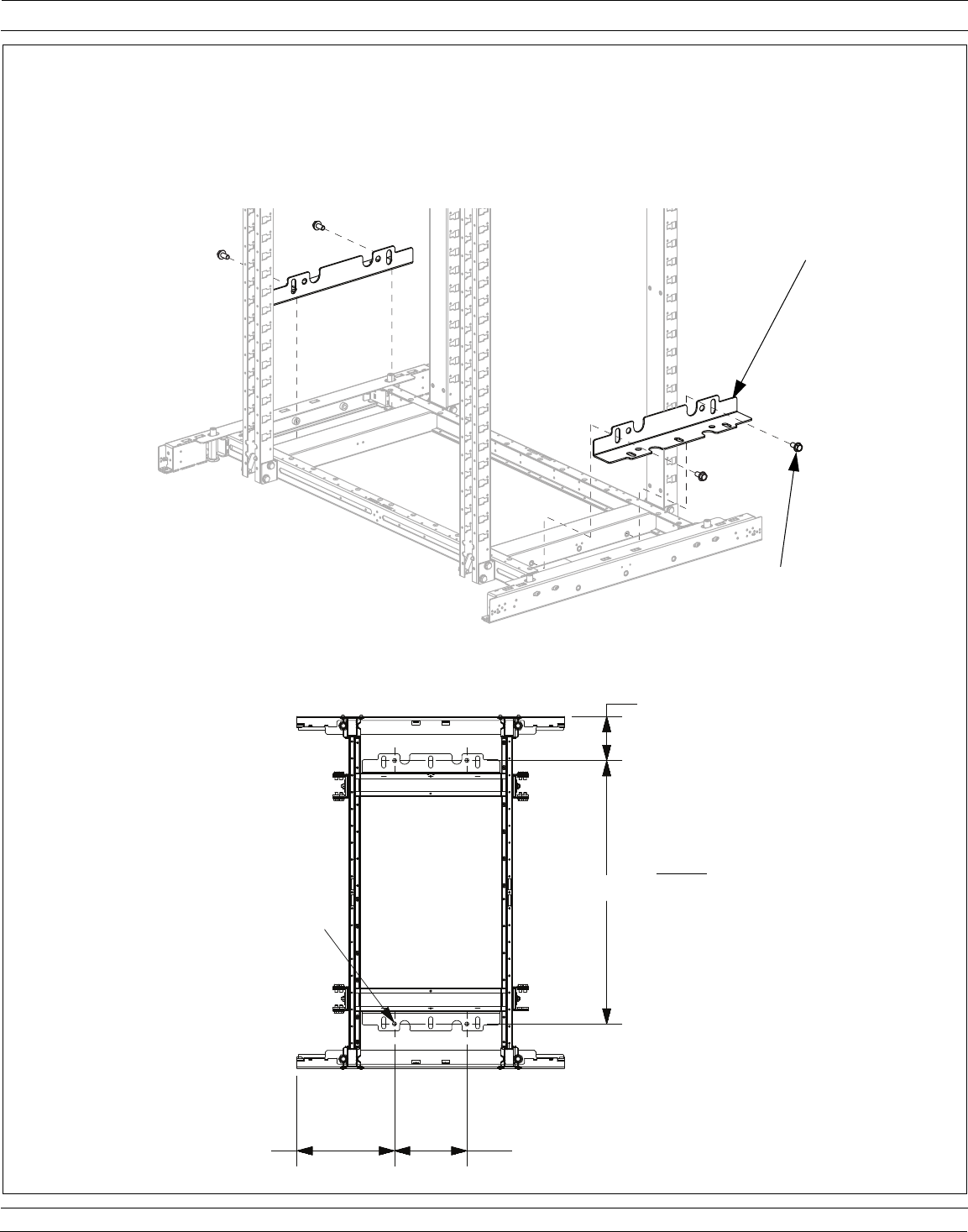

Floor Mounting
• Ensure that [4] Leveling Legs are fully retracted
• If Necessary, secure [2] “Shipping Hold Down Brackets” at front and rear of cabinet
• See Floor Mounting View below for floor mounting dimensions
• Attach the anchors to the floor with appropriate hardware for your type of floor
[4] M10 Hex Head Screws
(use 15mm socket wrench)
Floor Mounting View
DIM A:
-1070mm deep cabinets: 782mm [30.79”]
-1200mm deep cabinets: 912mm [35.91”]
[2] Shipping
Hold Down
Brackets
