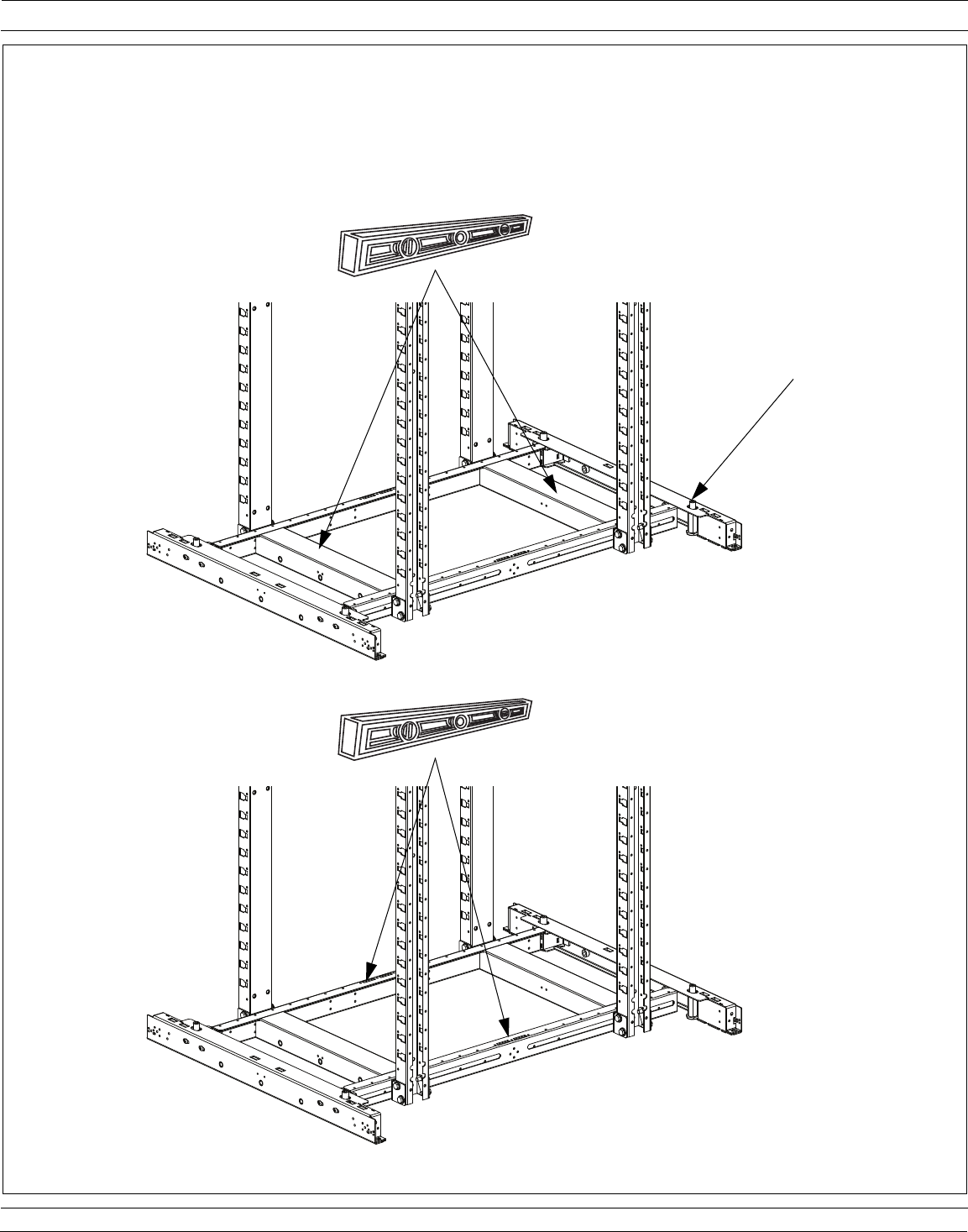

Front-to-Back Cabinet Leveling
Side-to-Side Cabinet Leveling
Leveling
• Ensure that [4] Leveling Legs are fully retracted
• Slide Cabinet into final position
• Lower the [4] Leveling Legs until the cabinet weight is fully supported by only the leveling legs
• Adjust the [4] Leveling Legs so that the cabinet is level front-to-back and side-to-side
Note: When ganging multiple cabinets together, ensure that adjacent cabinets are adjusted to the same height.
[4] Leveling Legs
(use 6mm Allen Key)
