Packaging Material Removal
Before removal of packaging material:
Check tip indicator on the outside of cabinet to ensure cabinet was shipped in the upright position.
NOTE: Not all configurations include shipping brackets. Shipping Brackets to be discarded after removal.
All shipping brackets are labeled “SHIPPING BRACKET REMOVE IMMEDIATELY”

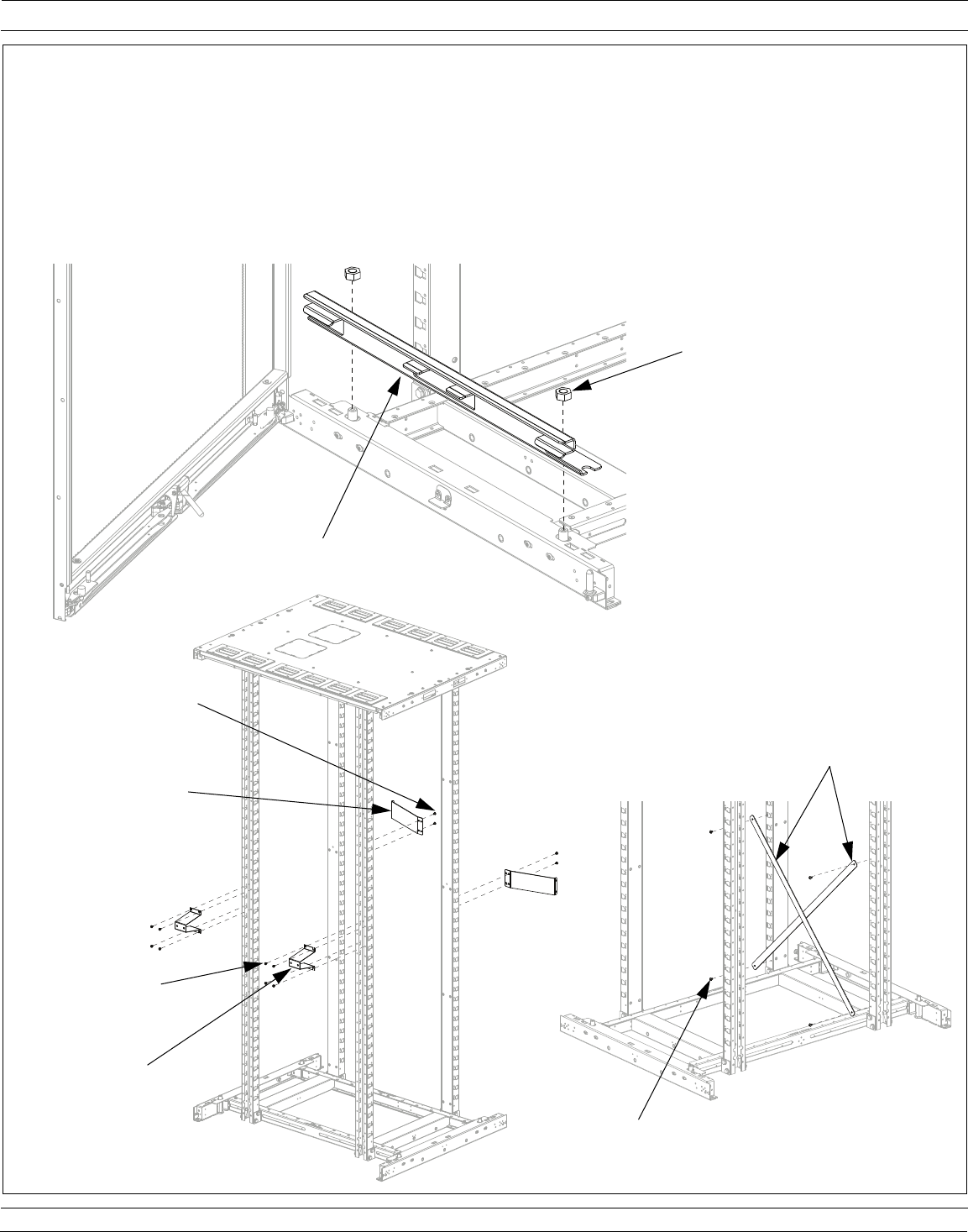

• Remove Front Door Shipping Bracket
• If necessary, remove up to [4] Center Support Shipping Brackets from cabinet frame
• Remove [2] Cross Braces from cabinet frame
Front Door
Shipping Bracket
[2] M14 Hex Nuts
(use 22mm socket wrench)
Center Support
Shipping Bracket
(No Side Panel)
Center Support
Shipping Bracket
(Side Panel)
• Loosen screws
• Squeeze bracket
• Remove and discard
[4] M5 Torx Screws
(use T25 Torx bit)
[2] M5 Torx Screws
(use T25 Torx bit)
[4] M5 Torx Screws
(use T25 Torx bit)
[2] Cross Braces
