Installation instructions

INSTRUCTIONS CM598G
For Technical Support: www.panduit.com/resources/install_maintain.asp
Packaging Material Removal
Before removal of packaging material:
Check tip indicator on the outside of cabinet to ensure cabinet was shipped in the upright position. If tip indicator shows improper
handling, inspect cabinet for damage before accepting cabinet.
Before handling cabinet:
Small glide strips are installed at various locations around the cabinet to protect the cabinet’s finish during shipping. These strips
are to be removed prior to handling of cabinet.
“Shipping Hold Down Bracket” Doubles as Floor Mounting Bracket. Retain bracket if floor mounting is desired. (see Page 7)
• Remove all stretchwrap and protective cardboard from outside of cabinet
• Remove [2] Hold Down Brackets at front and rear of cabinet
• Use
[2] people to carefully lift and remove cabinet from pallet
Pallet
Note: Doors, Side panels, and other components are removed for clarity.
IMPORTANT:
Leveling Legs must be fully retracted before the cabinet is moved into place. Sliding cabinet on leveling legs may
result in damage to the leveling legs.
Page 4 of 28

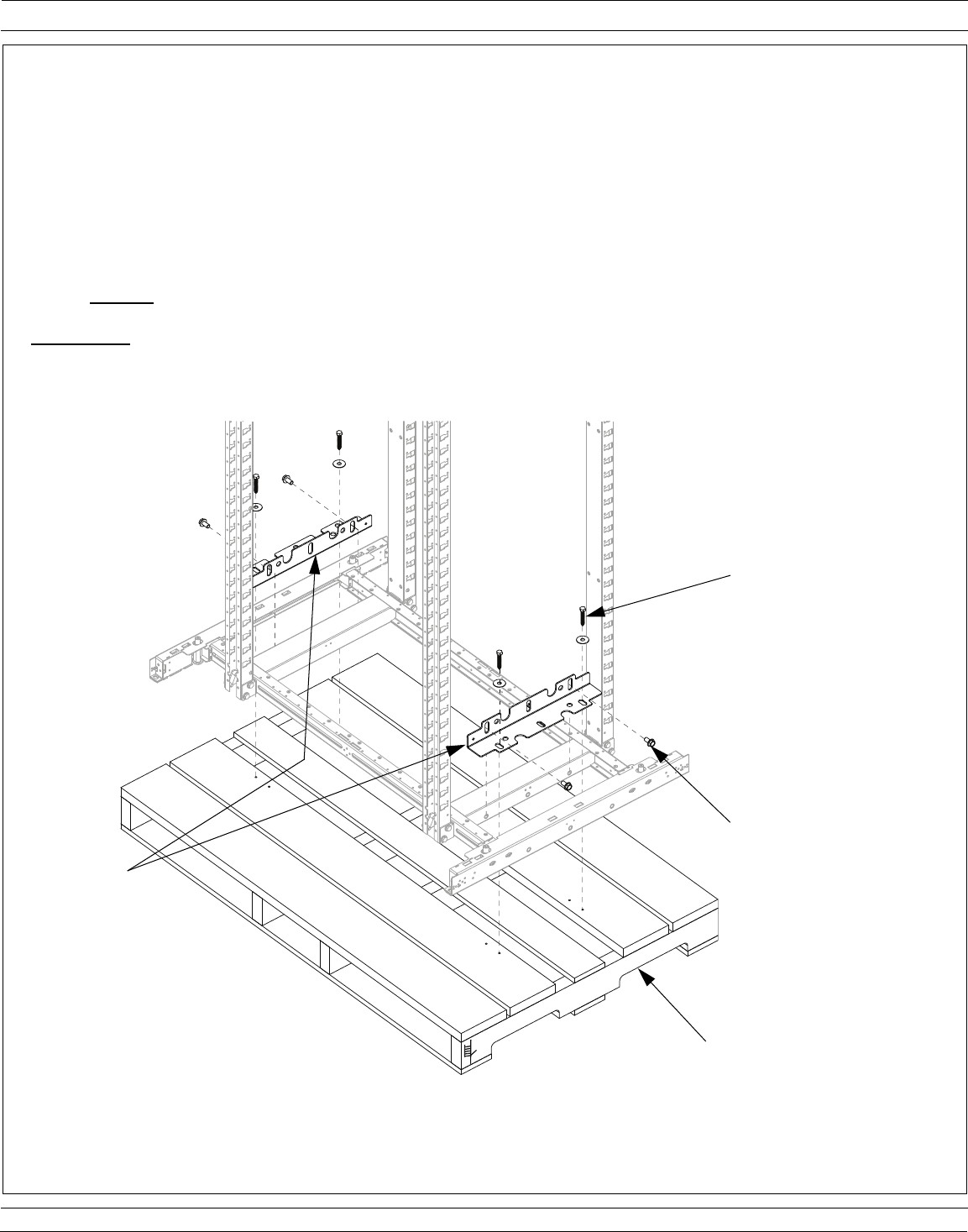

[2] Shipping
Hold Down
Brackets
[4] M10 Hex Head Screws
(use 15mm socket wrench)
[4] Lag Bolts and Washers
(use 13mm socket wrench)
