Top of Cabinet Cable Manager Installation
• Disassemble front fascia assemblies (packaged in cabinet) by removing (2) M5x0.8 button head screws (use T25 Torx bit).
• Remove (2) M5x0.8 button head screws (use T25 Torx bit) from front and rear of Cable Manager base.
• Install vertical walls on front and back of Cable Manager base using (5) M5x0.8 button head Torx screws (use T25 Torx bit).
Re-install screws from previous step to secure to the frame.
• Attach front fascia to the front vertical wall by sliding fascia over studs in vertical wall.(see detail view). Tighten with (4) M5x0.8
button head screws (use T25 Torx bit).
• Attach rear fascia to the rear vertical wall by sliding fascia over studs in vertical wall (see detail view). Tighten with (4) M5x0.8
button head screws (use T25 Torx bit).

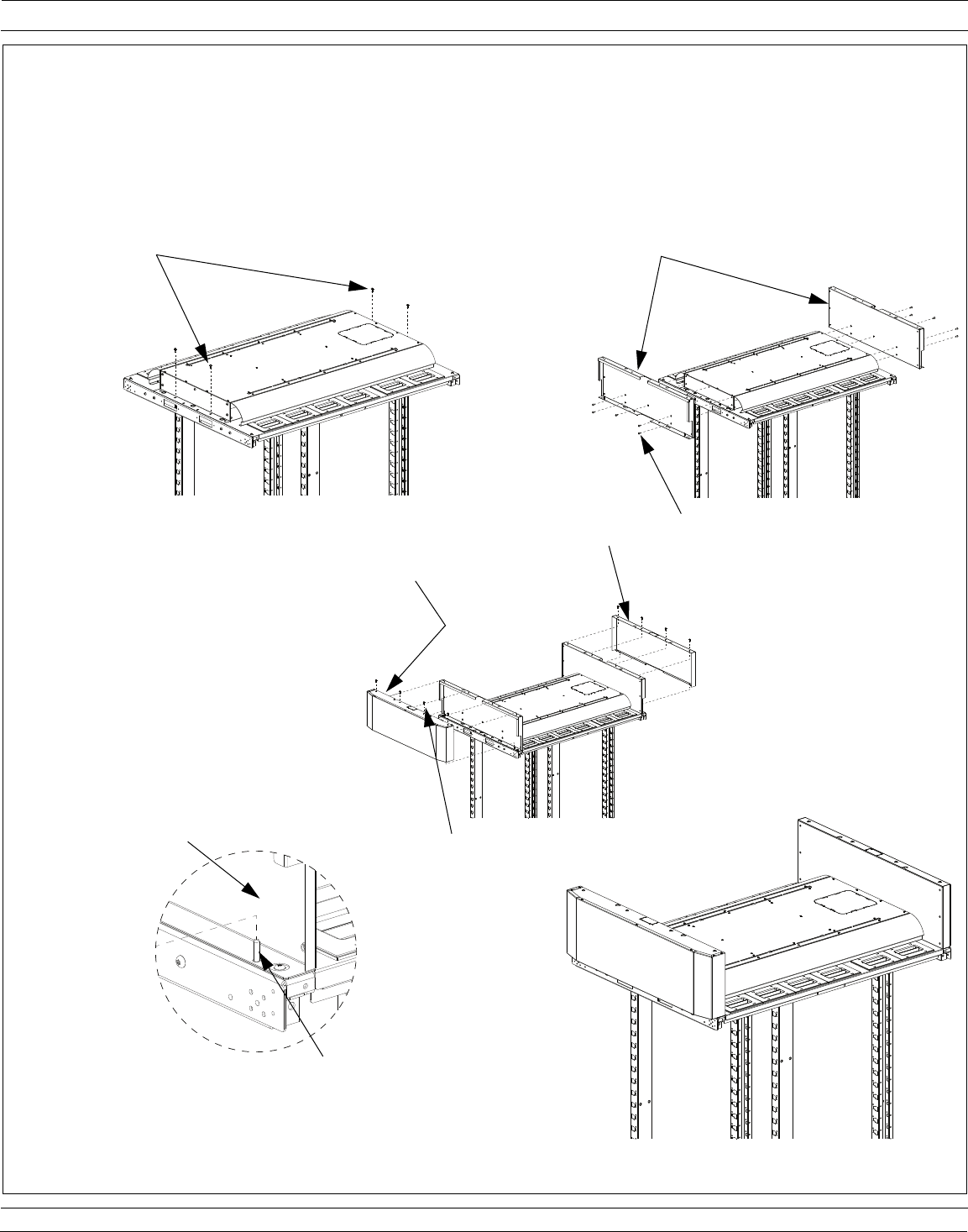

[2] Vertical Walls
Front Fascia
Rear Fascia
Studs
[2] Vertical Walls
[4] M5 Torx Screws
(use T25 Torx bit)
[5] M5 Torx Screws
(use T25 Torx bit)
- Remove -
[4] M5 Torx Screws
(use T25 Torx bit)
