Cabinet Seal Kit Installation
• Install Foam Seal to the caster seal brackets on the bottom flange.
• Install (2) Caster Seal Brackets (1 Left, 1 Right) to the bottom Air dam assembly using (1) M5X0.8 button head torx screw. (do not
tighten)
• Install Equipment Seal to the top of the lower front side to side beam and to the bottom of the upper side to side beam, between the
front E-rails.
• Install foam seal to the rear flange of the front side to side beam.
*When cabinet is level adjust caster seal brackets to create an air tight seal to the floor. Tighten screws.

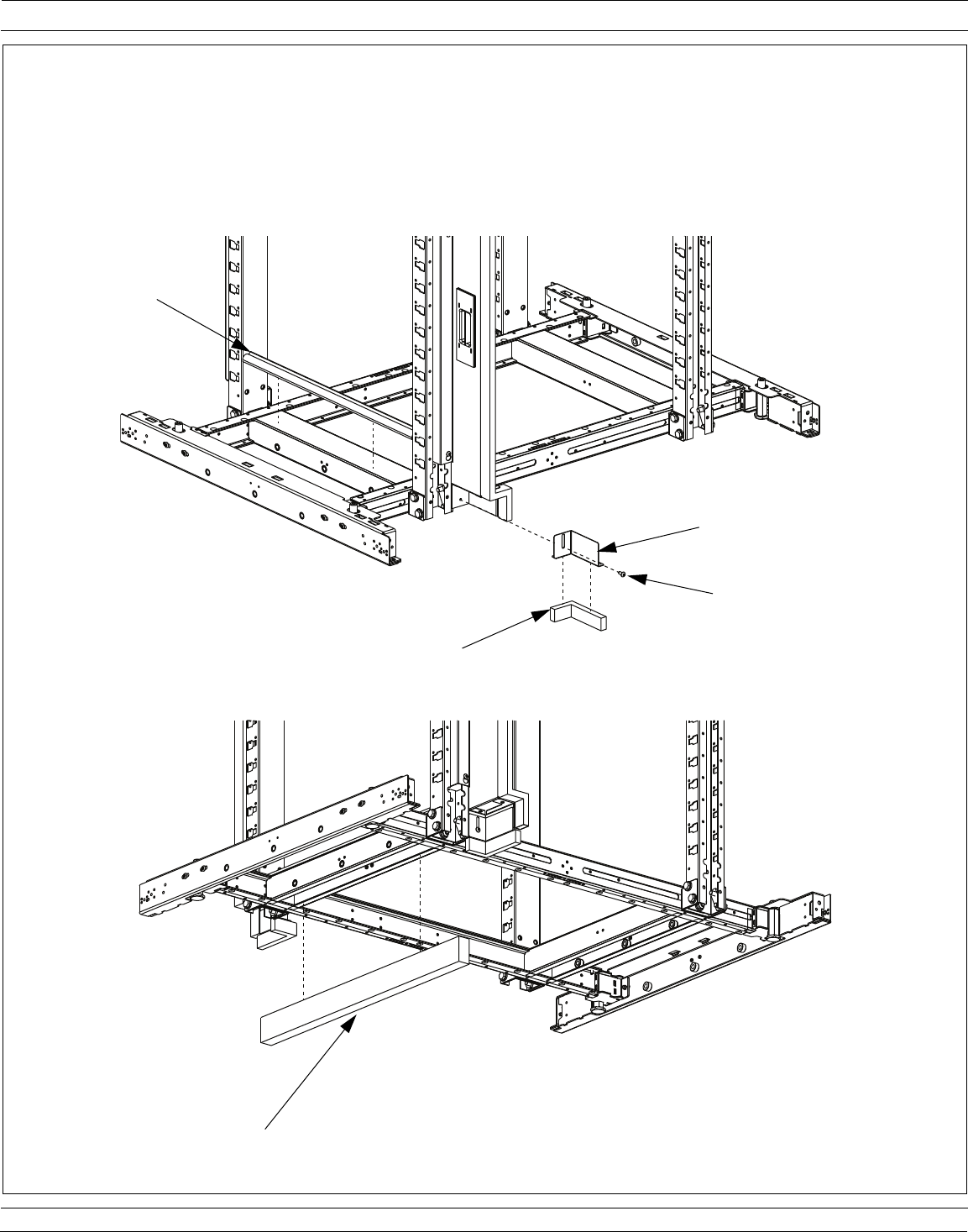

Foam Seal
Bottom Foam Seal
Caster Seal
Bracket
M5X0.8 Torx
Screw
Equipment
Seal
