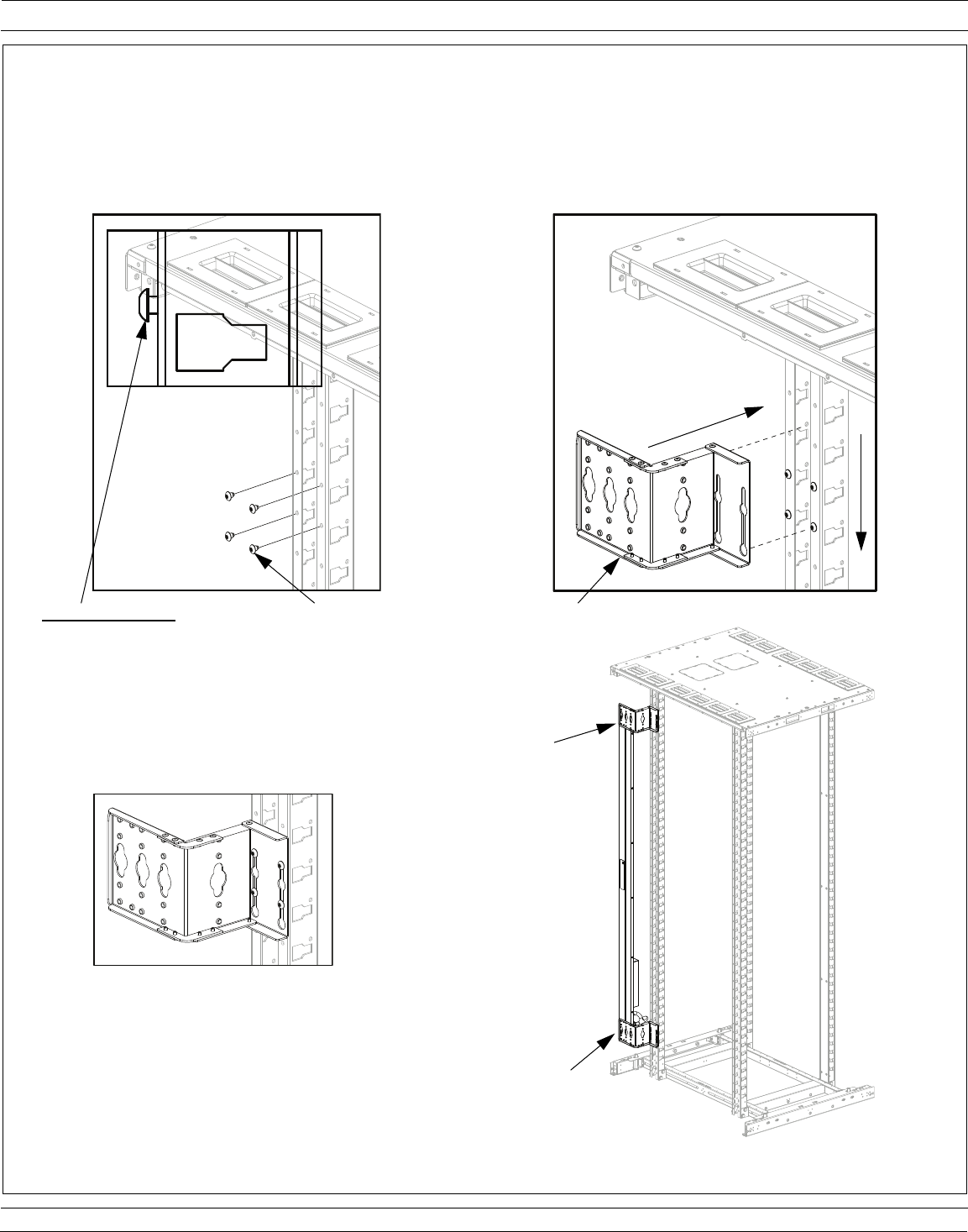

PDU Bracket Kit Installation

• Install [4] M5 Torx Screws into desired top location of cabinet post, as shown below

• Do not tighten screws - Leave a gap between screw and cabinet post for bracket thickness

• Place Top PDU Bracket over screw heads and slide up (or down, depending on mounting side of cabinet)

• Install Bottom PDU Bracket at desired distance from Top PDU Bracket

• Tighten [8] M5 Torx Screws

[4] M5 Torx Screws

(use T25 Torx bit)

PDU Bracket

(installed)

Top PDU Bracket

Bottom PDU Bracket

DO NOT TIGHTEN

(Leave Gap Between

Screw and Cabinet Post)
