Split/Hinged Side Panels (N21SPH, N22SPH, N51SPH, N52SPH)

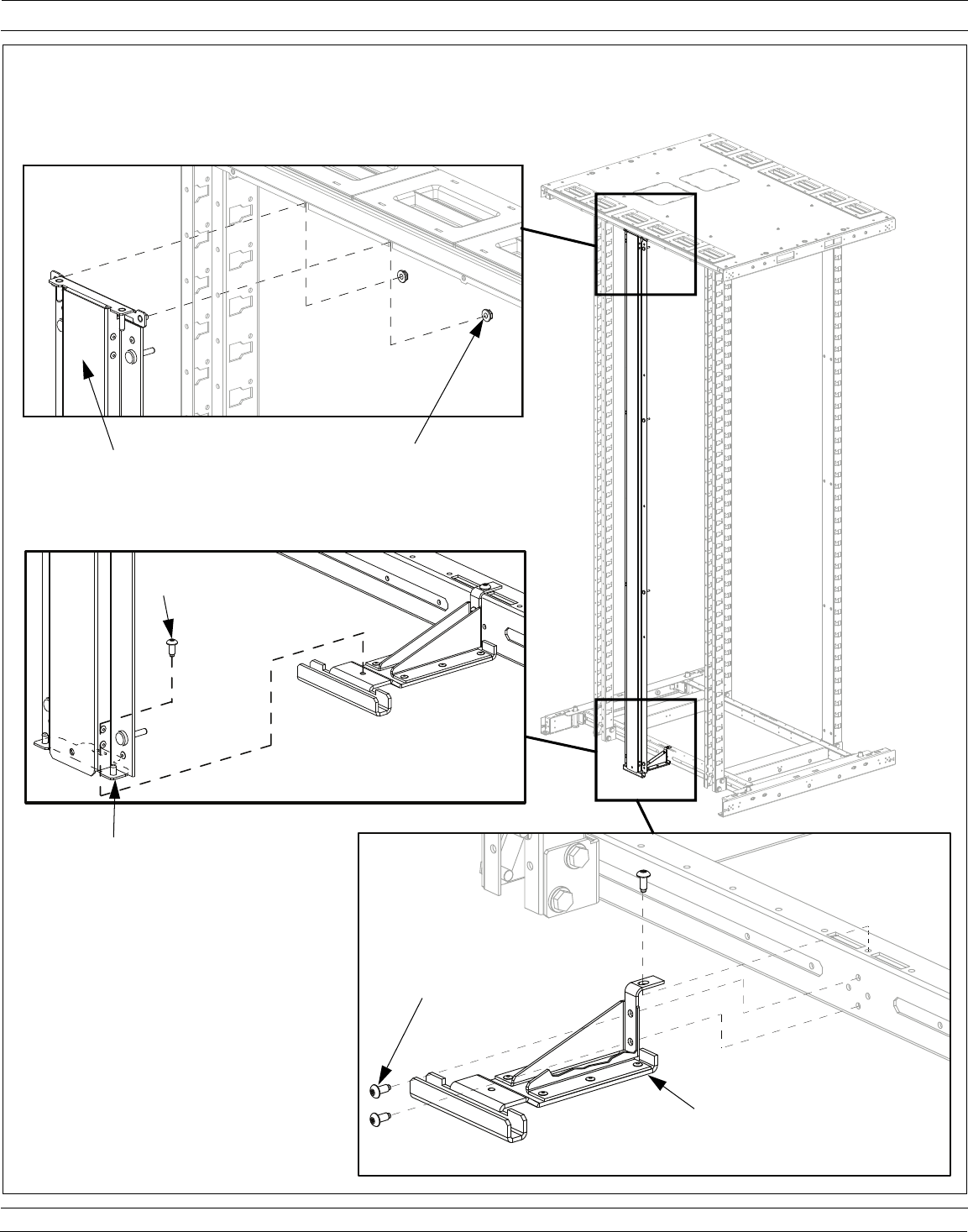

• VIEW 3 Secure Bottom Support Bracket to cabinet frame with [3] M5 Torx Screws

• VIEW 1, 2 Secure Vertical Support Bracket to cabinet frame and bottom support bracket with [1] M5 Torx Screw and [2] Hex Nuts

• See Page 21 for Side Panel Installation Instructions

[3] M5 Torx Screws

(use T25 Torx bit)

Bottom Support Bracket

(Part of bracket cut away to

show detail)

Vertical Support Bracket

(Top)

Vertical Support Bracket

(Bottom)

[2] Hex Nuts

(use 6mm Socket

Wrench)

[1] M5 Torx Screw

(use T25 Torx bit)
