In-Row Side Panel (Removal and Installation)

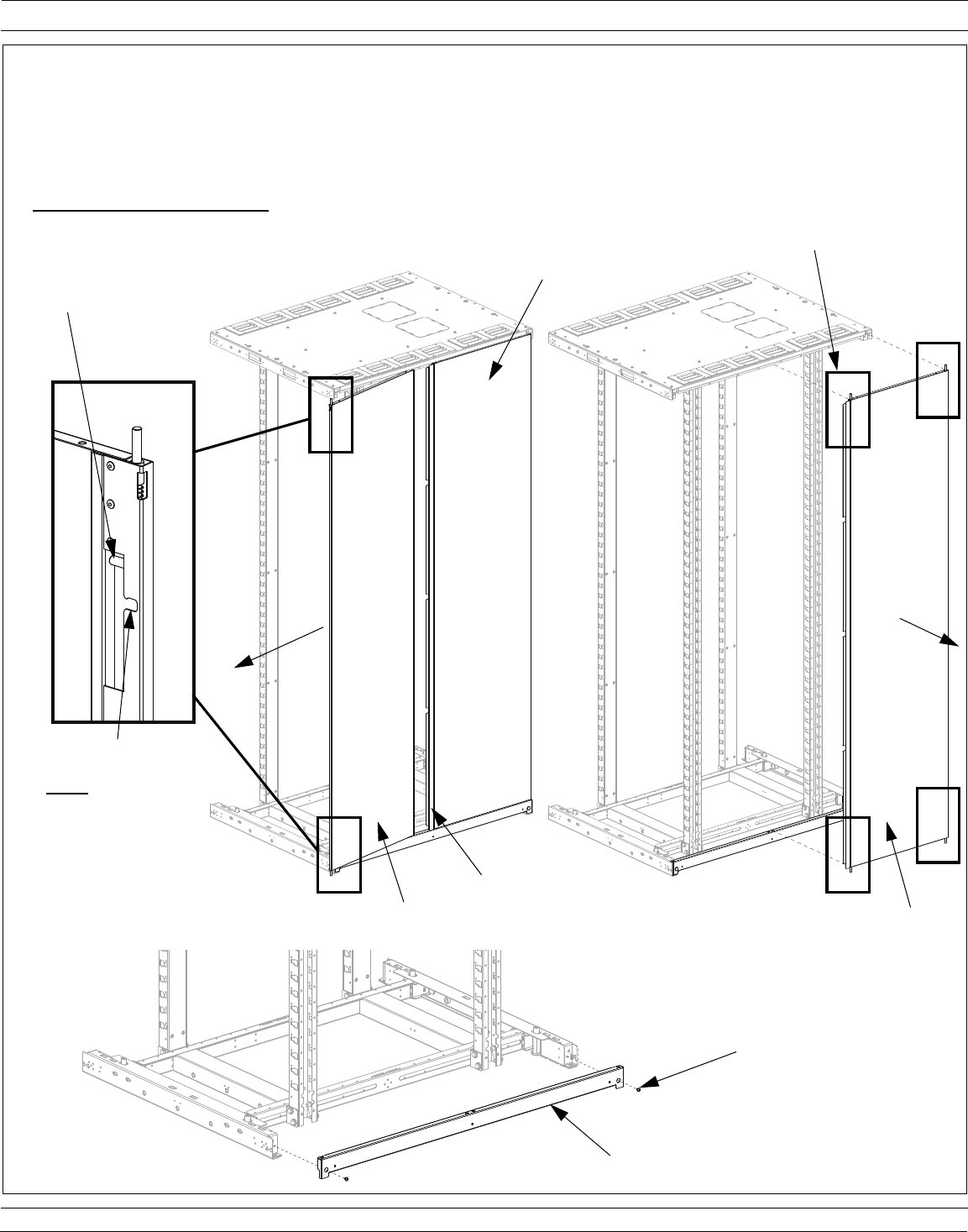

• Pull [2] Spring Loaded Hinge Pins to release Front Side Panel from cabinet frame
• Remove Front Side Panel by pulling panel out of Rear Side Panel channel (towards front of cabinet)
• Pull [4] Spring Loaded Hinge Pins to release Rear Side Panel from cabinet frame
• REVERSE STEPS to install In-Row Side Panels
IMPORTANT: Install Rear Side Panel First
In-Row Side Panel Bracket Removal
• Remove [2] Torx Screws and remove In-Row Side Panel Bracket from cabinet frame
[2] M5 Torx Screws
(use T25 Torx bit)
Spring Loaded Hinge Pin
(Top and Bottom)
Move Finger Pull into
Slot to Lock Hinge Pin
in
OPEN position
Rear Side Panel Channel
Spring Loaded Hinge Pins
[4] Locations
Rear Side Panel
Front Side Panel
In-Row Side Panel Bracket
Rear Side Panel
