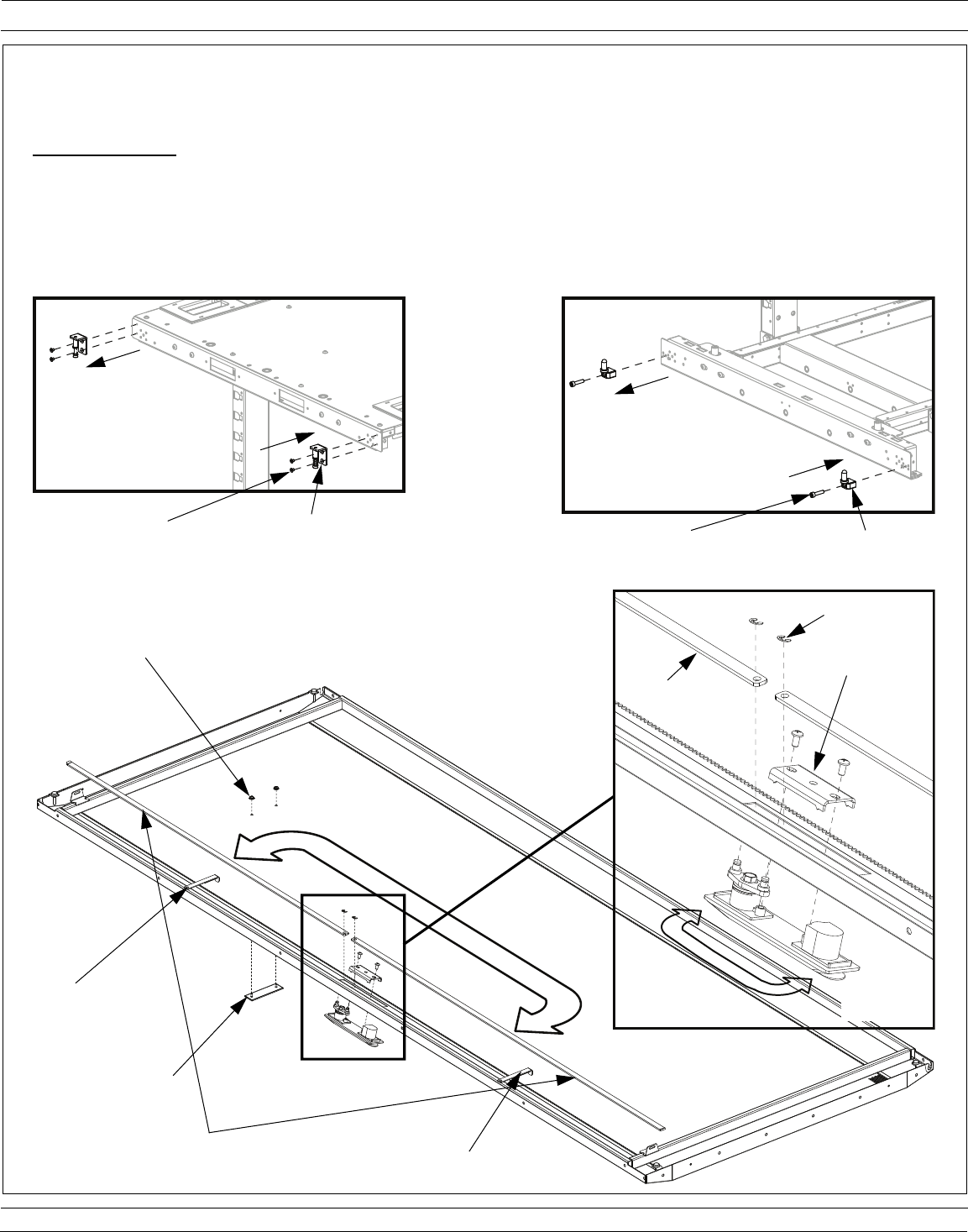

Single Hinge Door (Door Handle Direction Reversal)

• VIEW 1, 2 Remove Top and Bottom Hinge Brackets from current location (remove top hinge screw, if necessary)

• VIEW 1, 2 Install Top and Bottom Hinge Brackets on opposite side of cabinet (re-install top hinge screw, if necessary)

Door Handle Reversal (Lay door on a flat surface) - VIEW 3, 4

• Remove [2] E-clips from Door Handle Cam and exchange positions of Top and Bottom Door Rods

• Remove Door Handle Backing Plate and rotate position of Door Handle 180º

• With Door Handle repositioned, secure Door Handle Backing Plate to Door Handle

• Attach Top and Bottom Door Rods to Door Handle Cam with [2] E-clips (ensure that door rods are behind door rod guides)

• Remove PANDUIT label and re-attach in correct orientation near top of door

• Reinstall Single Hinge Door per instructions on Page 16

Top Hinge Bracket

[2] M4 Screws

(use 2.5mm Allen Key)

Bottom Hinge Bracket

M6 Torx Screw

(use T30 Torx bit)

Door Rods

(exchange positions)

Door Rod Guide

Door Rods

(exchange positions)

[2] Hex Nuts

(use 8mm socket wrench)

PANDUIT Label

Door Rod

Door

Handle

Backing

Plate

[2] E-Clips

Door Handle

(rotate 180º)

Door Rod Guide
