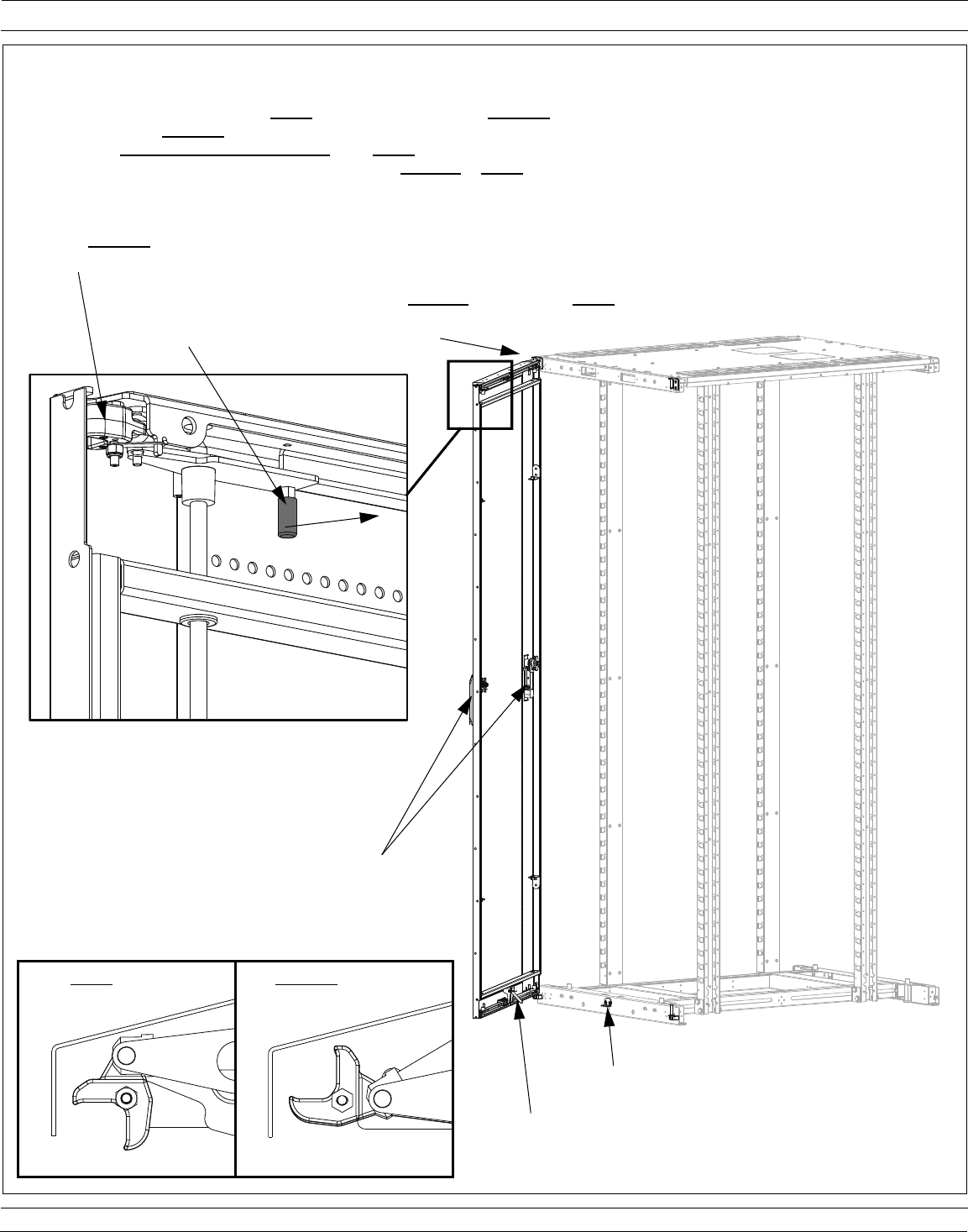

Dual Hinge Door (Installation)

• Open both swing handles

• VIEW 1 Ensure one top latch is

OPEN (VIEW 3) and the other is CLOSED (VIEW 4; pull red finger handle to toggle latches)

• Lift door (with

CLOSED bottom latch) onto bottom hinge pin

• VIEW 2

While supporting weight of door, align OPEN top latch with cabinet and push door against cabinet until latched

• VIEW 1 Pull red finger handle to toggle top latch of

open side to OPEN (VIEW 3) position

• Close both swing handles

• Close door

Door Lift Pin

Lift Pin Bracket

Red Finger Pull

Push Door Towards Cabinet

(ensure that: both swing handles are open

and

open side latch is toggled OPEN, as

shown in VIEW 3)

Swinghandles

Latch in CLOSED Position

{See VIEW 4)

OPEN POSITION CLOSED POSITION

VIEW 3 VIEW 4
