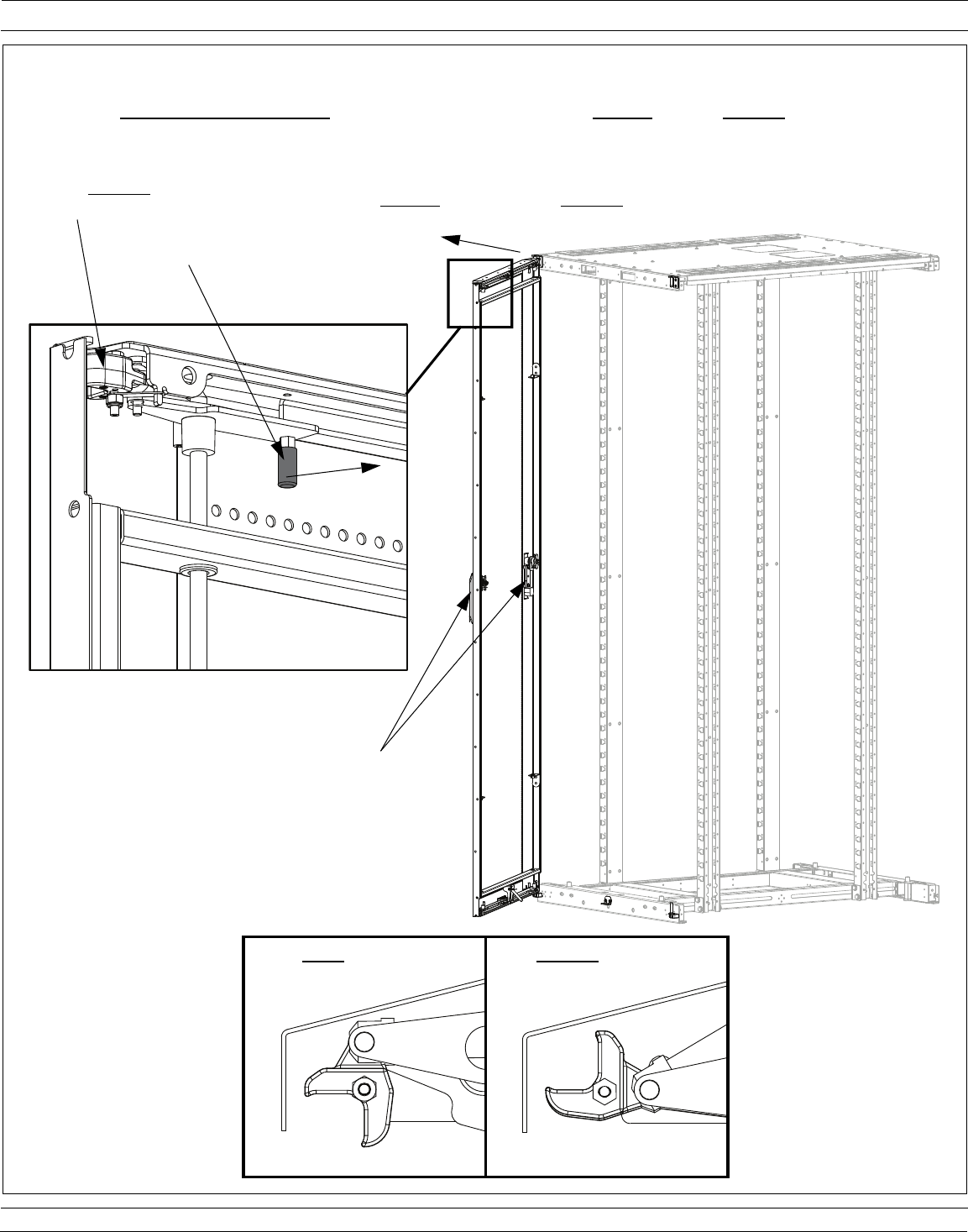

Dual Hinge Door (Removal)

• Open both swing handles

• VIEW 1

While supporting weight of door, pull red finger handle to toggle latch of open side of door to CLOSED position (VIEW 4)

• VIEW 2 Remove door from cabinet frame by pushing top of hinged side of door away from cabinet

• Lift door off bottom hinge pin

Red Finger Pull

OPEN POSITION CLOSED POSITION

Push Door Away From Cabinet

(ensure that: both swing handles are open and

open side latch is toggled to CLOSED position as

shown in VIEW 4)

Latch in

CLOSED Position

{See VIEW 4)

VIEW 3 VIEW 4

Swinghandles
