Installation instructions

INSTRUCTIONS CM598G
For Technical Support: www.panduit.com/resources/install_maintain.asp
Removable Inserts
Overhead Cable
Opening Bezel
Page 11 of 28

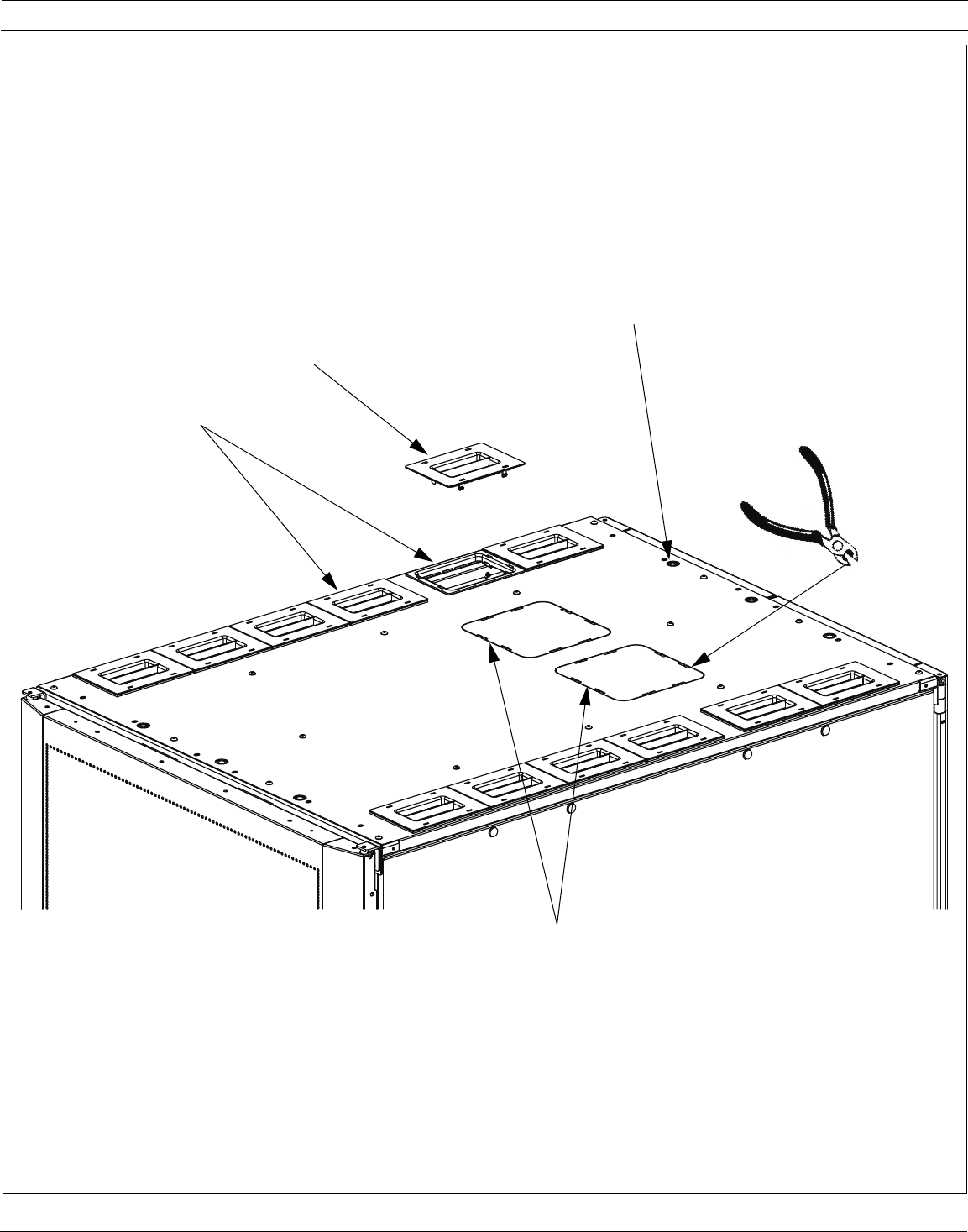

Overhead Cable Openings
• Remove Bezel Insert to allow for overhead cable entry
• Cut [8] tabs with wire cutter to open large cable openings - OPTIONAL
• Install M10 threaded rod into [6] tapped holes, if desired
• [2] 152.4mm x 152.4mm [6” x 6”] openings can be used to route power overhead
• PANDUIT
C OOL B OOT
TM
products can be used to seal around cables/fiber to prevent hot air recirculation
[6] M10 Threaded Holes
OPTIONAL
[2] 152.4mm x 152.4mm Openings
[6” x 6”]
