Equipment Rail Adjustment
• Loosen M10 Hex Head Screw at top and bottom of rear equipment rail
• Adjust equipment rail to desired positon
• Tighten M10 Hex Head Screw to 30.0 +/- 5.0 N-m [22.1 +/- 3.7 Ft-lbs]
NOTE: Front equipment rails are in a fixed position

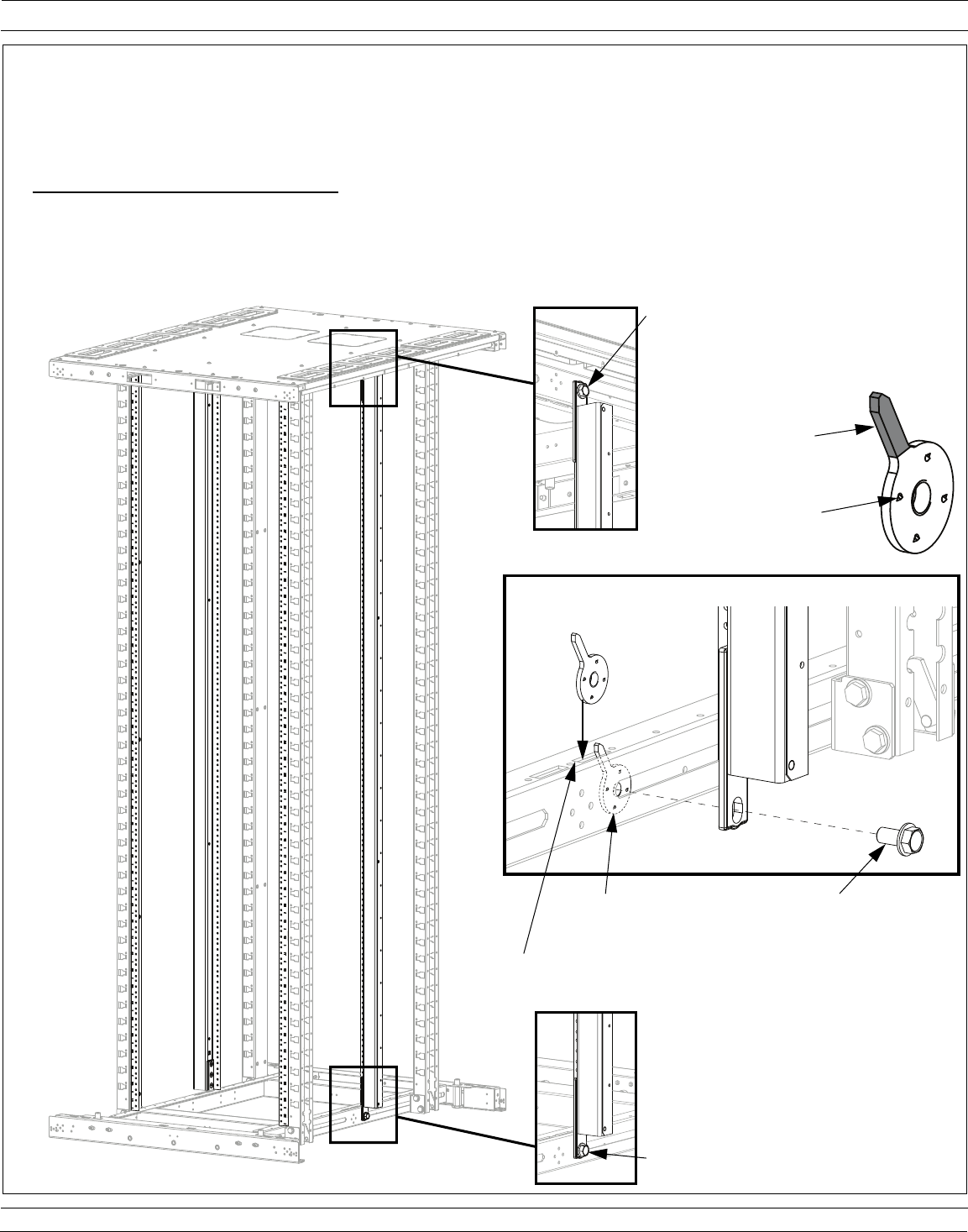

Uninstall/Re-install and Move Equipment Rails (Top and Bottom Locations)
• Remove [2] M10 Hex Screws at top and bottom of Equipment Rail
• Remove [2] Equipment Rail Mount Nuts through slots of Front-to-Back Beam
• REVERSE STEPS to re-install Equipment Rails (insert Equipment Rail Mount Nuts through slots of Front-to-Back beam while holding
finger grip of mount nut; ensure that barbed surface of Equipment Rail Mount Nut faces outside of cabinet)
M10 Hex Head Screw
(use 15mm socket wrench)
M10 Hex Head Screw
(use 15mm socket wrench)
UNINSTALL/RE-INSTALL AND MOVE EQUIPMENT RAILS
M10 Hex Head Screw
(use 15mm socket wrench)
Equipment Rail
Mount Nut
Slot of Front-to-Back Beam
Equipment Rail
Mount Nut
(Finger Grip Area)
Barbed Surface
(face to outside
of cabinet)
