Datasheet

DC 3-wire type
a
b
LED
Sensors 2 m cable length type (mm in) M12 plug-in connector type (mm in)
Shielded type a b a b
M8 GX-M8□ 33 1.30 25 0.98 45 1.77 24 0.94
M12 GX-M12□ 35 1.38 25 0.98 50 1.97 30 1.18
M18 GX-M18□ 39 1.54 28 1.10 50 1.97 28 1.10
M30 GX-M30□ 43 1.69 32 1.26 55 2.17 32 1.26
LED
a
b
c
Sensors 2 m cable length type (mm in) M12 plug-in connector type (mm in)
Non-shielded type a b c a b c
M12 GX-MK12□ 55 2.17 42 1.65 5 0.20 66 2.60 42 1.65 5 0.20
M18 GX-MK18□ 60 2.36 44 1.73 8 0.32 72 2.83 44 1.73 8 0.32
M30 GX-MK30□ 63 2.48 41 1.61 13 0.51 74 2.91 41 1.61 13 0.51
DC 2-wire type
a
b
LED
Sensors 2 m cable length type (mm in)
M12 plug-in connector type (mm in)
(M8 size: M12 pigtailed type,
On sale soon)
Standard type, Long range type a b a b
M8 GX-M(L)8□-U (-J) 33 1.30 25 0.98 – 24 0.94
M12 GX-M(L)12□-U (-Z) 35 1.38 25 0.98 50 1.97 30 1.18
M18 GX-M(L)18□-U (-Z) 39 1.54 28 1.10 50 1.97 28 1.10
M30 GX-M(L)30□-U (-Z) 43 1.69 32 1.26 55 2.17 32 1.26
Cylindrical Inductive Proximity Sensor
GX-M SERIES

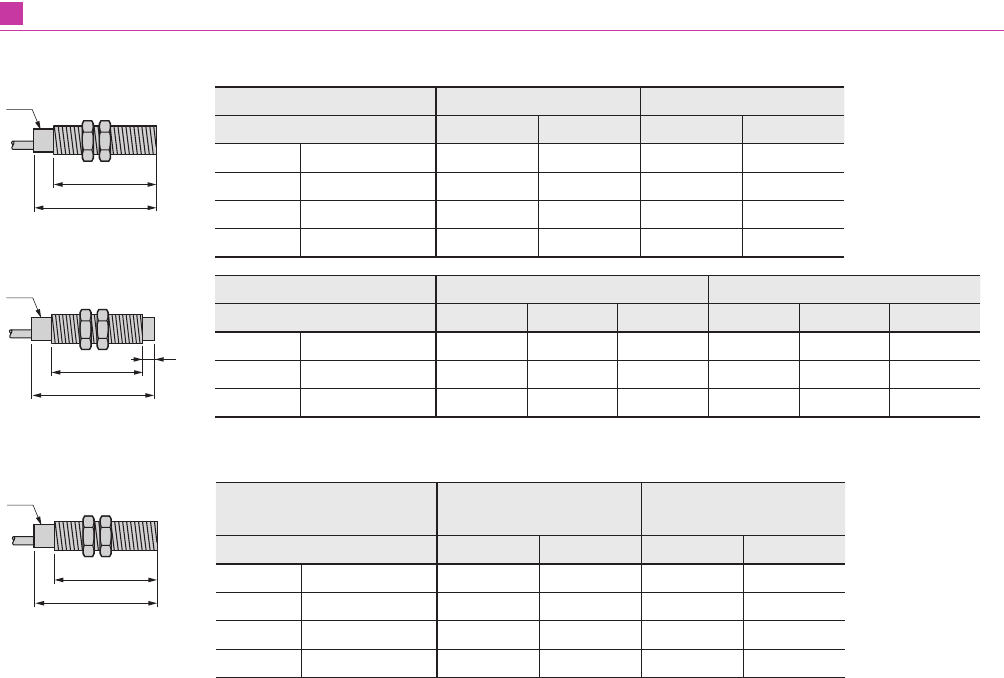

DIMENSIONS (Unit: mm in)
13
