Chapter 5 Internet Fax

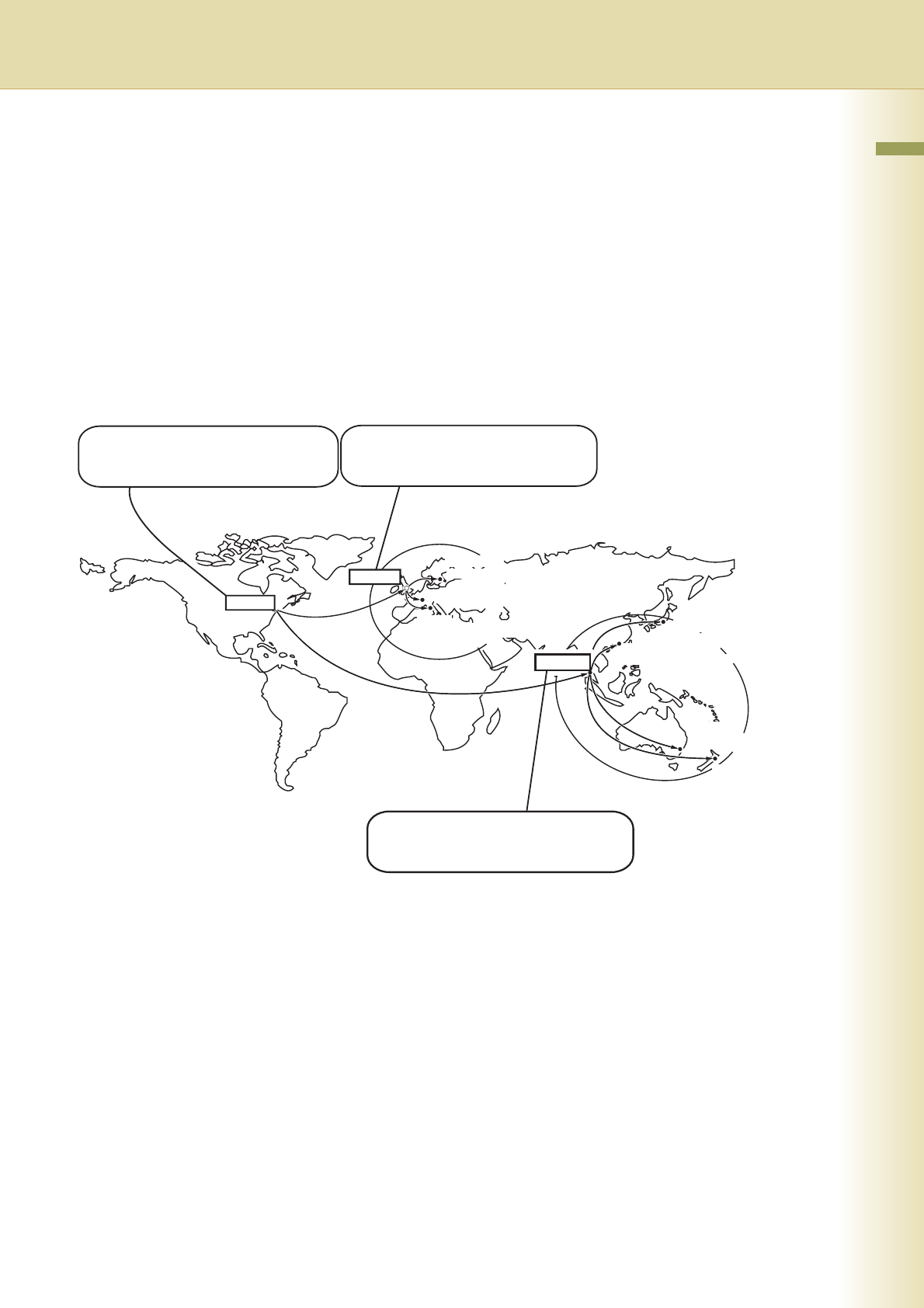

Example of a Relayed Transmission Network
An example of a Relayed transmission network using relay stations at two locations is shown below.
• This network has an initial sending station (New York) connected to relay stations (London and
Singapore).
• Documents are transmitted from the relay stations (London/Singapore) to end receiving stations
(Stockholm, Rome, Tokyo, Hong Kong, Sydney and others) via the telephone lines.
• This network uses relay stations at two locations.
• A single Relayed transmission request made from the initial sending station (New York) allows a
document to be transmitted to the end receiving stations (Stockholm, Rome, Tokyo, Hong Kong,
Sydney and others) via the relay stations (London, Singapore).
New York
Stockholm
Tel. No.: 46 8 111 1234
Rome
Tel. No.: 39 6 111 1234
Sydney
Tel. No.: 61 2 111 1234
Wellington
Tel. No.: 64 4 111 1234
Tokyo
Tel. No.: 81 33 111 1234
Berlin
Tel. No.: 46 611 111 1234
New York
Email Address: [e-mail]
Host Name: newyork
Relay XMT Password: usa-rly
London
Email Address: [e-mail]
Host Name: london
Relay XMT Password: uk-rly
Hong Kong
Tel. No.: 852 23123456
Singapore
Email Address: [e-mail]
Host Name: singapore
Relay XMT Password: sg-rly
London
Singapore
