Getting started

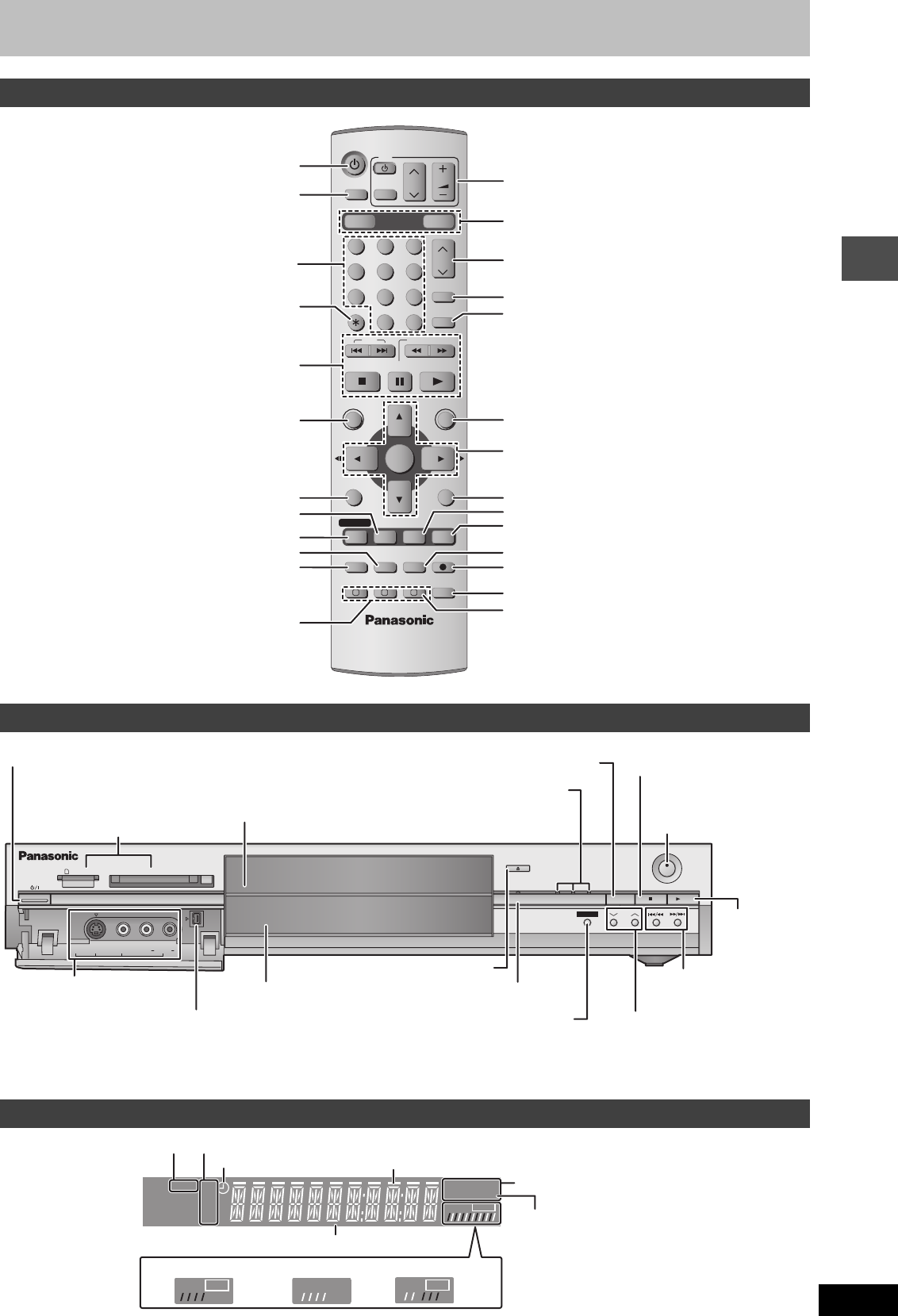

Control reference guide
Rear panel terminals (➡ page 7, 8)
Remote control
VOLUME
CH
DVD
TV
AV
123
456
78
0
9
MANUAL SKIP
CH
CANCEL
INPUT SELECT
SKIP
STOP
PAU SE
PLAY/x1.3
SLOW/SEARCH
FUNCTIONS
ENTER
DIRECT NAVIGATOR
TOP MENU
RETURN
SUB MENU
CREATE
CHAPTER
TIMER
PROG/CHECK
REC MODEERASE
REC
AUDIO
TIME SLIP
STATUS
DISPLAY
F
A B C
DVD
SD/PC
DRIVE SELECT
G-Code
-/--
Turn the unit on (➡ page 9)
Input select (AV3, AV4 or DV) (➡ page 33)
Select channels and title numbers etc./
Enter numbers
Cancel
Basic operations for recording and play
Show Top menu/Direct navigator (➡ page 20, 28)
Show on-screen menu (➡ page 26)
Show timer recording programme screen
(➡ page 18)
Erase items (➡ page 22)
Programme recording standby/release
(➡ page 17, 18)
Show sub menu (➡ page 28)
Manual tuning operation (➡ page 42)
Television operations (➡ page 11)
Channel select (➡ page 14)
Show G-
CODE screen (➡ page 17)
Skip 30 seconds forward (➡ page 21)
Show FUNCTIONS window (➡ page 35)
Selection/Enter, Frame-by-frame (➡ page 9, 21)
Return to previous screen
Show status messages (➡ page 27)
Skip the specified time/Display the television image
as a picture-in-picture (➡ page 15, 21)
Start recording (➡ page 14)
Select audio (➡ page 22)
Create chapter (➡ page 22)
Change recording mode (➡ page 14)
Select drive (DVD, SD or PC)
(➡ page 14, 20, 25)
Main unit
OPEN/CLOSE
REC
/
x
1.3
TIME SLIP
CH
TIME SLIP
DRIVE SELECT
SD PCDVD
SD CARD PC CARD EJECT
AV3
S-VIDEO IN VIDEO IN AUDIO IN DV IN
R
L/MONO
Connection for camcorder
etc. (➡ page 33)
Skip the specified time/Display the television
image as a picture-in-picture (➡ page 15, 21)
Disc tray (➡ page 14, 20)
Remote control signal sensor/
Start recording (➡ page 14)
Display (➡ below)
Stop (➡ page 14, 21)
Time Slip indicator (➡ page 15)
Standby/on switch (Í/I) (➡ page 9)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
SD/PC card slots (➡ page 24)
Start play
(➡ page 20)
Lights when the DVD, SD or
PC drive is selected
Channel select
(➡ page 14)
Skip/Slow/Search
(➡ page 21)
Open/close disc tray (➡ page 14, 20)
Connection for digital
video (DV) camcorder
(➡ page 33)
Select drive (➡ page 14, 20, 25)
The unit’s display
SD PC
XP
SP
LP
EP
DVD
VCD
.MIX
R
-
AM
REC
PLAY
REC
PLAY
PLAY
REC
Main display section
Disc type
Recording
Playback
Recording/Playback
D.MIX (multi-channel DVD-Audio only)
When lit: down-mixed audio is played.
When off: the disc prevents down-mixing
so only the two front channels
can be played.
Recording mode
Timer recording indicator
Transferring (dubbing) in progress indicator
Card indicator
