Packet Power™ Smart Power Cable User’s Manual
Copyright 2012 © Packet Power, LLC.
3

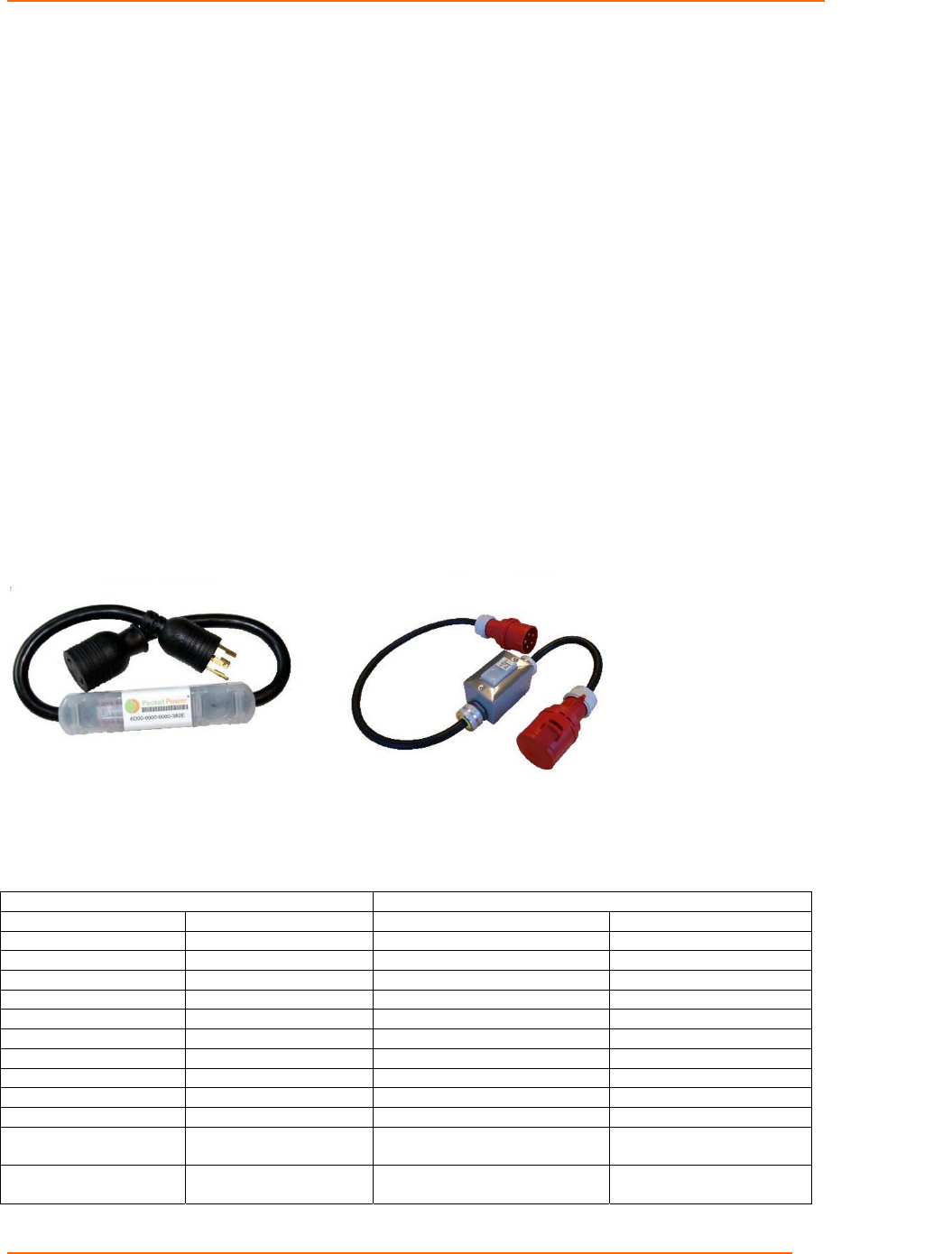

Figure 2: “S” Cable
Figure 1: “R” Cable
Chapter 1: Introduction
Smart Power Cable Overview
Service types
Smart Power Cables are power cables with embedded wireless power monitors that transmit
real time power and energy usage data wirelessly to a central Gateway module. The Smart
Power Cable is a monitoring-only device and it cannot disconnect, switch or otherwise
interfere with the electrical current flowing through the cable and is inherently failsafe with a
no risk of interrupting the circuit in the event of failure to the monitoring device. The
monitoring mechanism is powered from the cable itself and consumes less than 0.6W of
power.
The cables are provided in an “S” (single phase) and “R” (three phase and high current
single phase) form. Panel-mounted “P” models (independent power monitors with no cable
assembly) are covered in a separate manual.
The appropriate Smart Power Cable is selected based on the appropriate voltage, current
and connector type shown in the chart below. Smart Power Cables are available in just
about any connector type and are universally operational at 50/60 Hz.
S Model Cables R Model Cables
V
oltage Amperage
V
oltage
A
mperage
1Ø 120VAC 10 amps or under 1Ø 120VAC 50 amps
1Ø 120VAC 15 amps or under 1Ø 208 to 240VAC 50 amps
1Ø 200 to 240VAC 15 amps or under 1Ø 200 to 240VAC 60 amps
1Ø 200 to 240VAC 16 amps or under 1Ø 240VAC 63 amps
1Ø 120VAC 20 amps 3Ø Wye 120V/208V 20 amps
1Ø 200 to 240VAC 20 amps 3Ø Wye 120V/208V 30 amps
1Ø 200 to 240VAC 20 amps 3Ø Wye 120V/208V 50 amps
1Ø 120VAC 30 amps 3Ø Wye 120V/208V 60 amps
1Ø 208VAC 30 amps 3Ø Delta 120/208VAC 30 amps
1Ø 200 to 240VAC 32 amps 3Ø Delta 120/208VAC 60 amps
3Ø Wye either 240/415VAC
or 200/346VAC
16 amps
3Ø Wye either 240/415VAC
or 200/346VAC
32 amps
