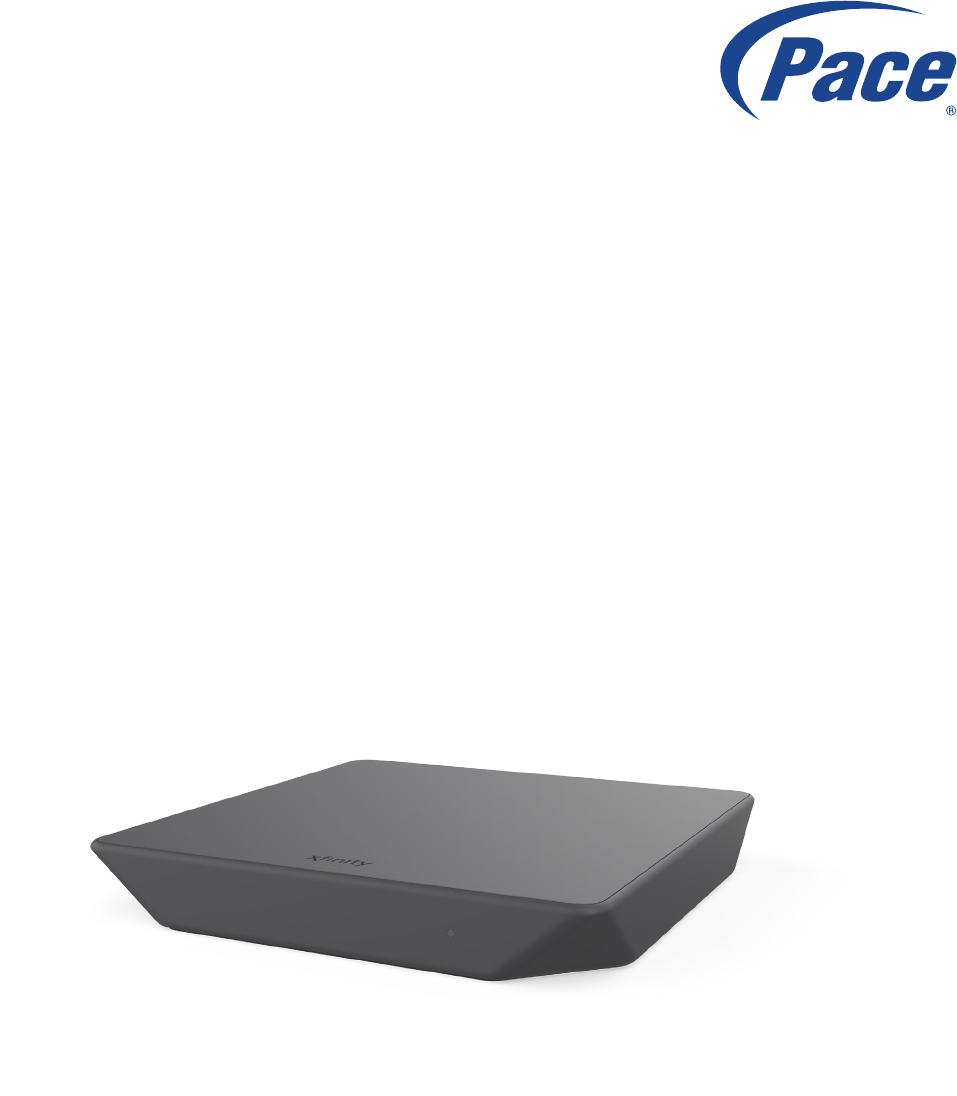

USER GUIDE Pace Xi5 PX051AEI BRINGING TECHNOLOGY HOME www.pace.
CONTENTS SAFETY INFORMATION................................................................................................... 3 IMPORTANT SAFETY INSTRUCTIONS............................................................................ 3 Safety aspects of connections.................................................................................... 5 Regulatory information............................................................................................... 5 REAR PANEL and BASE....................
SAFETY INFORMATION This digital set-top box has been manufactured and tested with your safety in mind. However, improper use can result in potential electric shock, property damage or fire hazards. To avoid defeating the safeguards that have been built into your set-top box, please observe the precautions discussed in this document.
SAFETY INFORMATION (cont.) In addition to the Important Safety Instructions, please read the Safety Information below. Power sources The model number, serial number, and electrical rating of this set-top box are on a label on its base. You must operate your set-top box only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.
SAFETY INFORMATION (cont.) Regulatory information Safety aspects of connections Full details of the rear panel are on page 6. Connecting To ensure correct operation, use this set-top box only with the Paceapproved power supply unit provided. If you use an unapproved alternative, you will invalidate the warranty. Always connect the cord from the power supply unit to your set-top box before you insert the power supply unit into the wall socket-outlet.
REAR PANEL AND BASE Rear panel ETHERNET From your home network (optional) HDMI TV HDMI output to your TV INPUT HDMI input (under label). For future use. Ethernet INPUT (behind label) TV Power POWER (Make this connection last of all) Connect to your home network (optional). Connect another optional HDMI device (allowing the device’s output to loop through the set-top box to the TV). Connect to the HDMI input on your HDTV. Connect your set-top box’s power supply unit here.
FRONT PANEL AND TOP COVER Front panel IR Receiver Receives signals from your remote control. Do not block. Top Cover Power light Lights when your set-top box is on.
CONNECTING THE EQUIPMENT Typical setup WARNINGS A typical setup is shown on page 9. This shows a Pace Xi5 connected to a high-definition TV via an HDMI cable. You Xi5 receives content from your cable TV service provider via a WiFi connection to a 5 GHz wireless router (this connection can also be made using an Ethernet cable). See page 11 for more information on wireless connections. Your equipment should have been connected up by your installer.
CONNECTING THE EQUIPMENT (cont.) Connecting your equipment For further information, see page 8.
CONNECTING THE EQUIPMENT (cont.) WARNINGS Do not connect your set-top box (or any other equipment such as a TV or VCR) to the power supply until you have properly connected all the other cables. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
CONNECTING THE EQUIPMENT (cont.) Starting the WiFi connection NOTE Your home must have a 5 GHz wireless router or access point that supports Wi-Fi Protected Setup (WPS) so that the set-top box can correctly associate with your wireless network. Consult the instructions for your wireless router or access point to find out what you need to do to initiate a WPS WiFi connection. When you have activated the WPS system on your router or access point, press the base of your set-top box.
TERMS AND CONDITIONS FOR USE OF SOFTWARE (“TERMS”) THE PRODUCT TO WHICH THESE TERMS RELATE (THE “PRODUCT”) INCORPORATES SOFTWARE WHICH IS OWNED BY PACE plc (“PACE”) OR ITS THIRD PARTY LICENSORS (THE “SOFTWARE”). BEFORE USING THE PRODUCT PLEASE READ THESE TERMS. IF YOU DO NOT AGREE TO THESE TERMS YOU MAY NOT USE THE PRODUCT AND SHOULD IMMEDIATELY RETURN THE PRODUCT TO YOUR SUPPLIER. THESE TERMS ALSO APPLY TO ANY MODIFICATIONS, UPDATES OR SUPPLEMENTS TO THE SOFTWARE PROVIDED TO YOU.
TERMS AND CONDITIONS FOR USE OF SOFTWARE (“TERMS”) (cont.) D. Termination These Terms are effective until terminated. You may terminate these Terms by returning the Product to your supplier. These Terms will terminate automatically without notice if you fail to comply with these Terms or any other written agreement between you and Pace. Upon termination you must return the Product to your supplier. E. Disclaimer 1.
www.pace.com Pace and are trademarks and/or registered trademarks of Pace plc.
