Mounting FLEXmax Charge Controller

The GSLC enclosure accommodates up to two FLEXmax charge controllers and a HUB

Communications Manager.

NOTE

: The following instructions are for the FLEXmax 60 or FLEXmax 80 only. The FLEXmax Extreme

charge controller connects directly to the wall and does not need additional brackets.

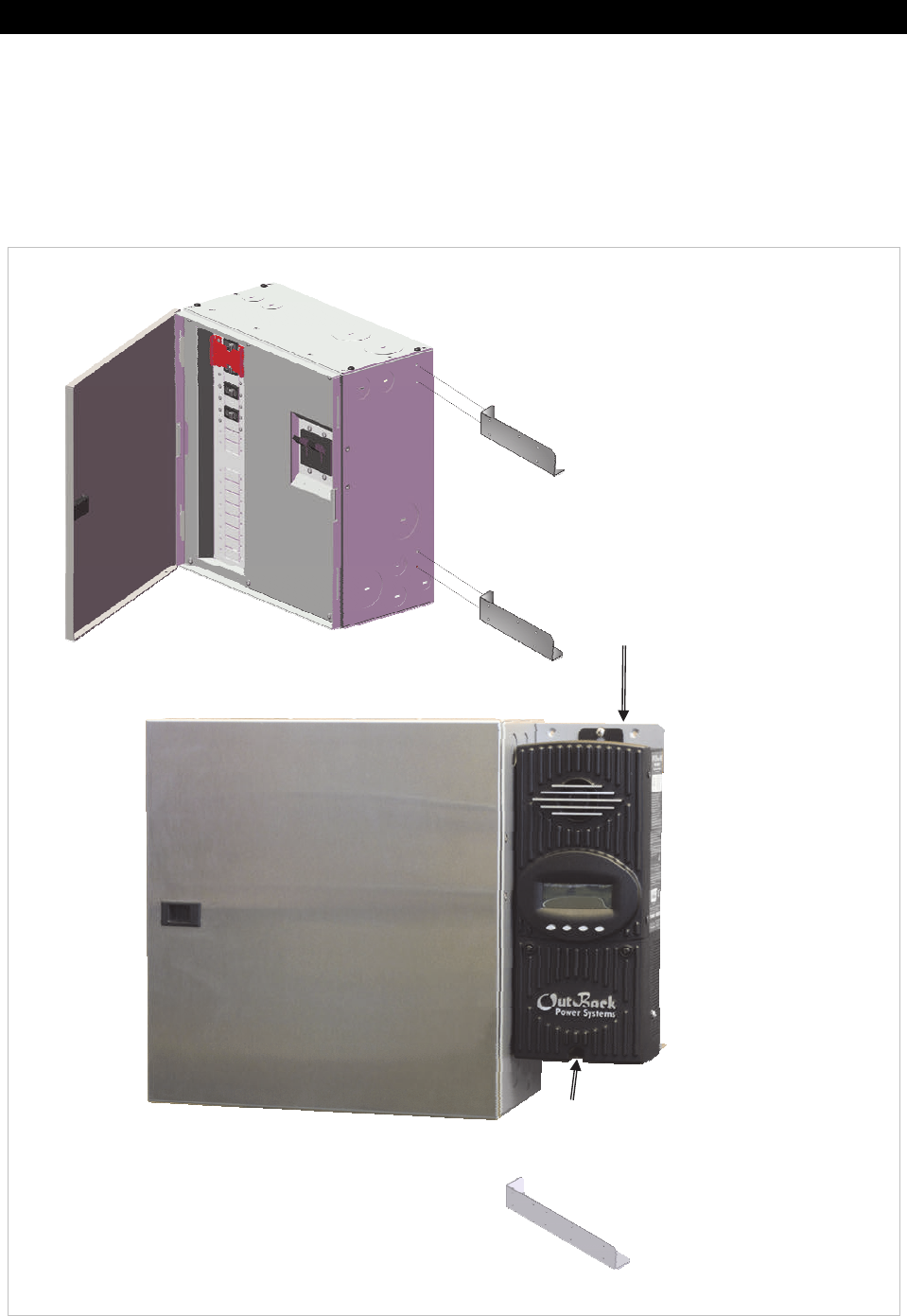

Figure 21 Mounting the Charge Controller to the GSLC Enclosure

2. Align the charge controller with

the center hole on each bracket

and secure with the hardware

provided with the brackets.

To mount the FLEXmax Charge

controller to the side of the GSLC

enclosure:

1. Align the brackets to the

mounting holes and secure the

brackets to the sides of the

enclosure with the hardware

provided with the brackets.

3. Secure to the bottom bracket.

NOTE: This illustration shows only brackets for a

single charge controller. Dual charge

controller brackets are also available and

install the same as the sin

le bracket.

Dual Charge Controller

Bracket
