Remove Top Cover

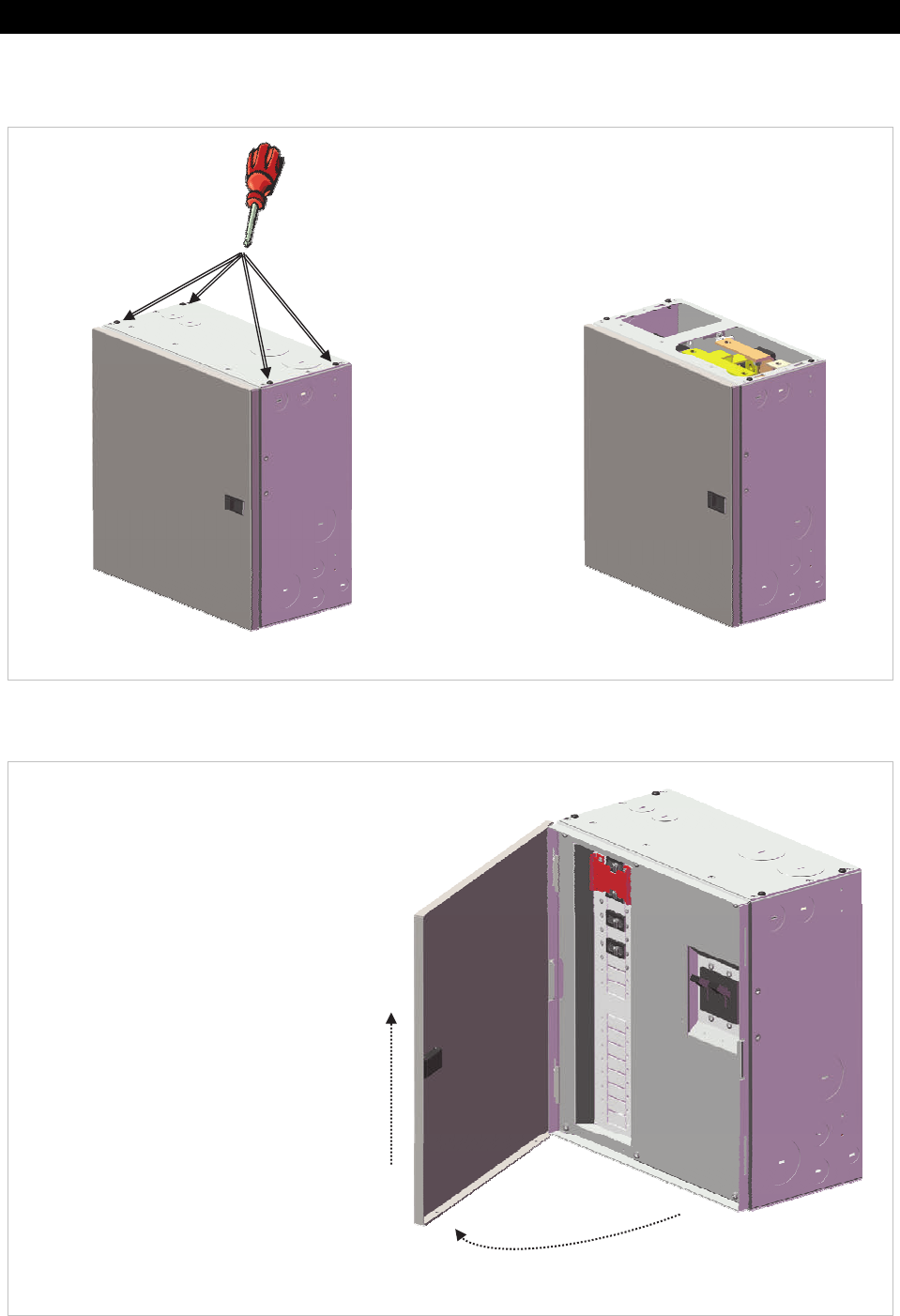

Figure 11 Removing the Top Cover from the GSLC
Remove Front Door
Figure 12 Removing the Front Door from the GSLC
Lift up to remove.
To Remove the Front Door:
1. Open the door to about 90 degrees.
2. Lift the hinges out of the slots at the
inside edge.
Open to 90 degrees
(shown partly open)
To Remove the Top Cover:
1. Remove the four screws; one in each corner.
2. Lift the top off the enclosure.
Enclosure with
Top Removed
