GSLC175-PV-230 – Components

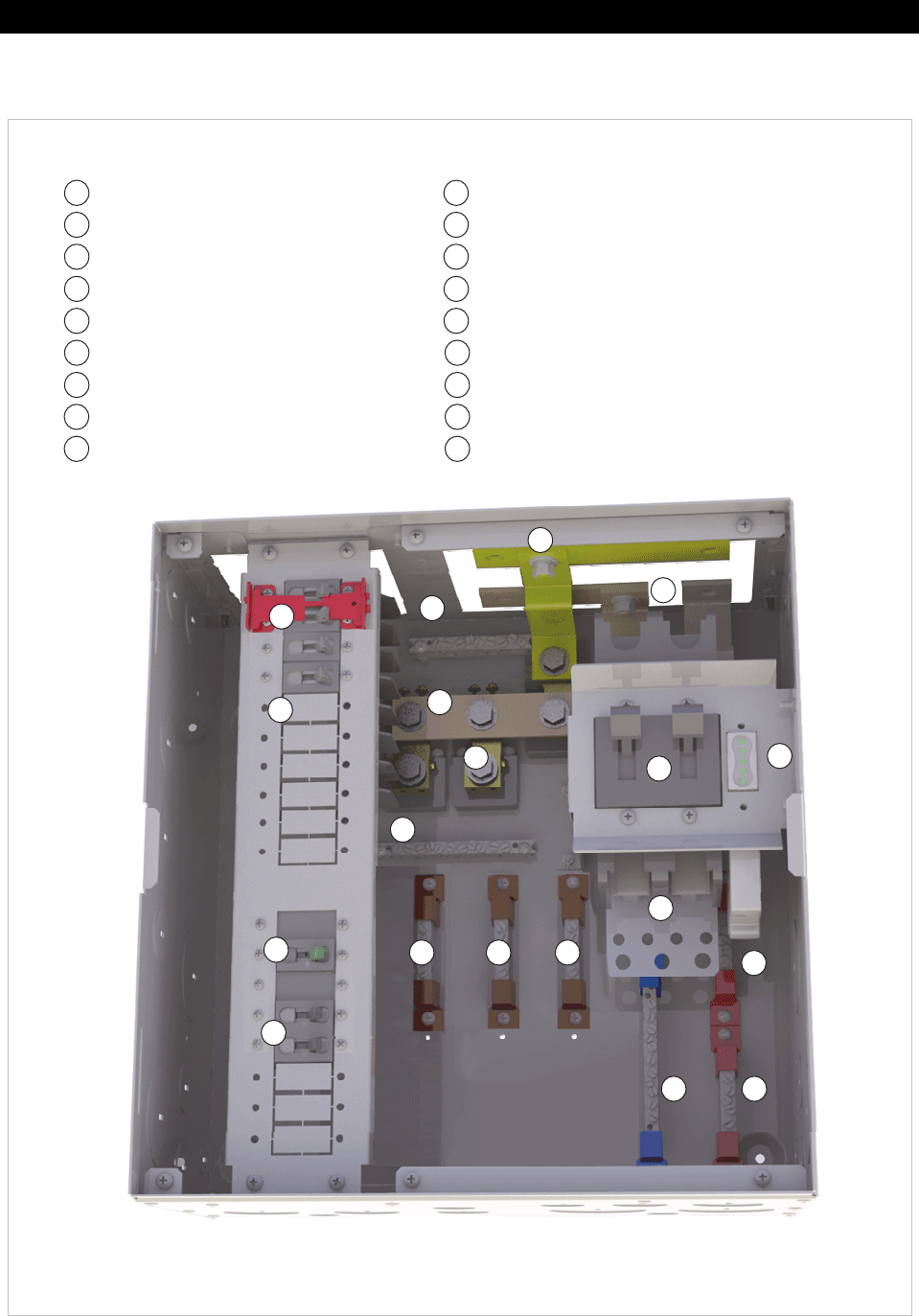

Figure 6 GSLC175-PV-230 Components
Inverter (negative) DC Bus Bars
Negative Terminal Bus Bar (TBB)
Ground TBB
Neutral TBB
PV TBB
DC Positive Cable Plate
Main Inverter Disconnect(s)
Inverter (positive) DC Bus Bars
Shunt(s)
Le
g
end
AC Circuit Breakers
Maintenance Bypass Interlock
AC TBB (Inverter Output)
AC TBB (Grid)
AC TBB (Generator)
PV Input Disconnects
Shunt Bus
FLEXnet DC
PV GFDI
NOTE: The factory wiring has been omitted from this illustration for clarity.
