AXS Card

SunSpec Modbus Interface

Installation Instructions

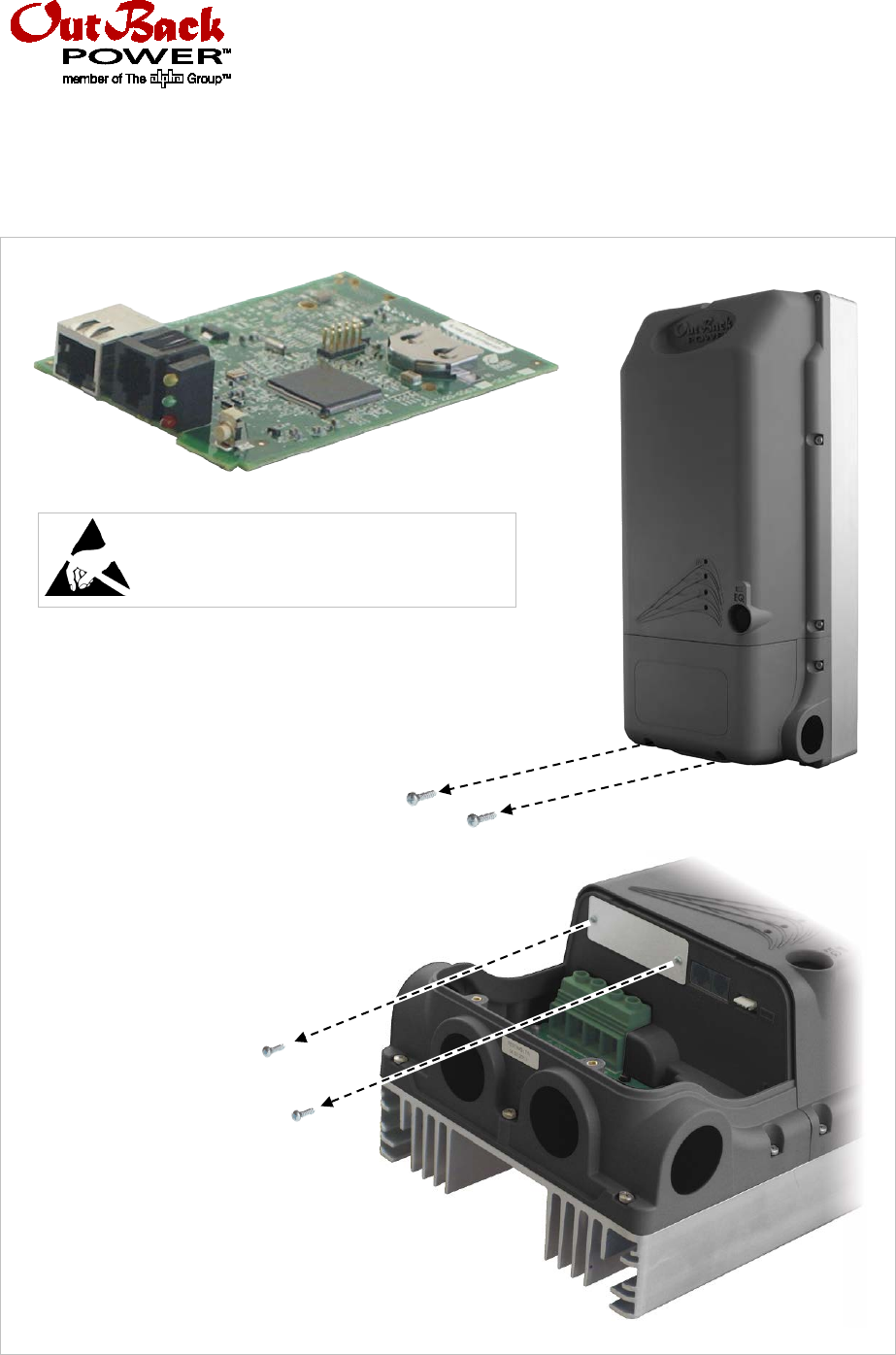

2. Remove the wiring compartment cover.

CAUTION: Equipment Damage

Observe precautions for handling electrostatic

sensitive devices.

3. Remove the blank AXS Card cover.

1. Remove all sources of power from the

FLEXmax Extreme. Wait 5 minutes.

PAGE 1
AXS Card SunSpec Modbus Interface Installation Instructions CAUTION: Equipment Damage Observe precautions for handling electrostatic sensitive devices. 1. Remove all sources of power from the FLEXmax Extreme. Wait 5 minutes. 2. Remove the wiring compartment cover. 3. Remove the blank AXS Card cover.
PAGE 2
AXS Card Installation Instructions 4. Insert the card into the compartment. Seat it firmly. Depress these tabs while inserting. 5. Install the alternate AXS cover (included). NOTE: Attach a ferrite clamp (included) to both the Ethernet cable and the RTS cable after installation. Installation is complete. See the AXS Port SunSpec Modbus Interface Owner’s Manual for use. Contact Information Address: Corporate Headquarters 17825 – 59th Avenue N.E.
