WIRING AND CONFIGURATION OF THE ECG
The AstroDIM dimming profi le can be confi gured with just
one or two dim levels.
Every night, the ECG-integrated timer measures the
operat ing time of the ECG (time between switch-on and
switch-off). Based on the measured operating times of
the previous nights, the AstroDIM algorithm calculates
the operating time of the coming night. Figure 26 shows
four exemplary dimming profi les, displaying how the
AstroDIM algorithm adapts the dimming to the actual
length of the night, centering the dimming profi le around
the half operating time.
For correct operation and special cases, please see
chapter 5.4. (FAQ).

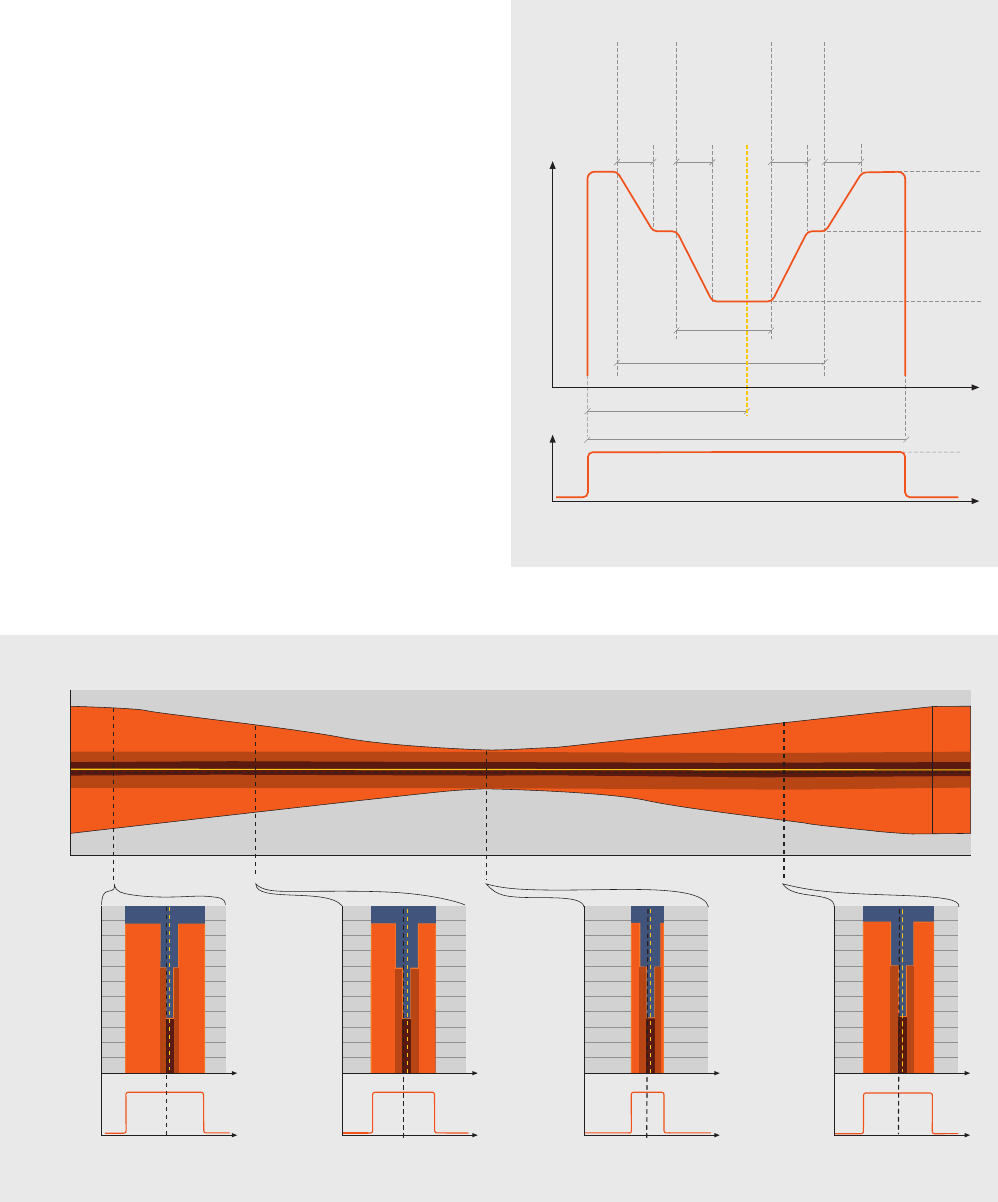

Figure 25: AstroDIM behavior – dim level 2 activated (example).
Figure 26: AstroDIM dimming profi les (examples).
Dim duration 2
Dim duration 1
Half operating time
Operating time
Power-on
level
Dim level 1
Dim level 2
ON
OFF
Time (h)
Time (h)
Fade
time
Fade
time
Fade
time
Fade
time
Power (%)
Start time 1
End time 1
Start time 2
End time 2
Mains
12
03
09
00
06
21
18
15
12
Jan
100 100 100 100
90 90 90 90
80 80 80 80
70 70 70 70
60 60 60 60
50 50 50 50
40 40 40 40
30 30 30 30
20 20 20 20
10 10 10 10
00 0 0
ON ON ON ON
OFF OFF OFF OFF
Operating time Operating time
Operating
time
Operating time
24 h – 15 Jan 24 h – 15 Mar 24 h – 15 Jun 24 h – 15 Oct
Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Length of the night
Local time (h)
Dim level % Dim level % Dim level % Dim level %
Mains Mains Mains Mains
9:28
15:09
