WIRING AND CONFIGURATION OF THE ECG
The StepDIM parameters (power-on level, dim level
and dim fade time) are preset by OSRAM and stored in
the ECG. Notes on the factory settings can be found in
chapter 3.1.
For exact factory settings, please refer to the datasheet
of the respective ECG.
The factory settings can be modifi ed by the user via the
3DIM Tool. In principle, the power-on level can be set low-
er than the dim level. The minimum dim level, however, is
limited by the ECG.
Note: “Low” signal means the SD port fl oating, neither
neutral nor phase are connected to this port.

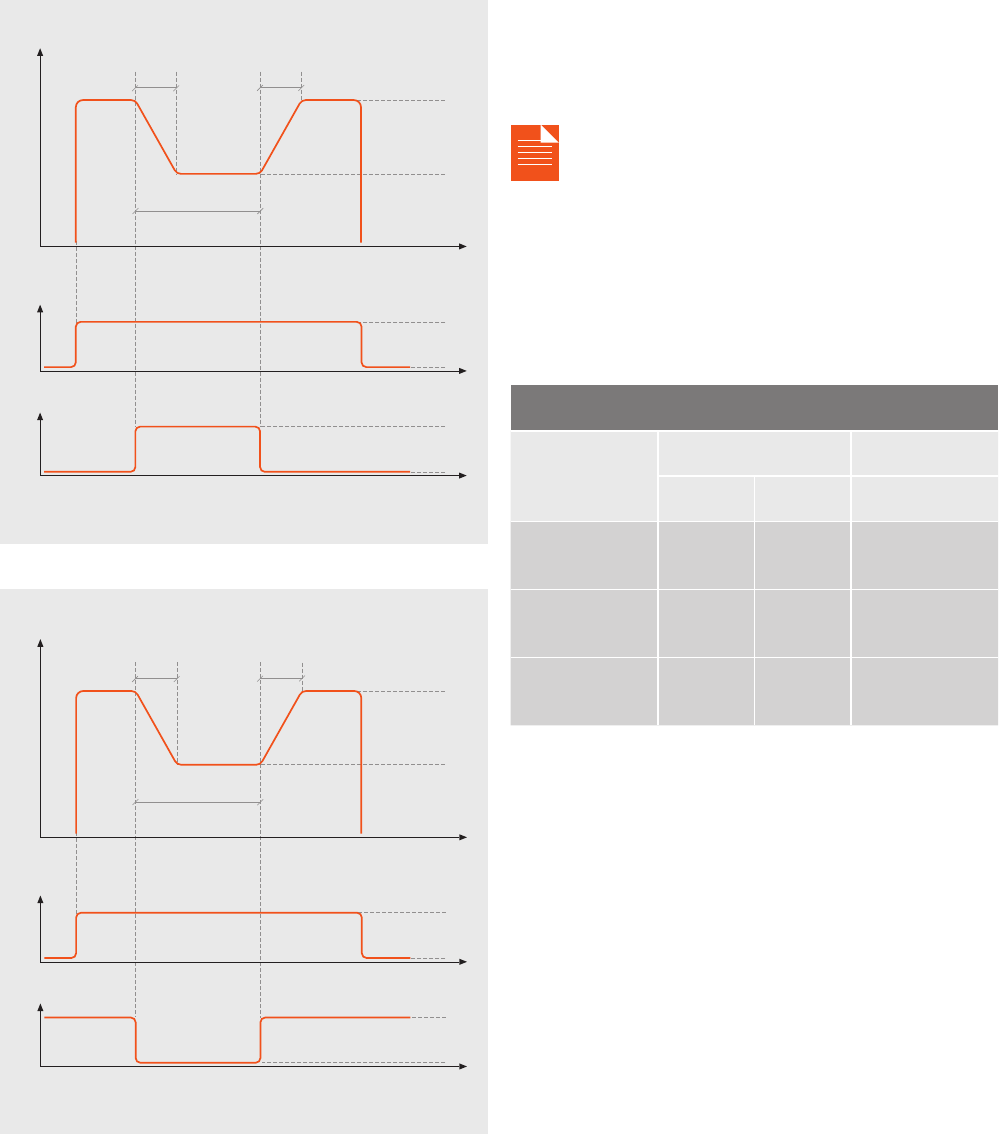

Figure 19: StepDIM behavior – “StepDIM/DALI” mode (factory settings).
Figure 20: StepDIM inverse behavior – “StepDIM inverse/DALI” mode.
Table 6: StepDIM operating modes
Operating mode
SD control state Note
HIGH LOW
AstroDIM/
StepDIM/DALI
(wiring selection)
Dim level Power-on level
Figure 19 – factory set-
tings
StepDIM/DALI Dim level Power-on level
Figure 19 – setting via
3DIM Tool
StepDIM inverse/DALI Power-on level Dim level
Figure 20 – setting via
3DIM Tool
Dim duration
Dim duration
Power-on level
Power-on level
Dim level
Dim level
ON
ON
HIGH
HIGH
OFF
OFF
LOW
LOW
Time (h)
Time (h)
Time (h)
Time (h)
Time (h)
Time (h)
Fade
time
Fade
time
Fade
time
Fade
time
Power (%)Power (%) MainsMains SD stateSD state
