2. Press YES. All data in the volume will be removed.

Advance Option

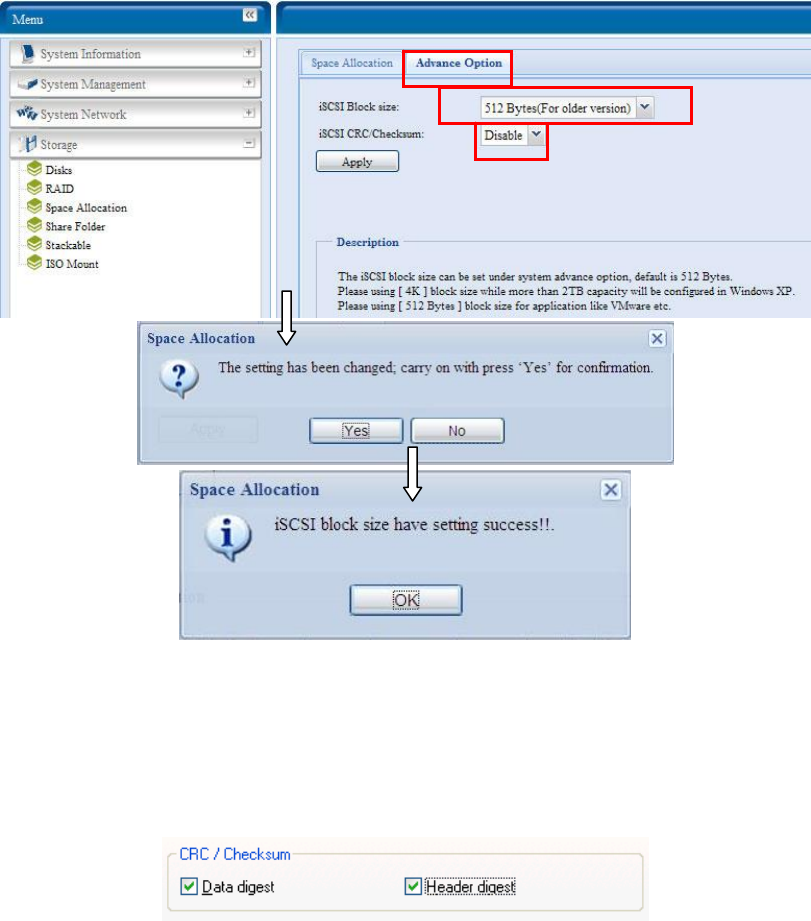

There are 2 options is currently allow Admin to Enable/Disable to operate N7700SAS

associated with iSCSI setting. The details as listed in following screenshot. With the

option changed, it will need to reboot system to activate.

iSCSI Block Size

Select the block size with 4K while the iSCSI volume size is over 2TB.

iSCSI CRC/Checksum

To enable this option, the initiator can connect with “Data digest” and “Header

digest” enabled.

Share Folder

From the Storage menu, choose Share Folder, and the Folder screen appears.

This screen allows you to create and configure folders on the N7700SAS volume.
