Allocating Space for iSCSI Volume

To allocate space for an iSCSI volume on the current RAID volume, follow the steps

below:

1. Under the Volume Allocation List, click iSCSI Target.

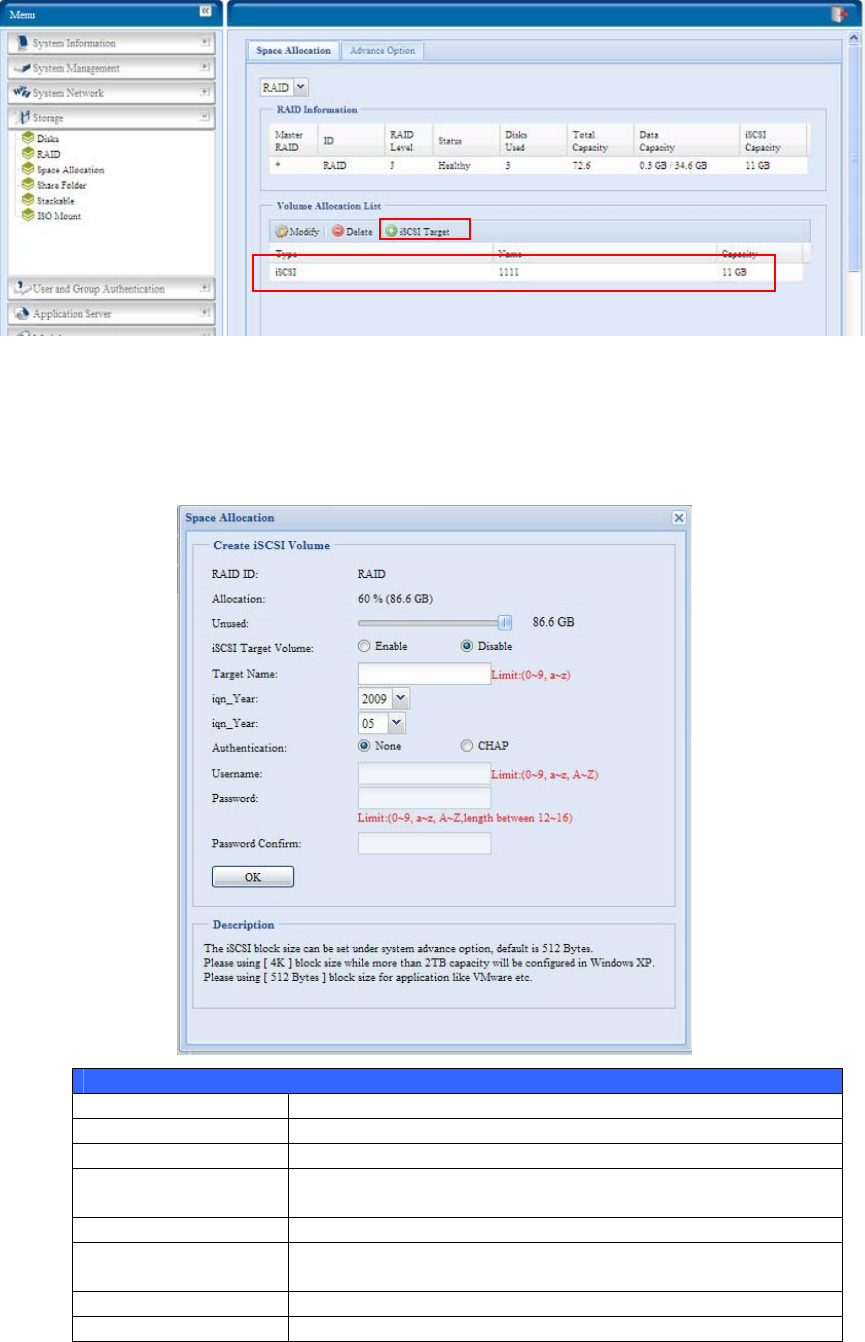

The Create iSCSI Volume screen appears.

Create iSCSI Volume

Item Description

RAID ID ID of current RAID volume.

Allocation Percentage and amount of space allocated to iSCSI volume.

Unused Percentage and amount of unused space on current RAID

volume.

iSCSI Target Volume Enable or Disable the iSCSI Target Volume.

Target Name Name of the iSCSI Target. This name will be used by the

Stackable NAS function to identify this export share.

Year Select the current year from the dropdown.

Authentication You may choose CHAP authentication or choose None.
