Temperature.

Green: Systematic temperature is normal.

Red: Systematic temperature is unusual.

Click to go to System Status page as short cut.

Network.

Green: Connection to network is normal.

Red: abnormal connection to the network

Logout

Click to logout Web Administration Interface.

Language Selection

The N7700SAS supports multiple languages, including:

• English

• Japanese

• Traditional Chinese

• Simplified Chinese

• French

• German

• Italian

• Korean

• Spanish

• Russia

• Polish

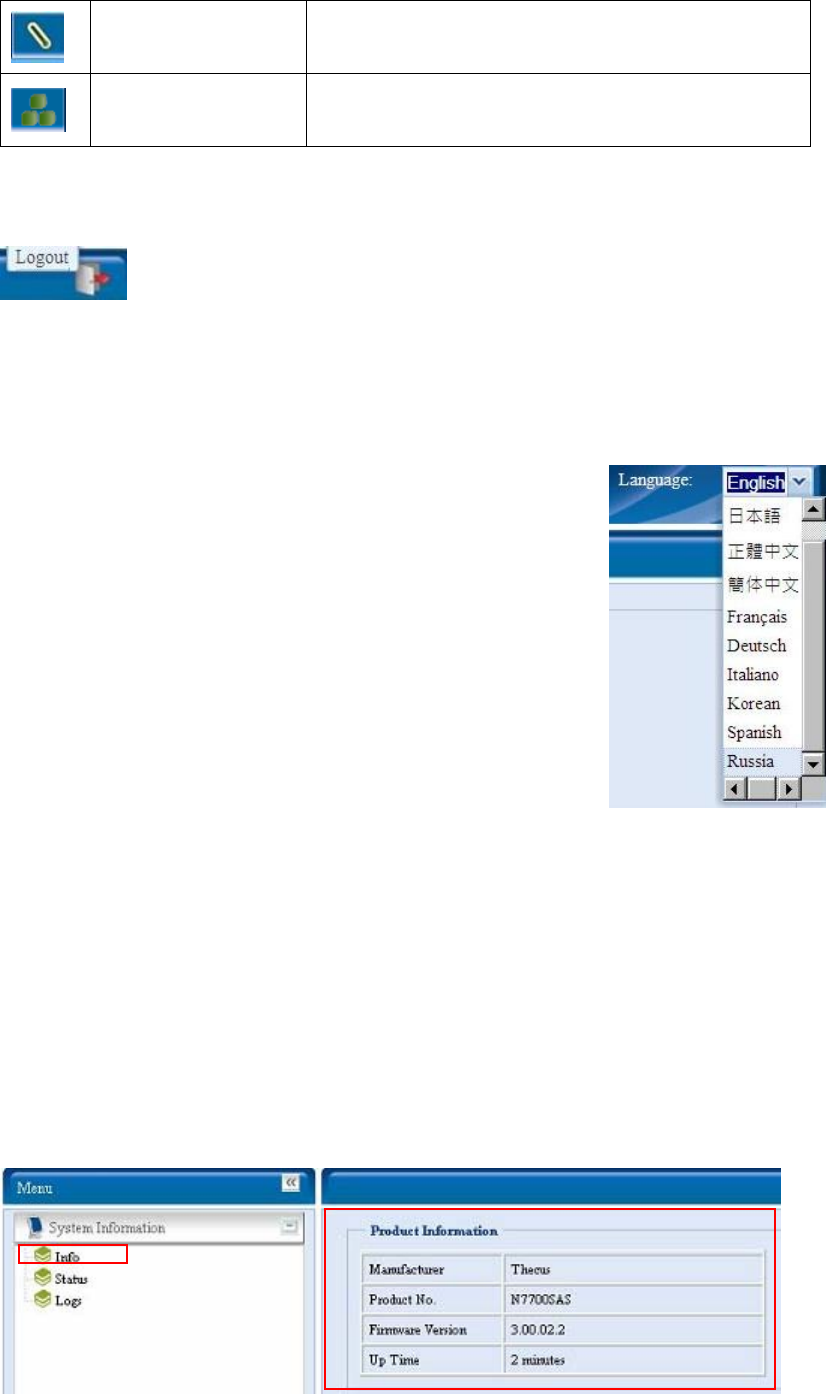

On the menu bar, click Language and the selection list

appears. This user interface will switch to selected

language for the N7700SAS.

System Information

Information provides viewing on current Product info, System Status, Service

Status and Logs.

The menu bar allows you to see various aspects of the N7700SAS. From here, you

can discover the status of the N7700SAS, and also other details.

Product Information

Once you login, you will first see the basic Product Information screen providing

Manufacturer, Product No., Firmware Version, and System Up Time

information.
