Chapter 8: Revision updated (FW 3.00.03 to 3.00.04)

What’s New

There are additional features implemented into the new 3.00.04 version firmware.

RAID Expansion for iSCSI Target Volume

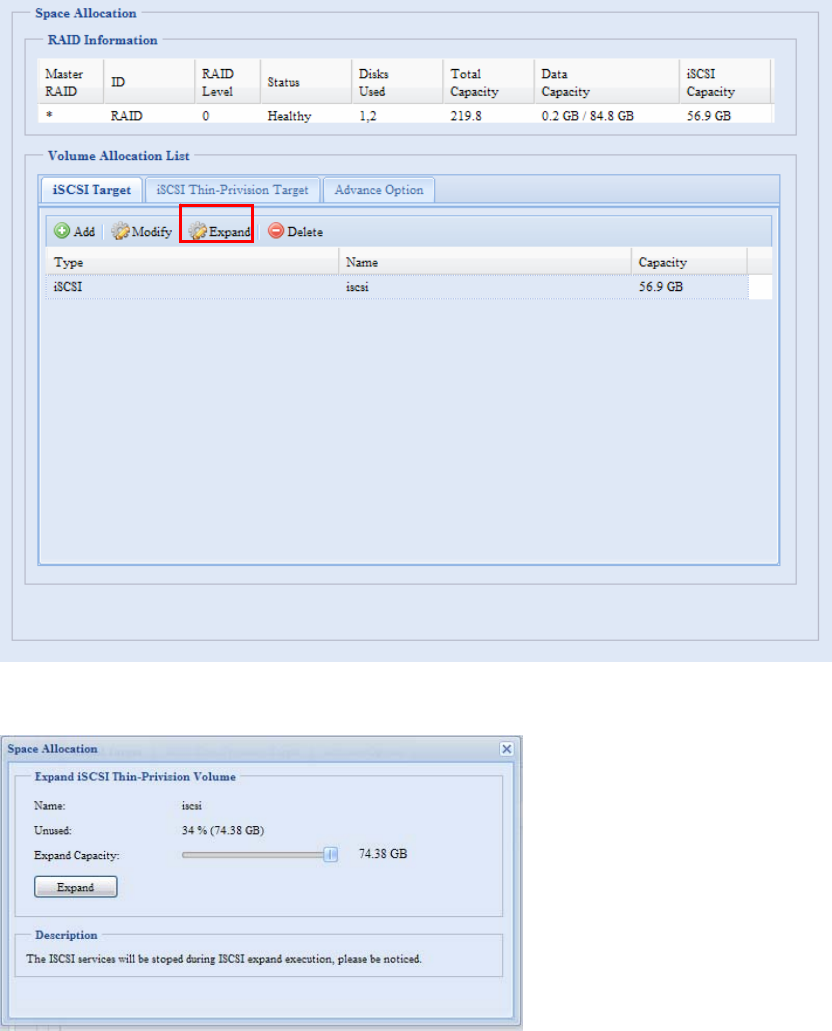

First, the iSCSI volume is now able to expand its capacity from unused space. From

the volume list, simply select the iSCSI volume you like to expand and click the

Expand button:

You will then see the dialog box displayed below. Drag the Expand Capacity bar to

the size you want. Then press Expand to confirm the operation.
